Description

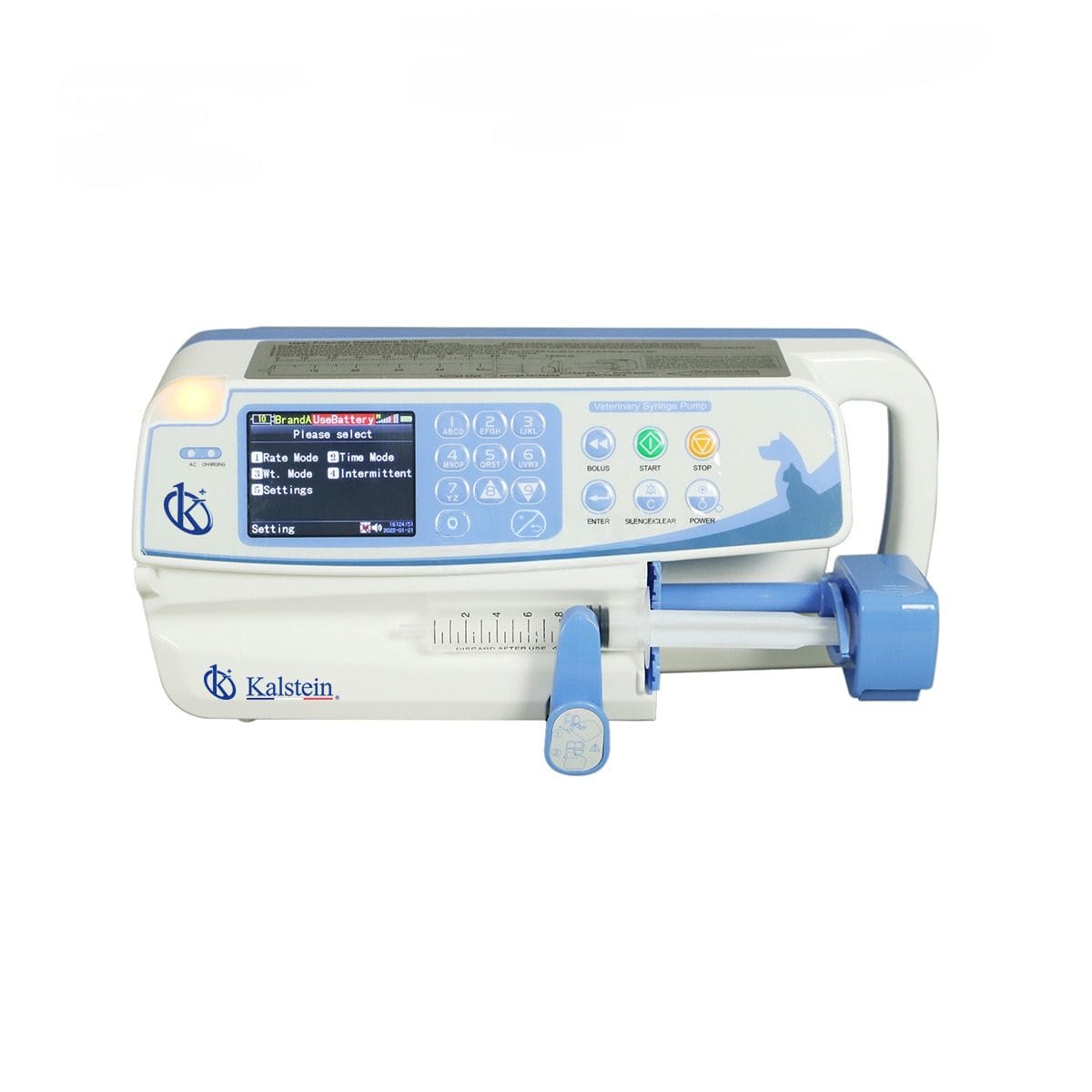

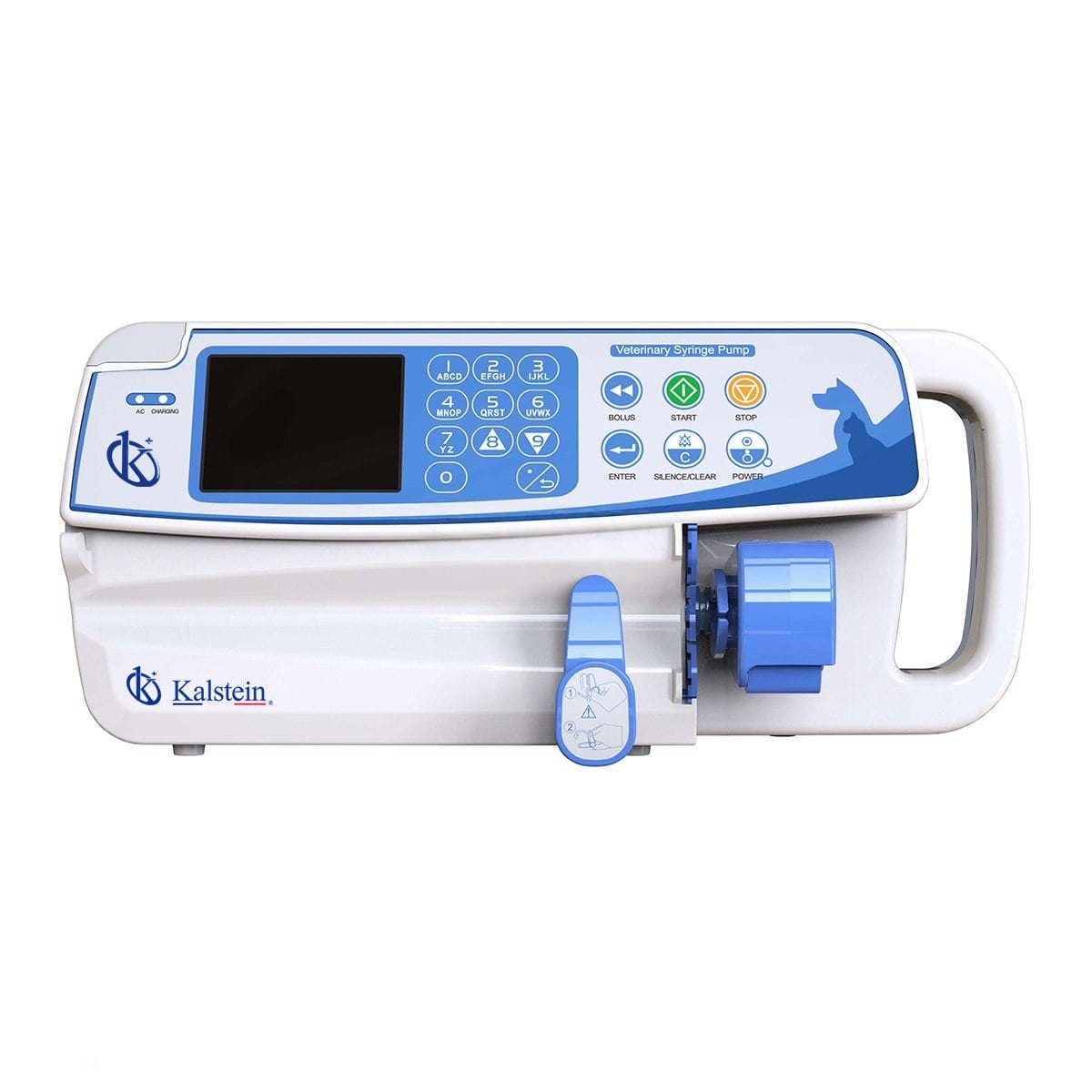

The Veterinary Syringe Pump YR06185 is an advanced infusion system designed to provide precision and safety in the delivery of fluids and medications for veterinary applications. Featuring a large and colorful LCD display, this syringe pump offers clear visibility of essential parameters. It is equipped with intelligent syringe recognition technology that ensures accurate infusion rates. The device supports various infusion modes, including dose, time, and rate modes, making it versatile for different veterinary needs. With features like double CPU for enhanced safety, anti-bolus function, and a 90-degree rotatable pole clamp, the YR06185 is both functional and user-friendly. Additionally, it incorporates adjustable alarms and a dynamic pressure display to alert attendants immediately of any deviations in infusion delivery.
Market Price
The market price for veterinary syringe pumps like the YR06185 typically ranges between 800 USD and 1300 USD. This variation depends on the features and specifications offered by different manufacturers. With its high-end features and reliability, the YR06185 stands out as a competitive option in this price bracket.
Frequently Asked Questions
What syringes are compatible with the YR06185?
The YR06185 is compatible with various brands of sterile syringes, ranging from 5ml to 60ml.
Is the YR06185 suitable for all veterinary practices?
Yes, the YR06185 is designed for flexibility and can be used in various veterinary settings, including clinics and hospitals.
How long does the battery last?
The rechargeable battery can operate for more than 12 hours after a full charge at a 5ml/h rate.
Advantages and Disadvantages
Advantages: The YR06185 offers precise control over infusion rates and volumes, ensures safety with its various alarms, and is compatible with multiple syringe sizes. Its compact design and ease of use are also notable advantages.
Disadvantages: As with any advanced medical device, the YR06185 can require proper training to use effectively, and it may entail a higher upfront cost compared to basic syringe pumps.
Use of the Product in the Field
The YR06185 is extensively used in veterinary clinics for administering intravenous medications and fluids to animals of different sizes. Its versatility allows veterinarians to customize infusion settings based on the specific treatment requirements, ensuring that animals receive the precise amounts they need.
Recommendations
To maximize the efficiency of the YR06185, ensure that the device is regularly calibrated and serviced. User manuals and manufacturer guidelines should be followed closely to maintain optimal performance. For practices looking to streamline their infusion processes, considering an upgrade to this reliable and feature-rich pump might be beneficial.
Features
– Large & Colorful LCD display
– History records
– 90-degree rotatable pole clamp
– Unique syringe intelligent recognition technology
– Dynamically display the pressure
– Double CPU ensuring safe infusion
– RS232 interface
– Adjustable buzzer volume
– Anti-bolus function
– Various visual and audible alarms
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
