Veterinary Handheld Slit Lamp (2-Magnification) YR06199

ManufacturerKalstein

Description

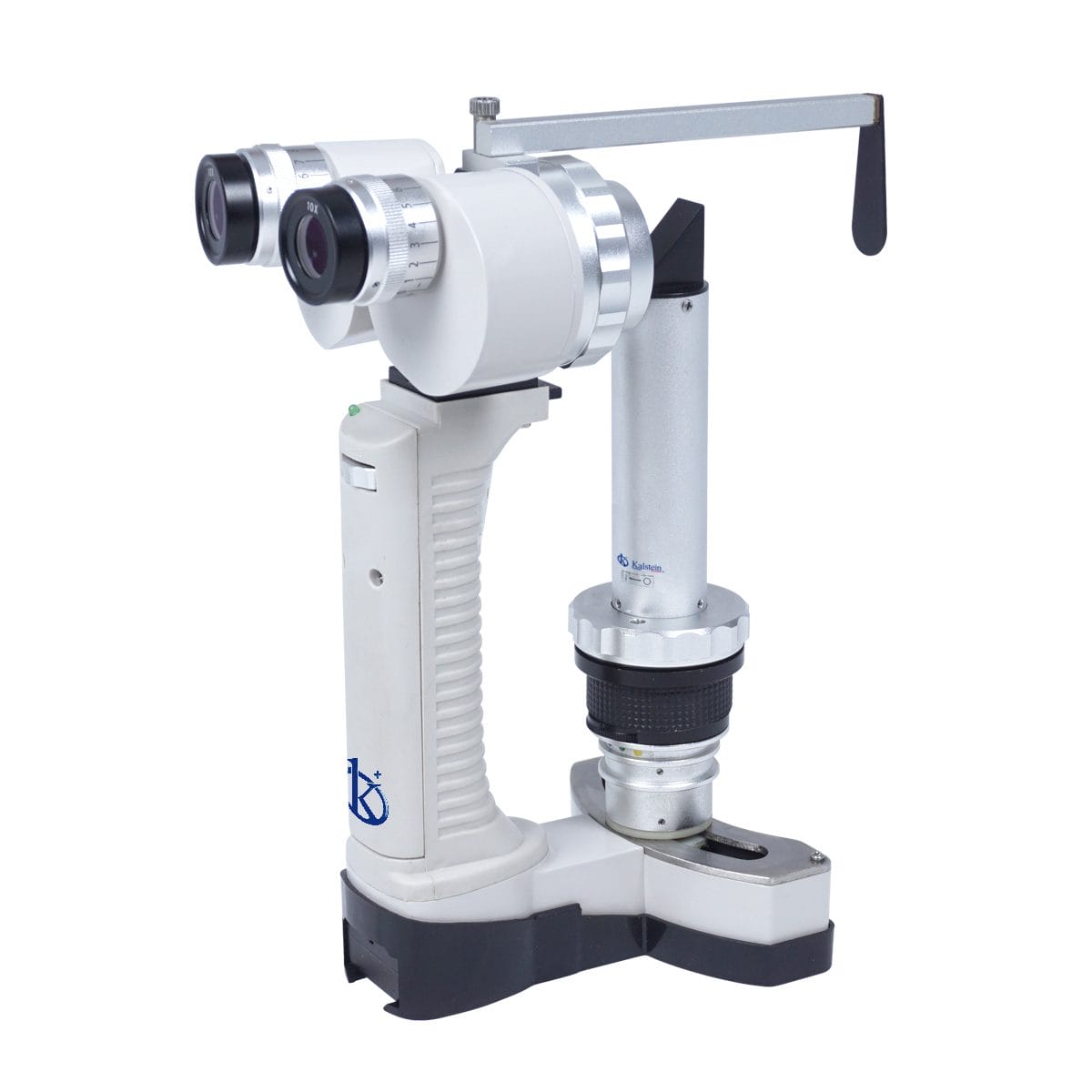

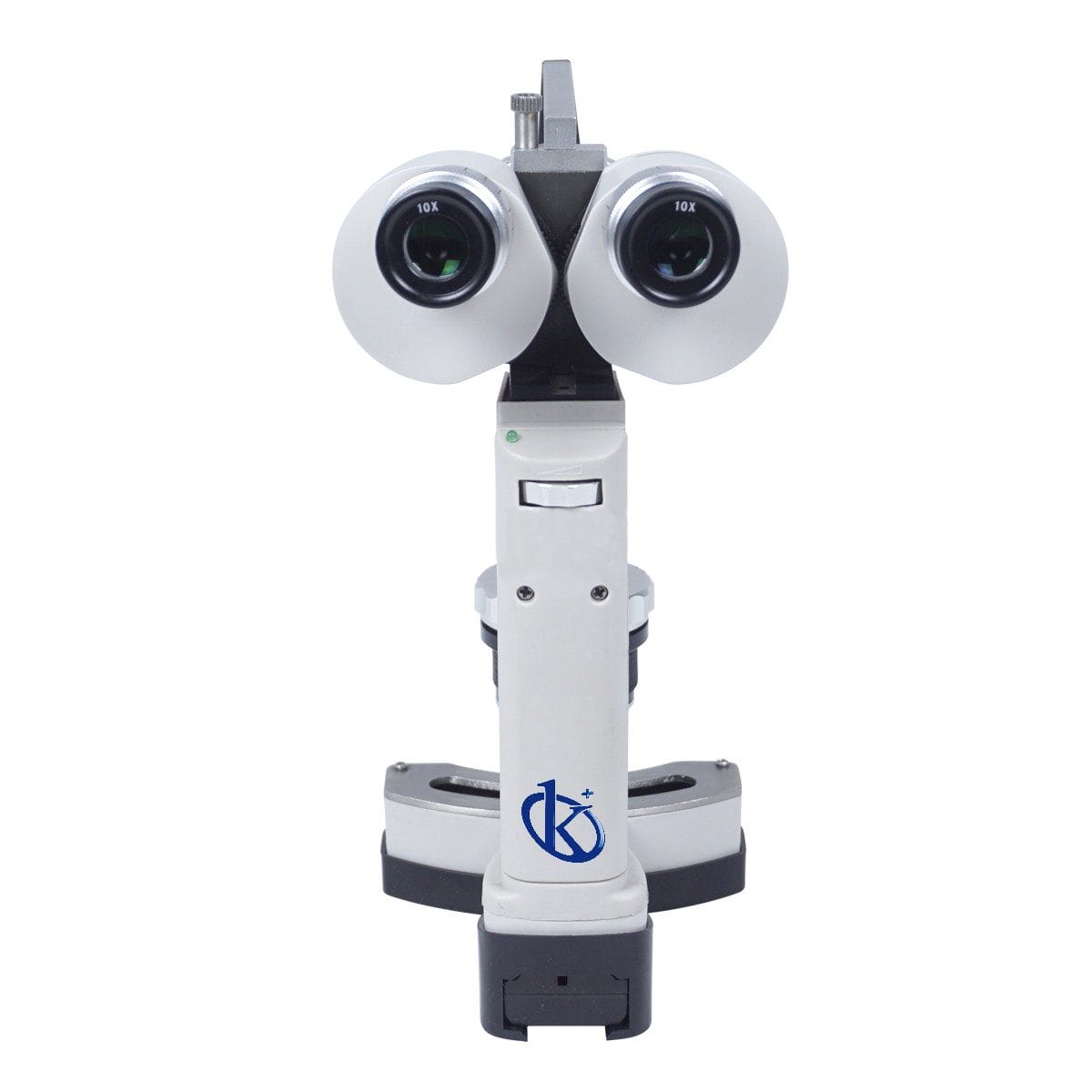

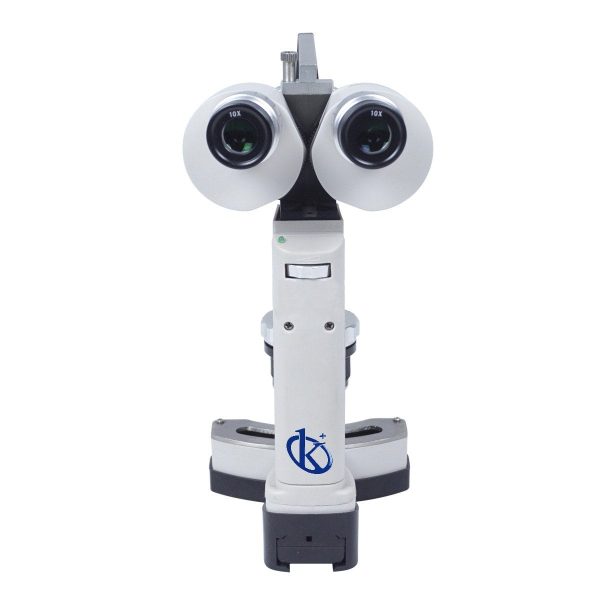

The Veterinary Handheld Slit Lamp (2-Magnification) YR06199 is a state-of-the-art portable device ideal for veterinary professionals. This lamp boasts a high-brightness LED with a cold-light illuminator, delivering up to 15000 LUX, ensuring a service life of more than 50,000 hours. Its flexibility in usage is enhanced by its lightweight design, weighing only 700g, including the battery. With features such as a telescopic forehead-rest and a continuously adjustable slit width, it provides ease of observation and optimal adjustment of the diopter. The unit operates on battery power, providing 5-6 hours of continuous usage, making it perfect for fieldwork without dependency on external power sources.

Market Price

The Veterinary Handheld Slit Lamp is competitively priced in the market. The average cost for such advanced equipment ranges from approximately $3000 to $3700, providing excellent value given its extensive features and capabilities. Buyers can expect to invest in precision and durability, ensuring long-term performance in various veterinary settings.

Frequently Asked Questions

Q: How many magnification options does the slit lamp offer?

A: The lamp provides two magnification options, 10X and 16X, which are easily adjustable to suit different examination needs.

Q: Is the battery rechargeable, and how long does it last?

A: Yes, it features a rechargeable Li-ion battery that offers 5-6 hours of continuous use.

Advantages and Disadvantages

One of the main advantages of this product is its portability and ease of use, making it ideal for field examinations. Its bright LED illumination ensures clear visibility. However, a potential disadvantage may be its reliance on battery life, which though sufficient for most tasks, could require careful monitoring during prolonged use.

Usage in the Field

This handheld slit lamp is designed for examining animals in various environments, from clinics to outdoor settings. Its adjustable magnification and filter options enable veterinarians to conduct thorough eye examinations, diagnose eye conditions, and provide appropriate treatments quickly and efficiently.

Recommendations

For optimal performance of the Veterinary Handheld Slit Lamp, it is recommended to ensure the battery is fully charged before usage. Regular cleaning of the lens and other components will maintain the clarity and functionality of the device. Consider storing it in a protective case to avoid any damage during transportation.

Features

  • High-brightness, cold-light illuminator
  • Adjustable slit width
  • Telescopic forehead-rest
  • Revolvable objective lens for magnification adjustment
  • Diverse filter options including heat and light-reducing filters

Technical Specifications

Model Item YR06199
Microscope
Microscope Type Converging
Objective Lens 1.0X、1.6X
Eyepiece 10X
Total Magnifications 10X、16X
Working Distance 81mm
Intraocular Distance 45mm―78mm
Diopter Adjustment -8D―+8D
Illumination
Slit Width 0―12mm Continuous
Slit Height 1-12mm
Slit Angle ф0.2mm,ф1mm,ф5mm,ф12mm
Filters Heat Absorption; Yellow; Redfree(Green); Cobalt Blue
Illumination Bulb High-Brightness White LED
Brightness ≥30000Lux
Power
LED Working Voltage d. c. 3 V
Battery Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously
Weight and Dimension
Dimension 169.5mm×109.5mm×228.5mm
Weight ≤4kg (Including Battery)

Additional information

Weight 5 kg
