Description

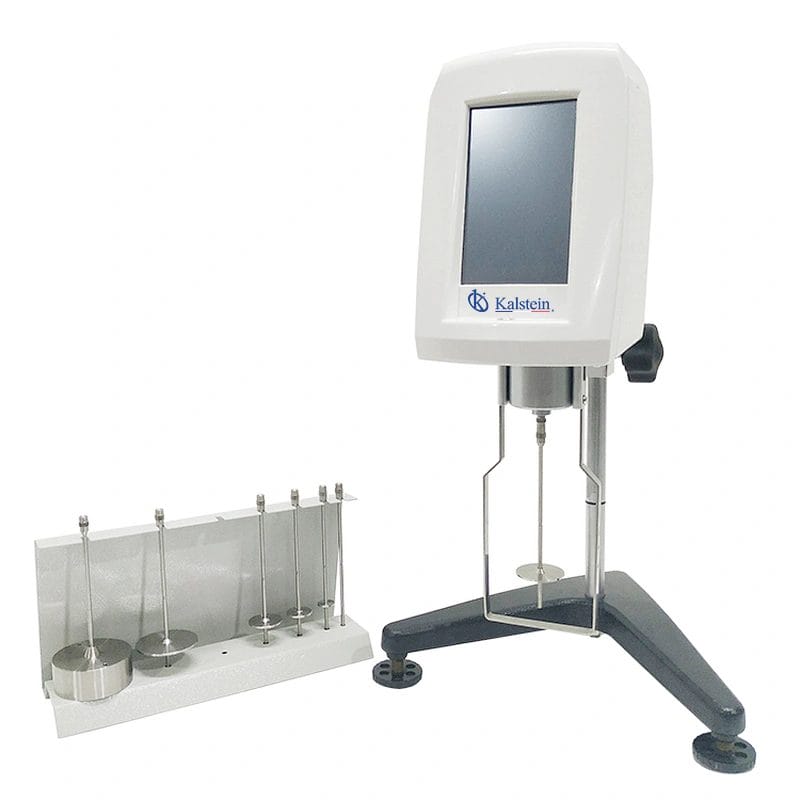

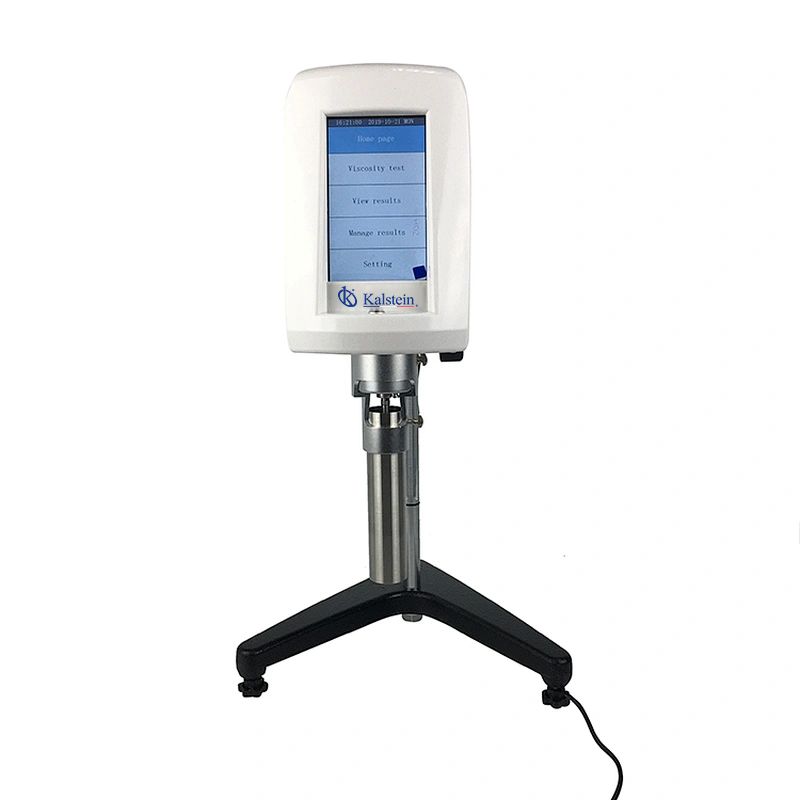

The Touch Screen Brookfield Viscometer YR05858 – YR05859 offers the perfect fusion of cutting-edge touchscreen technology and precision in viscosity measurements. This advanced viscometer allows step-less debugging and can efficiently measure even the highest viscosity samples. Equipped with a 5-inch color touch screen, it provides a comprehensive, intuitive display of numerous parameters and working conditions. Its application spans across diverse industries including paint, cosmetics, ink, pulp, food, and biotech products, making it a versatile choice for professionals requiring precise viscosity analysis.
Market Price
Viscometers of this caliber generally range between $4,000 to $5,200 in the market. This pricing reflects the combination of its advanced technology and its capability to deliver precise results, thus providing excellent value for industries that rely on consistent viscosity measurements. To learn more about our current pricing and available discounts, you can request a quote or generate an automatic quotation via Kalstein Plus.
Frequently Asked Questions
- What is the maximum viscosity measurement of the YR05858 model? The YR05858 model can measure viscosities up to 2,000,000 mPa.s with the standard rotors.
- Are there any optional accessories available? Yes, optional accessories include ultra-low viscosity adapters, temperature sensors, thermostat baths, and more, to customize your measurement needs.
- What operating system does it use? The viscometer employs ARM technology with a built-in Linux operating system for swift and seamless operation.
Advantages and Disadvantages
The Touch Screen Brookfield Viscometer YR05858 – YR05859 boasts numerous advantages including high measuring precision, stable rotational speed, and strong anti-interference performance. Its intuitive touchscreen interface simplifies operation and data interpretation. However, potential buyers should consider the initial investment cost and the need for periodic calibration to maintain accuracy.
Product Use in the Field
This viscometer is crucial in fields requiring precise control and understanding of fluid viscosities, such as in the formulation of paints and coatings, the quality control of food products, or the testing of cosmetic products. Its versatile speed options and rotor combinations allow it to adapt to various sample types, providing reliable data critical for production and quality assurance processes.
Recommendations
To maximize the lifespan and accuracy of your viscometer, regular calibration and maintenance are recommended. Users should follow the user’s manual for guidance on proper handling and care. Additionally, leveraging the optional PC software can enhance data management and analysis capabilities, providing comprehensive insights into shear rate and viscosity curves.
Features
- ARM technology with a built-in Linux system for streamlined testing processes.
- Automatic calibration for enhanced accuracy.
- Comprehensive display includes viscosity, temperature, shear rate, and more.
- Real-time viscosity curve displays for immediate data interpretation.
- Optional wide-range Pt100 temperature probe for extensive temperature measurements.
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed , a total of 998 speed options | |
| Measuring Range | Rotor 1- 4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 – 10000 Rotor 25: 480 – 1.60000000 Rotor 31: 30 – 100000 Rotor 34: 20 – 200000 |
Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
| Rotor | L1 – L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional)） |
|
| Sample Dosage | Rotor 1- 4: 300 – 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml( K = 1000; M = 1000000 ) |
|
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V , 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
