Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

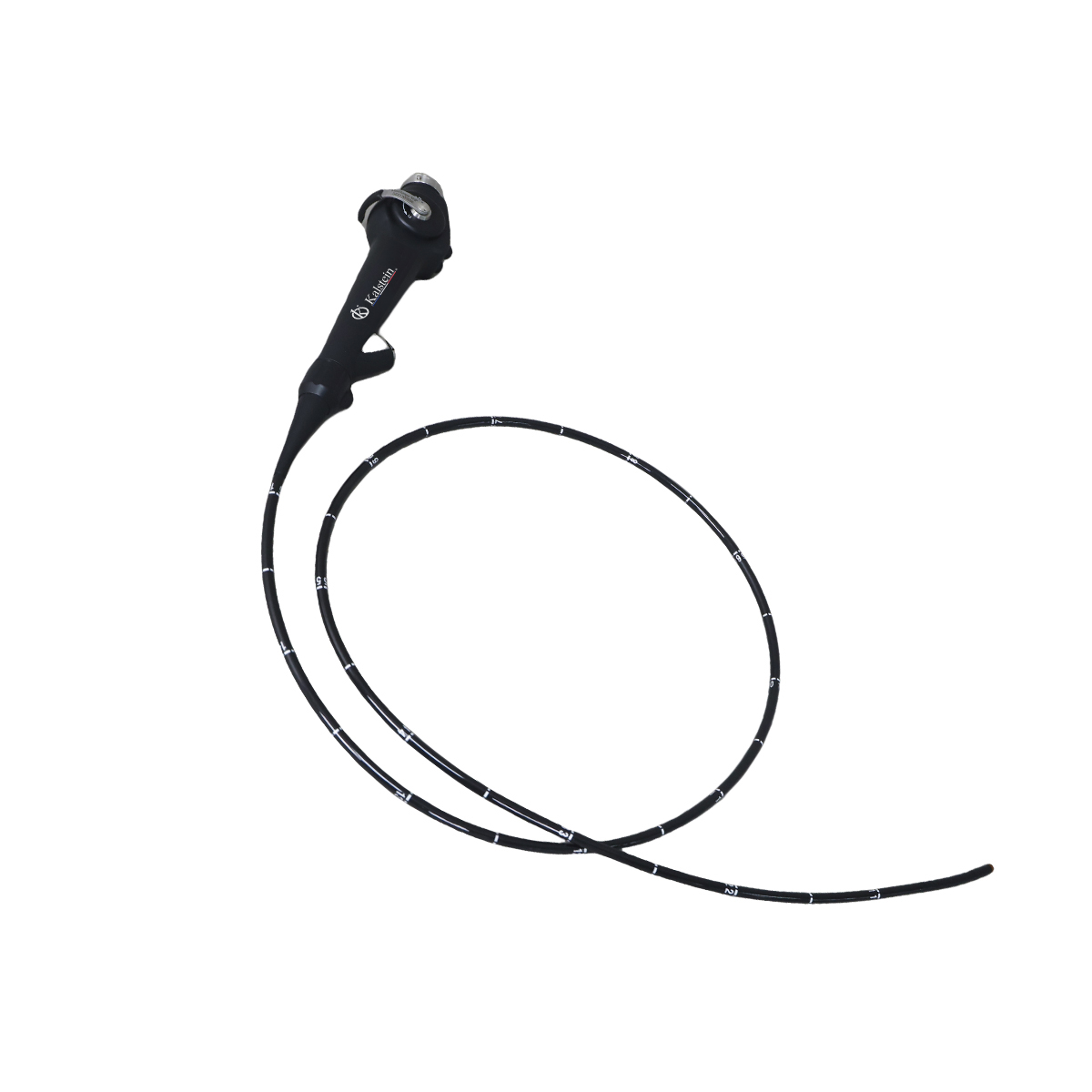

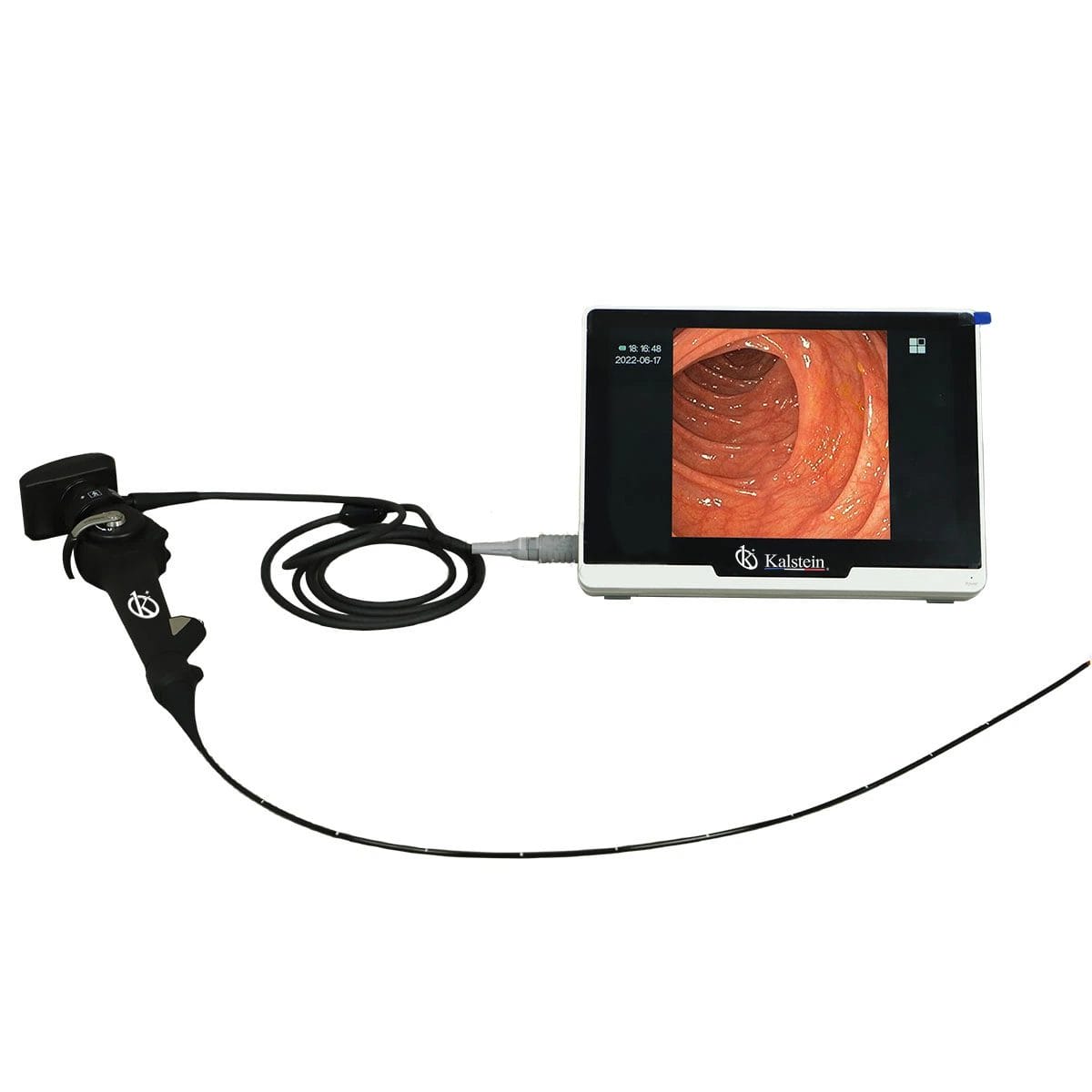

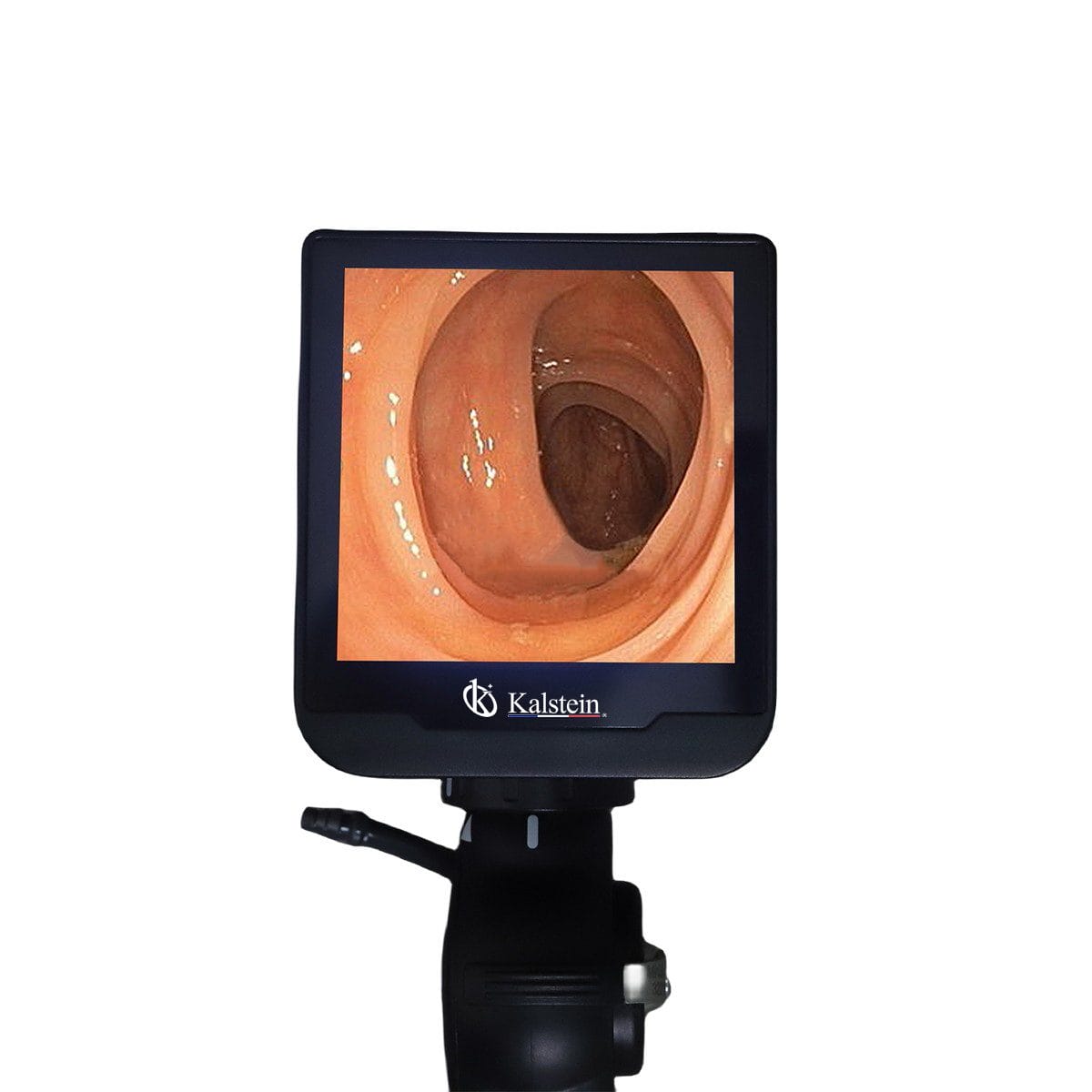

The Portable Veterinary Video Endoscope YR06151//YR06155 is a cutting-edge tool designed to assist veterinarians with essential diagnostic procedures. With its high-resolution CMOS sensor, this endoscope provides crystal clear images in real-time, ensuring there is no transfer delay during the operation. Equipped with a durable LED light source, it offers optimal illumination to examine even the most challenging areas. The multifunction handle is ergonomically designed, allowing veterinarians to operate it single-handedly with ease. The endoscope offers versatile four-directional observation, ensuring comprehensive views with up/down bending and left/right rotating capabilities. Its 180° rotatable video adapter cable ensures that there are no blockages while in use. Ideal for procedures such as bronchoscopy, rhinoscopy, lung depth detection, and urethral and bladder examinations, this device broadens the diagnostic capabilities for various veterinary applications.

Market Price

The average market price for portable veterinary video endoscopes of this caliber ranges from USD 11,700 to USD 12,500. This range reflects the high-quality and advanced technology of the product, aligning with industry standards for similar devices. Investing in this device not only guarantees state-of-the-art performance but also provides long-term value for veterinary practices.

Frequently Asked Questions

What animals can be scoped using this endoscope? The YR06151//YR06155 models are versatile and can be used on a variety of animals, including small pets like cats and dogs, as well as larger animals in agricultural settings.

Is this product easy to clean and maintain? Yes, the design of the device ensures straightforward cleaning and maintenance. It is recommended to follow the manufacturer’s instructions for optimal care.

Advantages and Disadvantages

This endoscope offers numerous advantages such as high-definition imaging, real-time display, and a user-friendly interface, making diagnostics much more efficient. However, a potential disadvantage might be the initial investment cost, which could be higher for smaller veterinary clinics. Nonetheless, the benefit of accurate diagnostics often outweighs the cost considerations.

Product Use in the Field

In practical scenarios, veterinarians utilize the Portable Veterinary Video Endoscope for in-depth examinations of animal respiratory and digestive systems. Whether assessing the bronchial pathways or conducting a thorough rhinoscopy, this device provides precise insights that guide effective treatment plans. Its compact and portable nature allows for field use, making it ideal for emergency situations or routine check-ups outside the clinic.

Recommendations

To gain the most benefit from the YR06151//YR06155 endoscopic devices, it is recommended to undergo a brief training session, highlighting the device’s functionalities and maintenance requirements. Regular calibration and prompt replacements of worn parts can extend the lifespan of the device and ensure consistent performance.

Features

  • High-resolution CMOS sensor for clear images
  • Durable LED light source for optimal illumination
  • Multifunction handle with photo/video/freeze/zoom capabilities
  • Four-direction observation capabilities
  • Rotatable 180° video adapter cable
  • Wide range of veterinary applications

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D) 120° (R), 120° (L) 10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D) 120° (R), 120° (L) 10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D) 120° (R), 120° (L) 10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D) 120° (R), 120° (L) 10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D) 120° (R), 120° (L) 4-inch

Additional information

Weight N/A
Model

YR06151, YR06152, YR06153, YR06154, YR05155
