Patient Monitors YR02176

Description

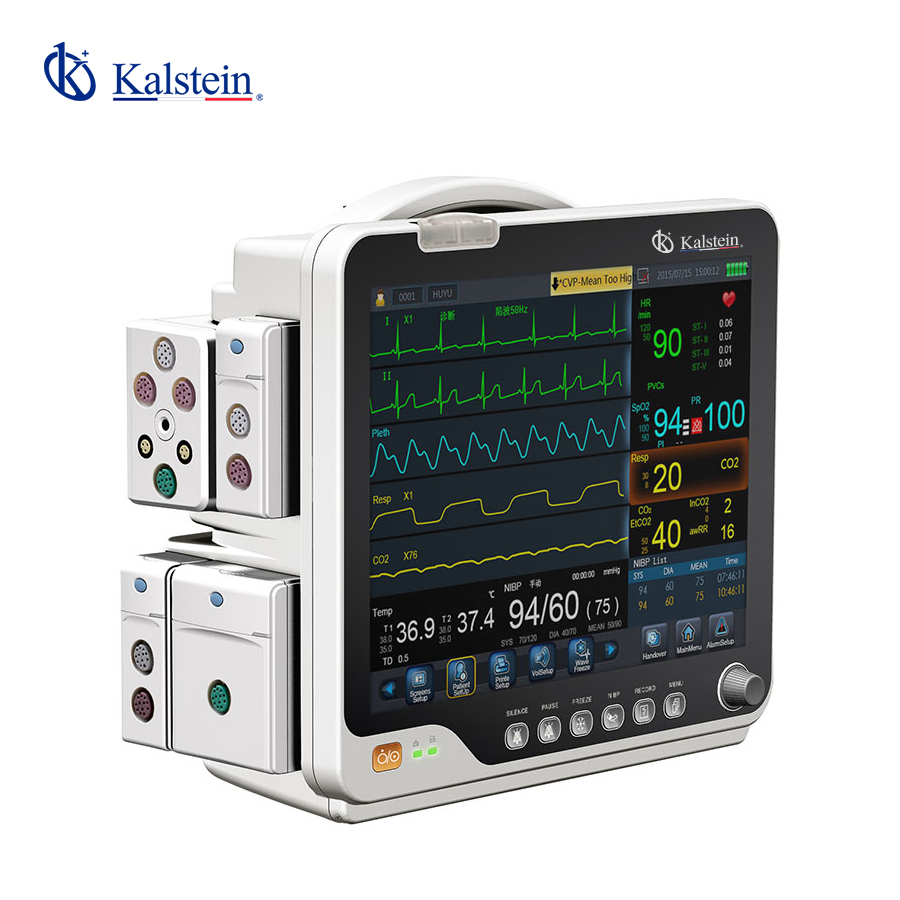

The Patient Monitors YR02176 offers advanced monitoring capabilities in a streamlined design. Featuring a 15-inch LCD screen and full modular parameters, this patient monitor is versatile enough for use in both Operating Theaters (OT) and Intensive Care Units (ICU). With standard features like ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, and options for advanced monitoring techniques, it’s designed to meet the diverse needs of healthcare professionals.

Market Price Overview

Patient monitors like the YR02176 typically range in price due to their capabilities and advanced features. The market generally sees prices around $4200 to $5000 for similar models. This range represents the cost associated with the sophisticated technology embedded in such devices, ensuring reliable performance and accurate patient data monitoring.

Frequently Asked Questions

What types of environments is the YR02176 suitable for? The monitor is ideal for both Operating Theaters (OT) and Intensive Care Units (ICU) due to its comprehensive monitoring capabilities.

Is the monitor customizable? Yes, it offers optional features such as Masimo/Nellcor SpO2, Dual-IBP, and various ECG leads, among others, making it highly adaptable to specific healthcare requirements.

Advantages and Disadvantages

Advantages: The YR02176 monitor stands out with its modular design, extensive parameter monitoring, and user-friendly interface. These features support accurate and efficient patient monitoring, crucial in critical care settings.

Disadvantages: As with any advanced technology, there is a learning curve associated with maximizing the utilization of all features. Furthermore, the initial investment may be higher compared to basic models.

Field Use Application

In practical scenarios, the YR02176 patient monitor is utilized for continuous monitoring of vital signs, both in surgery and ICU departments. Its modular setup allows healthcare providers to adapt the monitoring setup to the patient’s specific needs, enhancing patient care and clinical outcomes.

Recommendations

To maximize the potential of the Patient Monitors YR02176, ensure regular maintenance checks and staff training on its features and updates. Leveraging the full range of available options can optimize monitoring for various patient conditions.

Key Features

15-inch LCD screen
ECG, SPO2, TEMP, NIBP, RESP, PR/HR standard parameters
Comprehensive optional features like Dual-IBP, AG, C.O., and BIS
User-friendly interface for ease of operation

Technical Specifications

Model		YR02176
ECG	Lead mode	5 Leads(RA,LA,LL,RL,V)
	Connection method	I, II, III,AVR,AVL,AVF,V
	Lead Mode	3 Leads (RA,LA,LL)
	Connection method	I, II,III
	Waveform	1ch
	Gain	x250, x500, x1000, x2000
	HR Range	Adult: 15~300bpm
	Neo/Ped	15~350bpm
	Accuracy	±1% or ±1bpm
	Resolution	1bpm
	Sensitivity	>200(uVp-p)
	Differential input impedance	≥5MΩ
	ST segment Monitoring Range
	Measure Range	-2.0~+2.0mV
	Measure Accuracy	-0.8mV~+0.8mV
Heart Rate	Measuring range	20~300bpm
	Accuracy	±1bpm
	Resolution	1bpm
	Sensitivity	>200UVp-p
Respiration	Method	Impedance between R-F(RA-LL)
	Differential Input Impedance	>2.5MΩ
	Measuring Impedance Range	0.3~3.0 MΩ
	Base line Impedance Range	200~4000Ω
	Bandwidth	0.1~2.5Hz
	Resp. Rate	Adult: 2~120BrPM
	Neo/Ped	0~150BrPM
	Resolution	1 BrPM
	Accuracy	±2 BrPM
	Alarm	10~40S
NIBP	Method	Oscillometric
	Mode	Manual/Auto/STAT
	Measuring Interval in AUTO Mode	1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
	Measuring Period in STAT Mode	5 Min
	Pulse Rate Range	40~240bpm
	Alarm Type	SYS, DIA, MEAN
	Resolution
	Pressure	1mmHg
	Accuracy	Maximum Mean error: 5mmHg
	Maximum Standard deviation	8mmHg
SPO2	Display	Number of SPO2,waveform of capacity,Pulse
	Measuring range	0~100%
	Resolution	1%
	Accuracy	70~100% (±2%)
	Alarm system	Audio-video alarm
	Pulse rate range	0~300bpm
TEMP	Channel	2
	Measuring and Alarm Range	0~50ºC
	Resolution	0.1ºC
	Accuracy	0.1ºC
	Actualization interval	about 1 Second.
	Average Time Constant	<10 Second.

Additional information

Weight	7 kg
