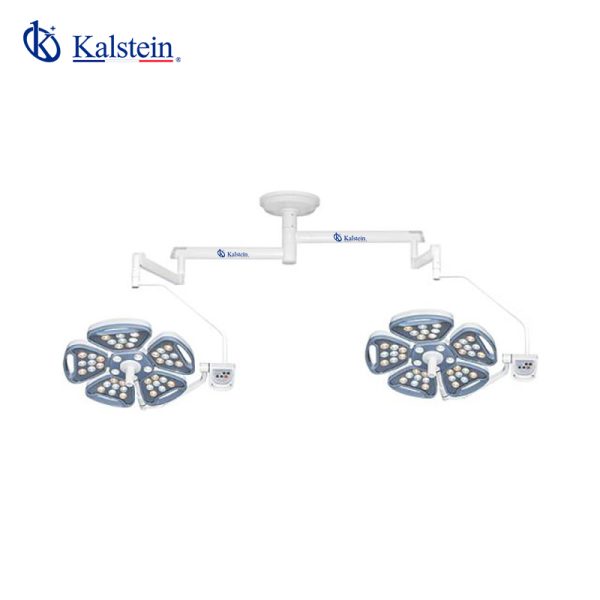

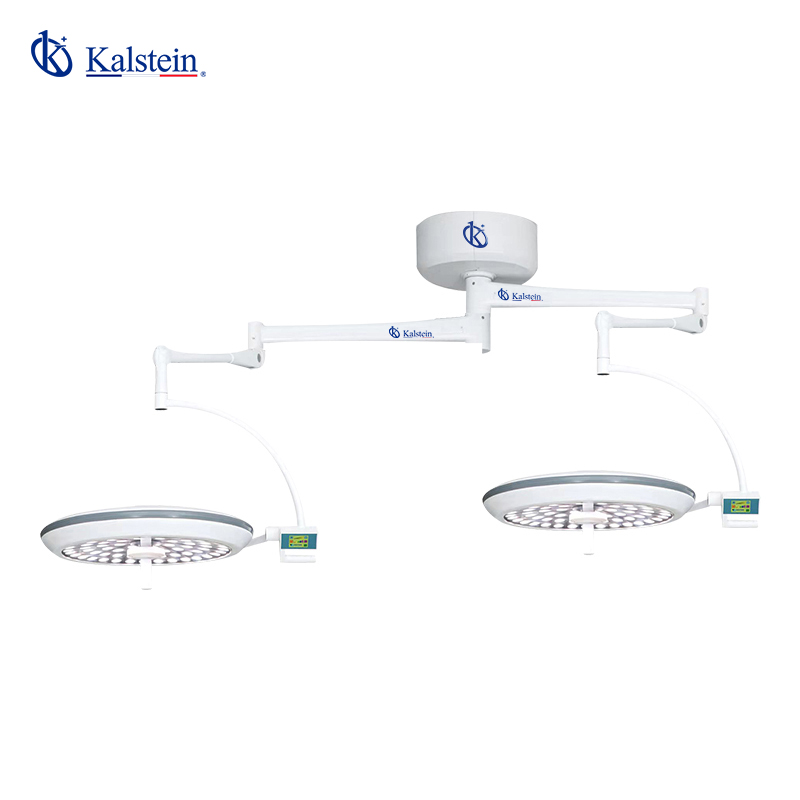

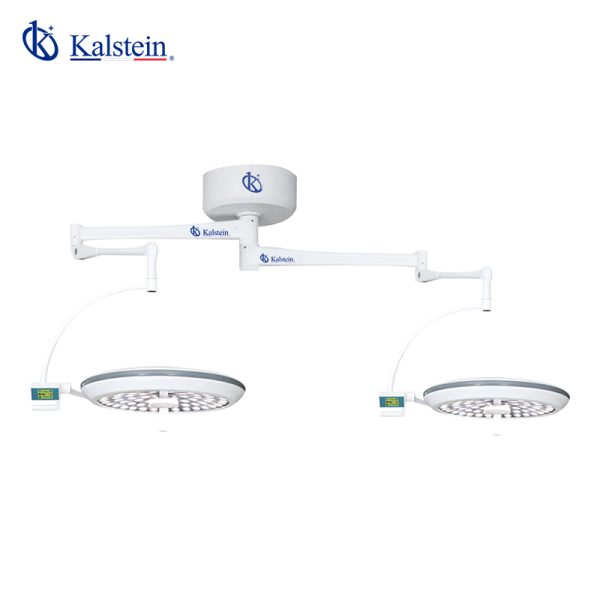

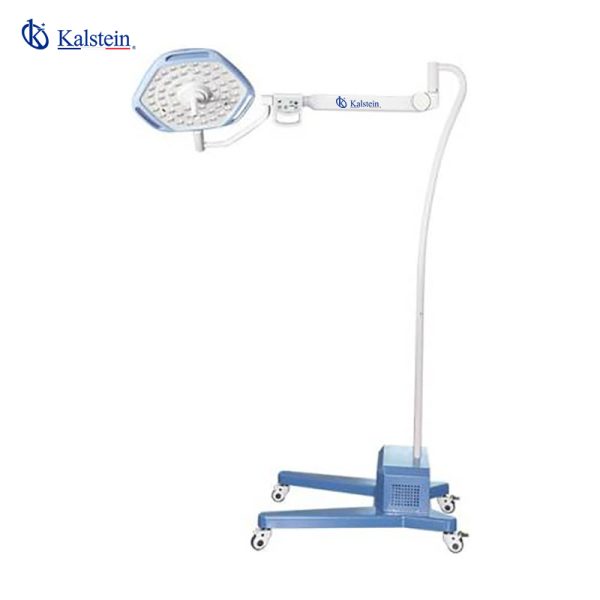

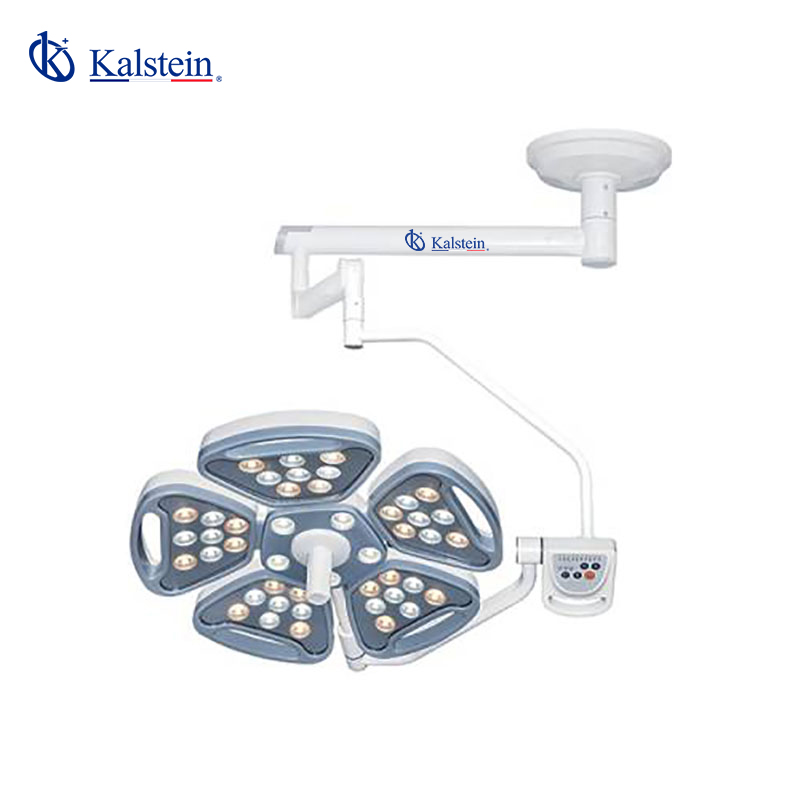

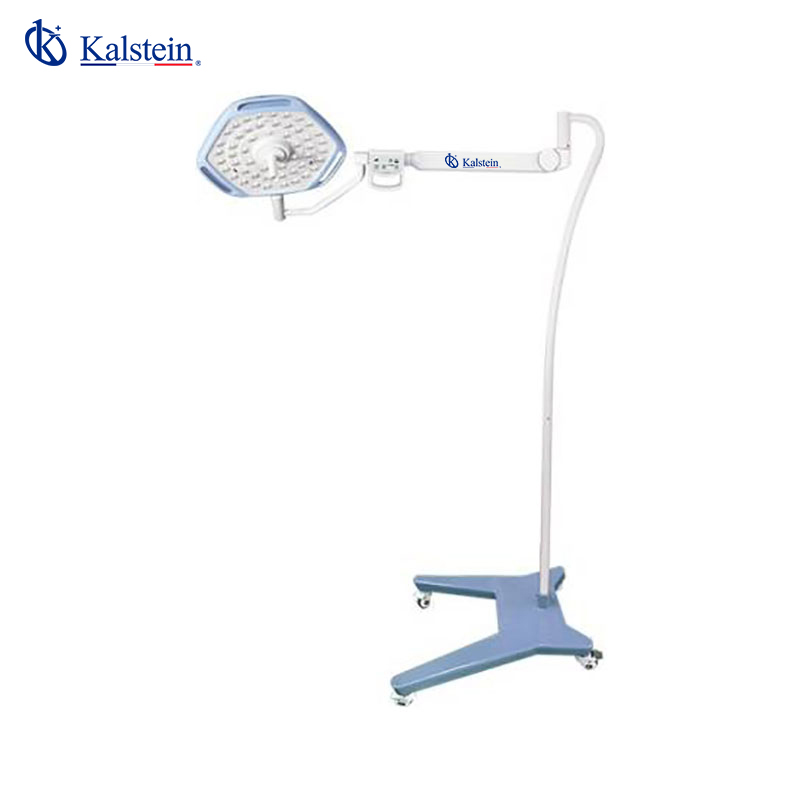

Operation Lamp YR02115 // YR02123

Manufacturer: Kalstein

Description

The Operation Lamp YR02115 // YR02123 is an advanced surgical lighting solution designed to meet the demands of modern operating rooms. These models are equipped with high-performance Osram LED bulbs, providing a remarkable lamp life of over 50,000 hours. They feature a control handle that allows the light focus to be adjusted in a sterile environment and a simple one-button mechanism to reach maximum illuminance instantly. With optional adjustable color temperature and built-in HD camera and monitor display, these lamps deliver precision and clarity, making them indispensable in medical procedures.

Market Price

The Operation Lamp YR02115 // YR02123 is competitively priced within the market, generally ranging between $9,500 USD and $10,500 USD. This price range reflects its advanced features and robust design, making it a valuable investment for healthcare facilities aiming for top-tier surgical lighting. Keep in mind that prices may vary depending on the supplier and any additional features or accessories included.

Frequently Asked Questions

What is the life expectancy of the LED bulbs? The LED bulbs are designed to last more than 50,000 hours, reducing the need for frequent replacements and minimizing maintenance costs.

Can the color temperature be adjusted? Yes, there is an optional feature for adjustable color temperature, allowing customization according to specific surgical needs.

Advantages and Disadvantages

Advantages: The high intensity and adjustable light focus provide excellent visibility during procedures. The long lifespan and energy-efficient design contribute to cost savings over time. The built-in HD camera and display enhance the ability to monitor and record surgeries.

Disadvantages: The initial investment cost might be higher compared to simpler models, but the benefits often outweigh the expense.

Product Use in the Field

This operation lamp is widely used in various surgical and medical procedures, providing consistent and reliable lighting. Its sterilizable handle ensures that it remains hygienic, crucial in operating room environments. The lamp’s capability to focus the field precisely aids surgeons in performing with increased accuracy and confidence.

Recommendations

For optimal performance, it is recommended to have the lamp professionally installed and regularly inspected. Training staff on proper usage and maintenance can further extend the product’s life and efficacy. Utilize the intensity control features to adapt the lighting according to different surgical procedures and needs.

Features

  • Osram LED bulbs.
  • 50,000 hours bulb life.
  • Light focus controlled by the sterile handle.
  • One button for max. illuminance.
  • Endo mode.
  • Optional adjustable color temperature.

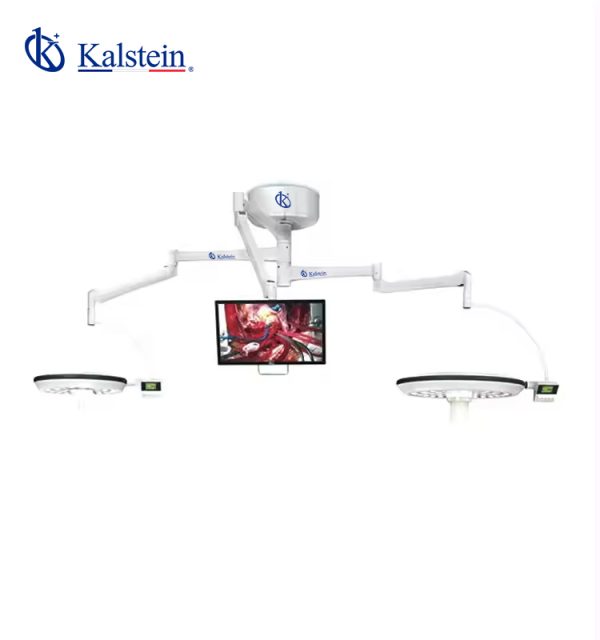

  • Built-in HD camera and monitor display.

Technical Specifications

Model YR02115 YR02116 YR02117 YR02118 YR02119 YR02120 YR02121 YR02122 YR02123
Intensity at 1m(Lux) 160000/160000 ≥160,000 / ≥160,000 160000/140000
Color Temperature (K) 4500±500 (3500-4500)±500 3500-5000
Color Rendering Index (Ra) ≥97 100≥RA≥85 Ra>95
Field diameter (mm) 180-300 100~280 120-300
Illumination depth (L1+L2)(mm) >1000 1500 1200
Intensity control 10%-100%
Type of intensity control Control panel
Type of field focusing control Sterilizable handle
Numbers of LEDs 176 90pcs 80pcs+80pcs 80pcs+48pcs
Lamp lifetime (h) >50000 50,000 >50,000
Bulb rated power 3.2V/1W
Voltage supply AC110-240V 50/60Hz
Minimum installation height (mm) 2600 2700

Additional information

Weight N/A
Model

YR02115, YR02116, YR02117, YR02118, YR02119, YR02120, YR02121, YR02122, YR02123
