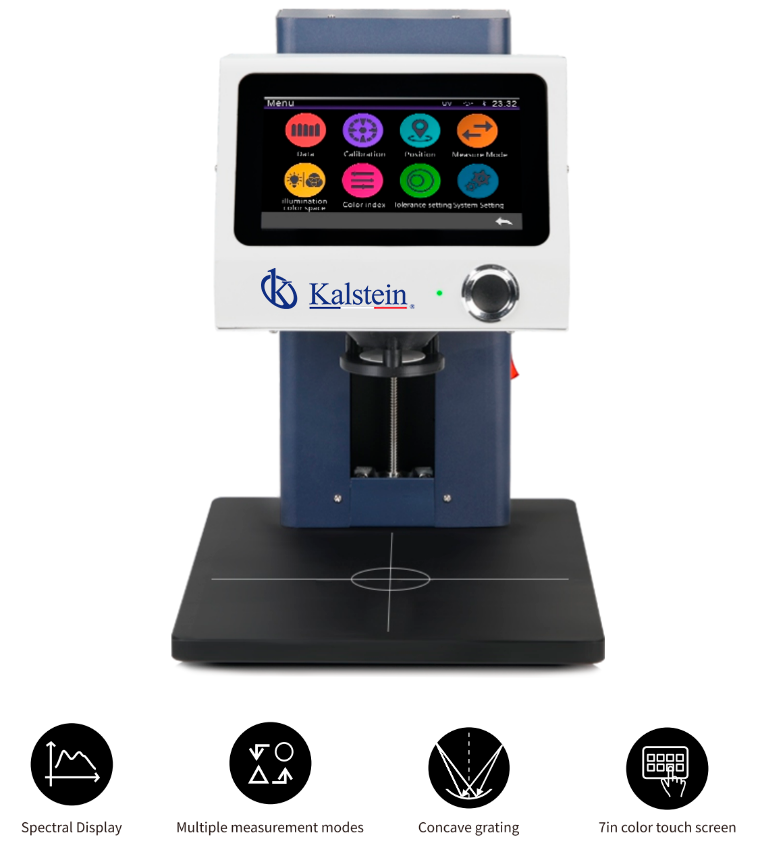

Description
The Non-contact Spectrophotometer YR05481 is a highly advanced color measuring instrument designed to provide precise and reliable color analysis. It utilizes a D/8 optical structure (diffuse illumination, 8° direction reception) that includes specular reflection light, making it ideal for accurate color measurements in laboratories, R&D settings, and automated production lines. With its non-contact measurement capability, this spectrophotometer ensures stable and high-precision results across a variety of materials, including powders and surfaces requiring meticulous handling.
Market Pricing
The Non-contact Spectrophotometer YR05481 is positioned competitively within the market, with prices typically ranging from $10,500 to $11,300. This range reflects its advanced features and technological innovations designed to meet professional and industrial standards.
Frequently Asked Questions
What is the measurement range of the spectrophotometer? The YR05481 offers a broad wavelength range from 400-700nm, with output at 10nm intervals.
Can the device be used on automated production lines? Yes, it is specifically designed to serve both manual and automated lines, offering versatile applications in different industries.
Advantages and Disadvantages
Advantages: High precision and non-contact measurement ensure no damage to samples. It is easy to operate, with a user-friendly interface that requires no complex settings.
Disadvantages: Initial setup might require professional calibration for optimal performance, and it may incur additional customization costs for specialized production line needs.
Product Use in the Field
In practical scenarios, the YR05481 excels in industries like cosmetics, food hygiene, plastics, and ceramics. It provides direct measurement solutions from the production line, ensuring that colors remain consistent and quality control is maintained to the highest standards.
Recommendations
To maximize the utility of the YR05481 spectrophotometer, users should ensure regular calibration using the standard calibration board included. Storing the device in the appropriate conditions will also extend its operational life. For seamless integration into production lines, consider utilizing the platform Kalstein Plus for automated quotes and order processing.
Features
- Professional D/8 optical structure.

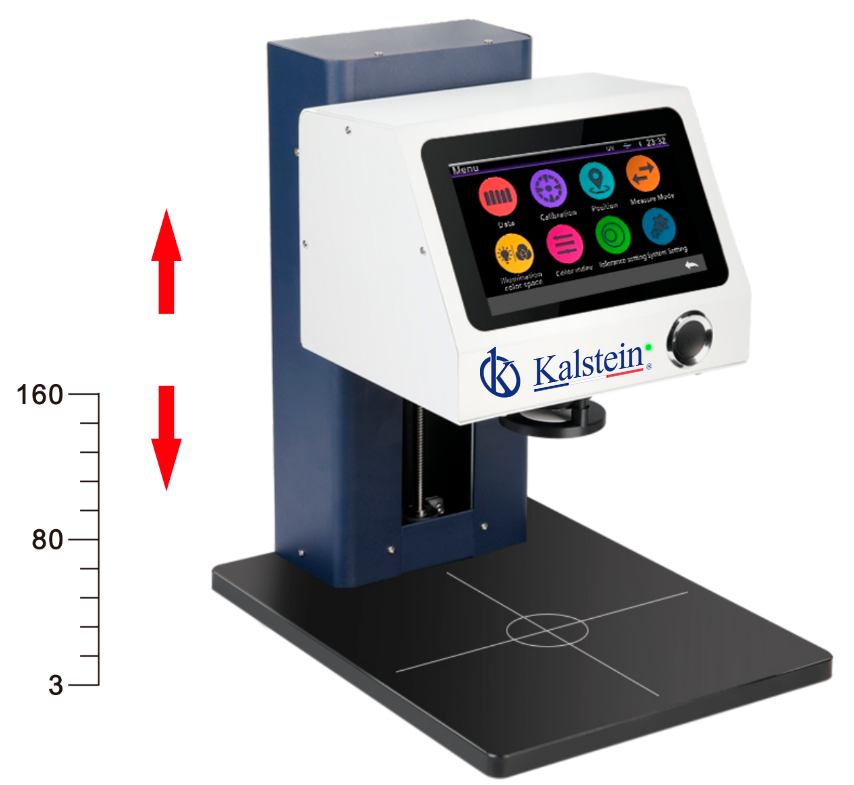

- Adjustable measurement height with a maximum sample support of 160mm.
- Various measurement modes including sample mode, quality control, and continuous statistics.

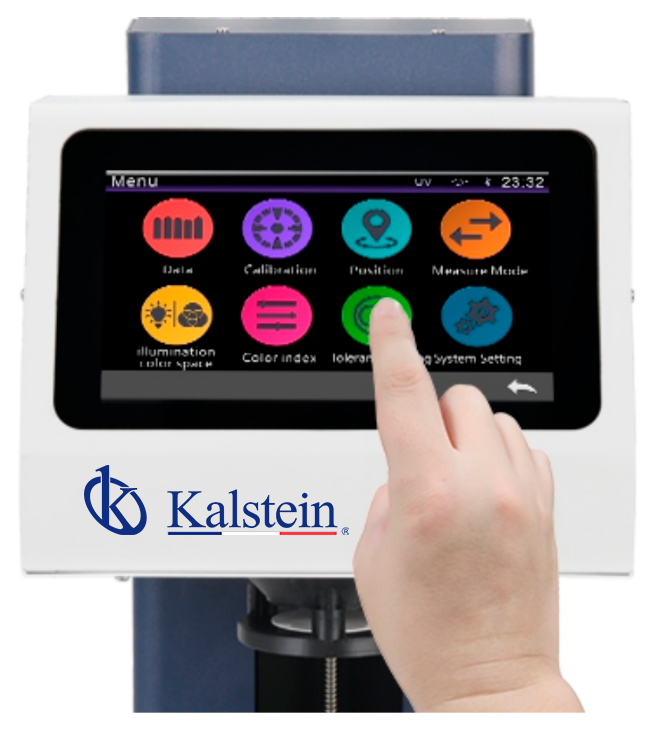

- User-friendly interface with large-screen real-time data display.
- Widely applicable across several industries including cosmetics and electronics.
Technical Specifications
| Model | YR05481 |
| Optical Geometry | D/8 (diffuse illumination, receiving in 8° direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTM E1164, DIN5033 Teil7 |
| Light Source | Full spectrum LED light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256-pixel dual-array CMOS image sensor |
| Wavelength Range | 400-700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 020mm (010mm can be customized) |
| Non-contact distance | 3.0mm(+0.2mm) |
| Sample height | 0-160mm (Using the original support base plate) |
| Distance adjustment method | Manual adjustment (storable test height) |

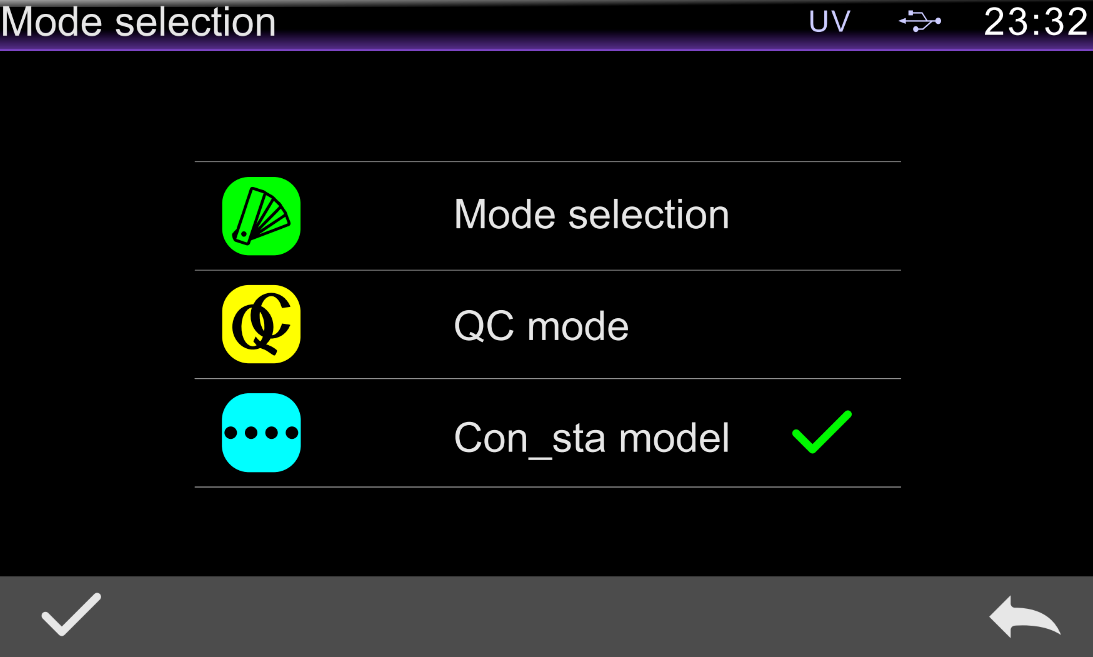

| Measurement mode | Sample mode, quality control mode, continuous statistics mode |
| Locating | Camera locating |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, Bxy, DIN Lab99 |
| Color Difference Formula | AE*ab, AE*94, AE*cmc(2:1), 4E*cmc(1:1), 4E*00, 4E (Hunter), DINAE99 |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), Metamerism index MI, Staining Fastness, Color Fastness, Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, 075, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Color simulation, pass/fail result, display tolerance can be set |
| Measuring Time | Fast mode about 1.0s (0.2-1.5s adjustable) |
| Data Storage | Sample mode + quality control mode 18,000; Continuous statistical mode 30,000, totaling no more than 48,000 |
| Repeatability | In the optimal measurement mode (when a single measurement time is 1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: AE*ab within 0.04 (After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s) |
| Inter-instrument Error | Within AE*ab 0.25 (Measured average value of 12 tiles of BCRA series II) |
| Measurement method | Single measurement, average measurement (2-99 times) |

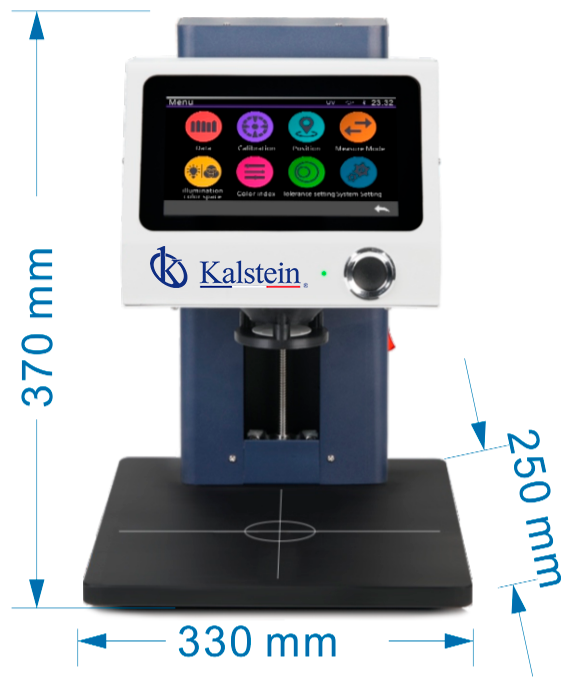

| Dimension | 330*250*370mm |
| Weight | About 10Kg |
| Power | AC 24V, 3A Power adapter power supply |
| illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40°C, 0-85%RH (no condensation), altitude: less than 2000m |
| Storage Environment | -20~50°C, 0-85%RH (no condensation) |
| Standard Accessory | Power adapter, manual, data cable, standard calibration board, black calibration box |
| Notes | This model is specially suitable for streamlined production lines, in-depth function customization will incur additional customization costs |
