Description

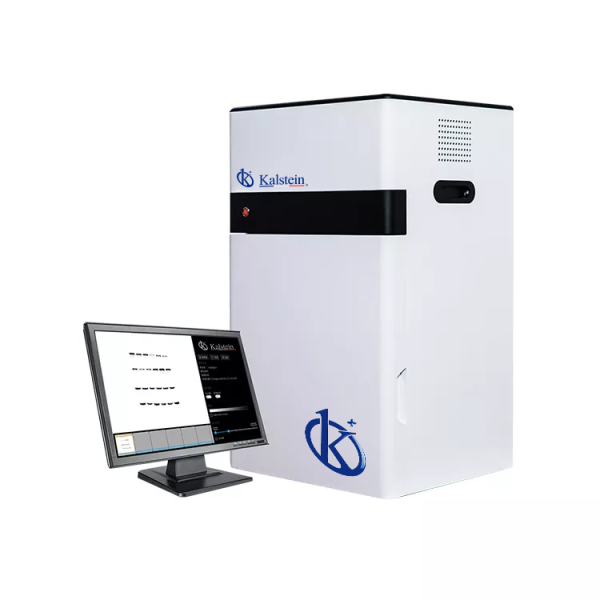

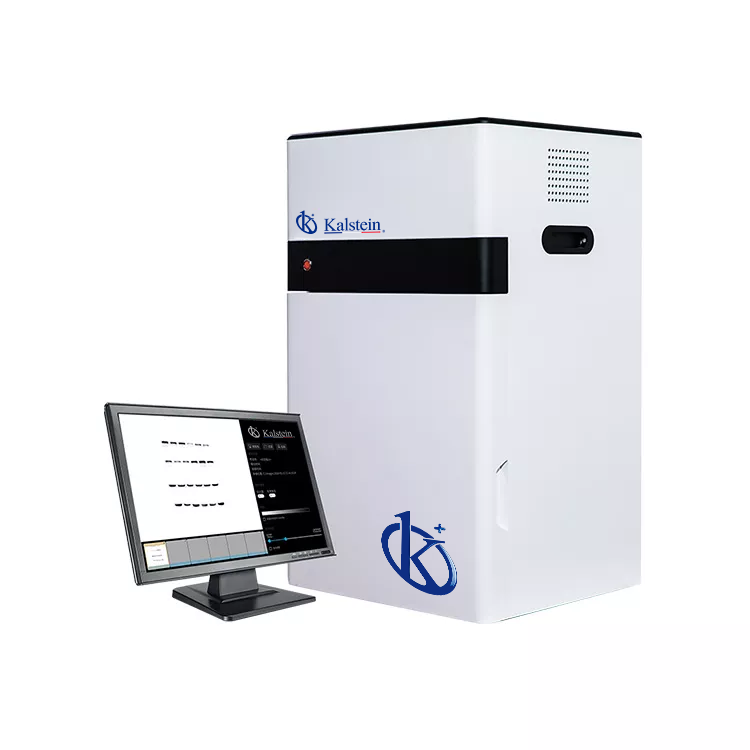

The Multifunctional Imager YR06212 is a state-of-the-art device designed for high performance in various imaging applications. Ideal for visible light (RGB) and near-infrared fluorescence, as well as chemiluminescence detection, this imager is perfect for gel documentation tasks. Its innovative electronic lifting platform allows users to adjust the capture area precisely for samples of varying sizes. Additionally, users can opt for a detachable PC to enhance performance and reduce after-sales risks associated with the embedded Windows Pad.
Market Price
The market for multifunctional imagers can vary significantly based on features and capabilities. Products like the YR06212 typically range between 19,000 USD and 20,000 USD, positioning it competitively considering its advanced specifications and cutting-edge technology. Buyers looking to invest in a superior imaging system often find this price range to reflect the value offered.
Frequently Asked Questions
What types of imaging applications can the YR06212 handle? The YR06212 is suitable for chemiluminescence imaging, ECL Western Blotting, fluorescence imaging, and general gel documentation applications.
Is the software user-friendly? Yes, the SHST Capture and Analysis Software is intuitive and allows an unlimited number of users, making it accessible for large teams.
Advantages and Disadvantages
The main advantages of the YR06212 include its high sensitivity cooled digital camera, wide application range, and the ability to support multiple users through intuitive software. However, a potential downside could be the initial investment cost, which may be higher compared to simpler devices without multifunctional capabilities.
Product Use in the Field
Professionals utilize the YR06212 in various laboratory settings for detailed analysis and documentation of samples. Its robust design and versatility make it essential for research environments requiring not only standard gel documentation but also more advanced fluorescence and chemiluminescence imaging.
Recommendations
To maximize the lifespan and performance of the Multifunctional Imager YR06212, it is recommended to maintain regular software updates and adhere to standard operational procedures. Considering receiving a detailed quote from Kalstein Plus to understand the full scope of benefits and optional accessories available for this product.
Features
- Super sensitive Cooled digital Camera
- Wide range of applications
- Fixed 4 layer chemiluminescence sample trays
- Intuitive Software for unlimited users
Technical Specifications
| Model | YR06212 | |
|
Application
|
Chemilluminescence Imaging, ECL Western Blotting | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | |
| Gel Doc Application | YES | |
| Protein gel; SDS Pages | YES | |
|
Standard Parameters
|
Sensor | Back illuminated SCMOS Sensor |
| Resolution | 9.0 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | |
| Temperature | -30 ℃ regulated | |
| Dynamic Range | 4.8OD | |
| Pixel density | 16bit(65536 Grey scales) | |
| Lens | F0.95 as standard (optional F0.8) Auto Focus | |
| Chemilluminescence Sample tray | Fixed 4 layers sample trays for different sizes of western blotting membranes | |
| DNA/RNA detection | Fixed 1 layer UV transmission as standard | |
| Protein gel；SDS Pages | Fixed white LED Transmission for Protein Gels | |
| Software | SHST Capture and Analysis Software for unlimited number of users | |
|
Optional Accessories
|
Epi-UV, RGB and NIR fluorescent detection | |
| Connection to external PC | ||
| Blue LED transmission | ||
