Description

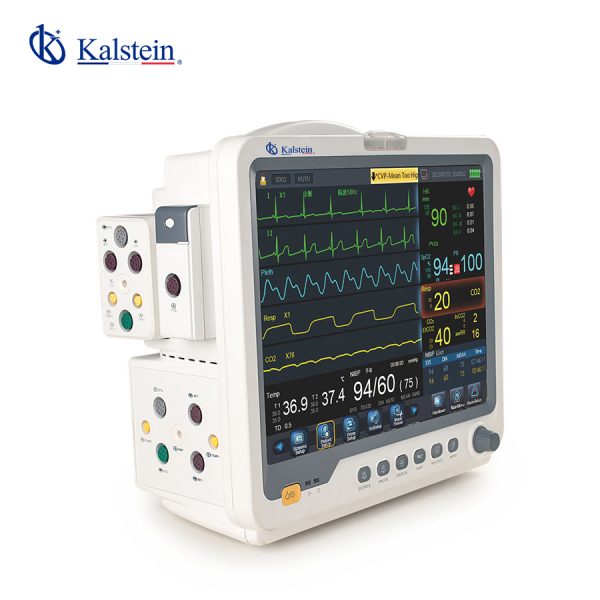

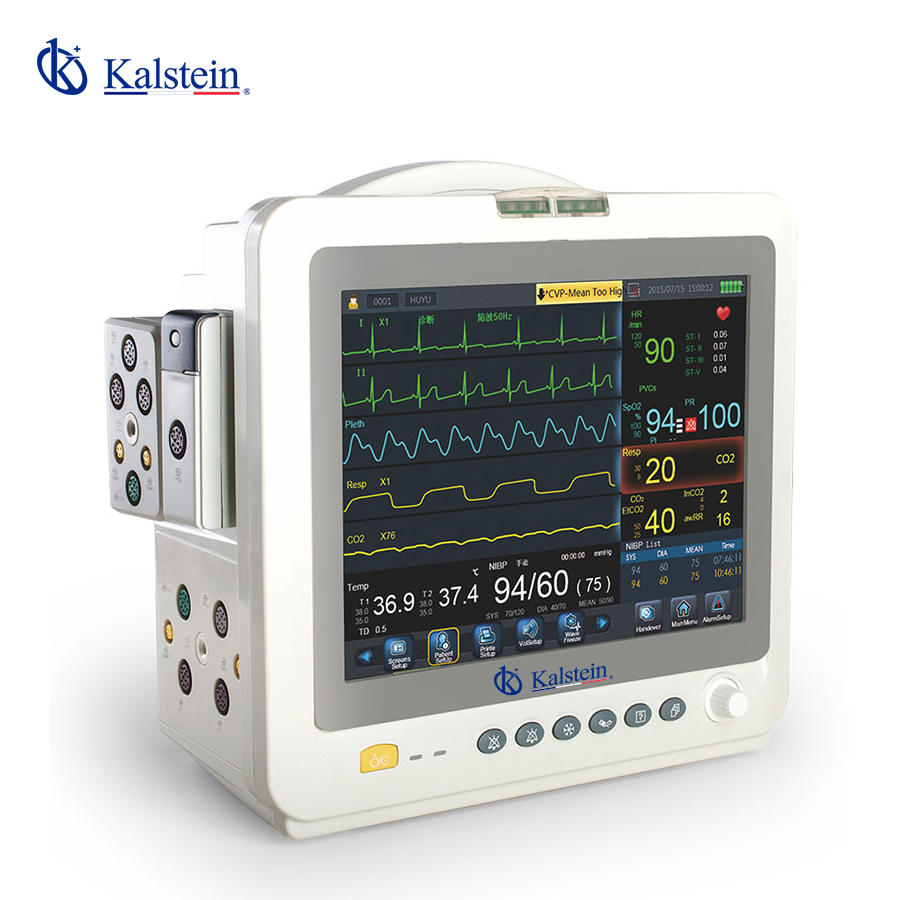

The Multi-parameter patient monitor YR02178 // YR02179 provides unparalleled accuracy and reliability for medical professionals in both the Operating Theatre (OT) and Intensive Care Unit (ICU). Equipped with a high-resolution LCD screen and the flexibility of 2 slots for Semi-Modular Parameters, this monitor delivers comprehensive monitoring of key vitals such as ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. Its standard configuration includes a 5-lead ECG, RESP, dual-temperature measurement, SpO2, and NIBP. Additionally, users have the option to enhance their setup with a touch screen, advanced SpO2 (Masimo/Nellcor), dual-IBP, anesthetic gas (AG) monitoring, and various other features, including a built-in thermal recorder and a portable trolley or wall mount.
Market Pricing
The cost of multi-parameter patient monitors in the market typically ranges between $3,100 and $3,900, depending on features and vendor specifics. This price bracket is indicative of the investment required to obtain cutting-edge monitoring technology for critical care environments. For precise pricing, you are encouraged to request a quotation or access the automatic quote feature through Kalstein Plus.
Frequently Asked Questions
- What are the standard parameters monitored by this device?
Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. - Is the unit compatible with accessories from other manufacturers?
Yes, the monitor is compatible with a variety of accessories, including those from Masimo, Nellcor, and Suntech, among others. - Can this monitor be used in pediatric settings?
Yes, it is suitable for both adult and pediatric/neonatal patient monitoring.
Advantages and Disadvantages
The multi-parameter patient monitor offers numerous advantages, such as comprehensive vitals monitoring, modular configuration options, and high accuracy. However, its complexity may require significant initial setup and training for optimal use.
Usage in the Field
In practical scenarios, this patient monitor is invaluable in operating theatres and intensive care units, providing real-time data to clinicians for critical decision-making. Its modular design allows customization to specific patient needs and simplifies the integration of advanced features according to departmental requirements.
Recommendations
For optimal performance, ensure regular calibration and maintenance of the device. Familiarize medical staff with its functions and options through comprehensive training sessions. Taking advantage of the modular capabilities will enhance patient care and operational efficiency.
Features
- High-resolution LCD screen
- Semi-modular design with 2 slots
- Comprehensive monitoring: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Optional advanced parameters and configurations
- Compatibility with leading brands for sensors and modules
Technical Specifications
| Model | YR02178 | YR02179 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200(uVp-p) | ||
| Differential input impedance | ≥5MΩ | ||
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
|
Heart Rate
|
Measuring range | 40~240bpm | |
| Accuracy | ±3bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200UVp-p | ||
|
Respiration
|
Method | Impedance between R-F(RA-LL) | |
| Differential Input Impedance | >2.5MΩ | ||
| Measuring Impedance Range | 0.3~3.0 MΩ | ||
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Respiration Rate | Adult: 7~120BrPM | ||
| Neo/Ped | 7~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
|
NIBP
|
Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~99% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
|
TEMP
|
Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
