Description

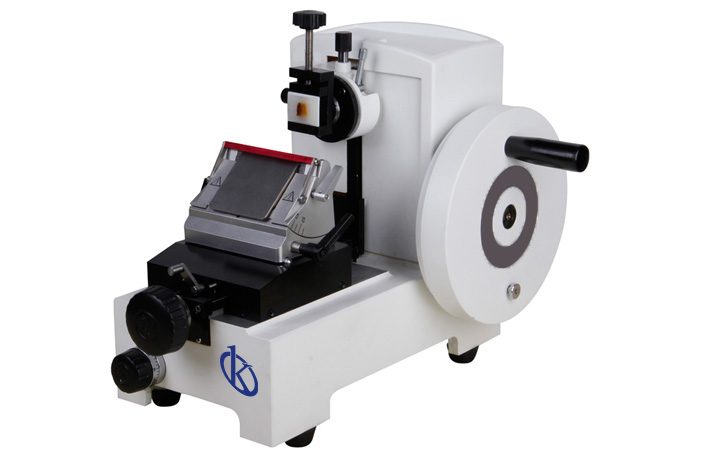

YR420 Manual Rotary Microtome integrates internationally advanced technology and design, and is equipped with high-precision roller guide rails to ensure high precision operation. With stable performance, comfortable and flexible operation, and minimized abrasion, this product can produce even high-quality continuous sections, comparable to that of the well-known imported brand; thus, it is an ideal device for histological and pathological use.
| Model | YR420 |
| Trimming Thickness Setting Range | 0– 500μm |
| Minimum Setting of Sectioning Thickness | 1μm |
| Specimen Holder Rotation | at any angle within360 degrees |
| Specimen Orientation | XY – 8° |
| Total Horizontal Specimen Feed | 28mm |
| Vertical Specimen Stroke | 60mm |
| Movement Range of the Base of Blade Holder Base | 0-60mm (front to back) |
| Movement Range of the Blade Press plate | 0-23mm |
| Precision Error | ±1％ |
| Maximum Specimen Size | 50×60 mm |
| Dimensions | 420×330×330mm (W×D×H) |
| Net weight | 19kg |
