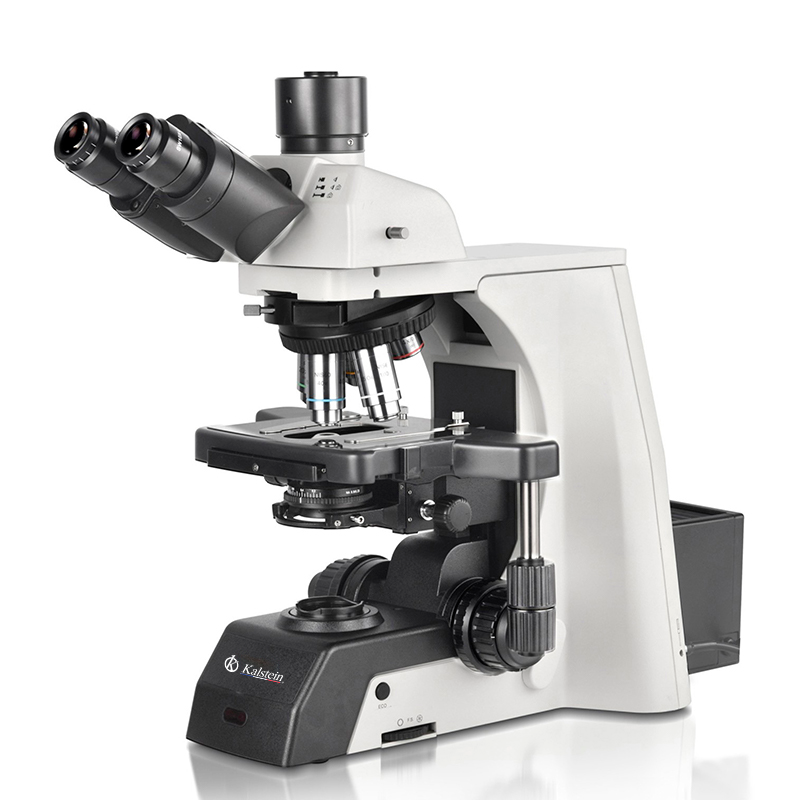

Manual Halogen Laboratory Microscope YR0266A // YR0266C

Description

The Manual Halogen Laboratory Microscope YR0266A // YR0266C is a state-of-the-art full auto motorized research-level laboratory microscope designed to revolutionize scientific observation. Equipped with an electric platform, auto-focus, and electric objective conversion, it streamlines micro-imaging tasks. The intuitive touch-screen controller and robust imaging software enhance user experience by ensuring precise connections between parts for seamless microscope observation, image acquisition, and processing. This advanced microscope retains previous settings to ensure consistent results, improving the accuracy and stability of images. Ideal for laboratories and clinics, this device promises fast, efficient operation, making it a game-changer in scientific imaging.

Market Price

The market price for research-level microscopes like the YR0266A // YR0266C generally falls between $29,500 and $30,800. This range reflects the advanced capabilities and high-tech features offered by the microscope, ensuring researchers and laboratories receive exceptional value for their investment.

Frequently Asked Questions

What is the main advantage of the motorized features of this microscope?
The motorized features, including auto-focus and electric platform, significantly reduce repetitive operations, allowing for more efficient and precise adjustments during imaging procedures.

Can the microscope restore previous settings?
Yes, the microscope can automatically restore the last operation’s settings and parameters, ensuring continuity and saving time during successive studies.

Advantages and Disadvantages

Advantages: High precision and advanced automation enhance efficiency in research settings. The microscope offers versatility with multiple observation methods and adaptability to various research needs, thanks to its comprehensive accessory compatibility.

Disadvantages: The advanced features and automation may result in a steeper learning curve for new users unfamiliar with digital microscopy.

Product Use in the Field

The YR0266A // YR0266C is extensively utilized in clinical labs and research facilities for a wide range of applications, including histology, cytology, and bio-imaging. Its state-of-the-art imaging software and motorized capabilities allow for intricate detail capture in samples, paving the way for groundbreaking research and quick diagnostics.

Recommendations

To maximize the capabilities of the YR0266A // YR0266C, it is recommended to undergo a brief training session to acquaint users with its features. Regular maintenance and software updates will ensure optimal performance and longevity of the device. For personalized advice or to request a quote, connect with us through the Kalstein Plus platform.

Key Features

Full Auto Motorized System
Electric Platform and Auto-Focus
Touch-Screen Controller
Versatile Observation Methods: Bright Field, Dark Field, Polarizing, Phase Contrast, and DIC
High-Power Imaging Software

Technical Specifications

Full Auto Motorized Research Level Scientific Laboratory Microscope		Accessory Number	YR0266A	YR0266B	YR0266C
Optical System	NIS60 Infinity Optical System		●	●	●
Observation Method	Bright Field		●	●	●
	Dark Field		○	○	○
	Polarizing		○	○	○
	Phase Contrast		○	○	○
	Fluorescent		○	○	○
	DIC		○	○	○
Main Body	Manual Body + Halogen Illumination.	YR0266C-op1	●	–	–
	Manual Body + LED Illumination.	YR0266C-op2	●	–	–
	Semi-Auto Body + Halogen Illumination.	YR0266C-op3	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YR0266C-op3	–	●	–
	Semi-Auto Body + LED Illumination.	YR0266C-op4	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YR0266C-op4	–	●	–
	Full Auto Body + LED Illumination.	YR0266C-op5	–	–	●
	Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen	YR0266C-op5	–	–	●

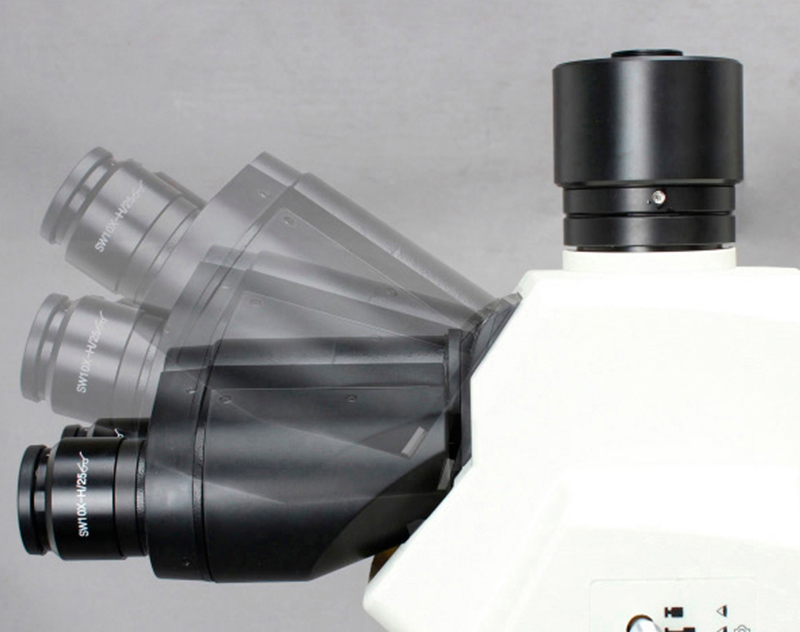

Head	Seidentopf Binocular Head, Inclined 30°,	YR0266C-op6	○	○	○
	Interpupillary Distance 47-78mm	YR0266C-op6	○	○	○
	Seidentopf Trinocular Head, Inclined 30°,	YR0266C-op7	●	○	●
	Interpupillary Distance 47-78mm,	YR0266C-op7
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YR0266C-op8
	Ergo Tilting Trinocular Head, Inclination 0°~35°,	YR0266C-op8	○	●	○
	Interpupillary Distance 47-78mm,	YR0266C-op9
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YR0266C-op9
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op10	●●	●●	●●
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op11	○	○	○
	EW12.5x/16mm, High Eyepoint	YR0266C-op12	○	○	○
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op13	○	○	○
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op14	○	○	○

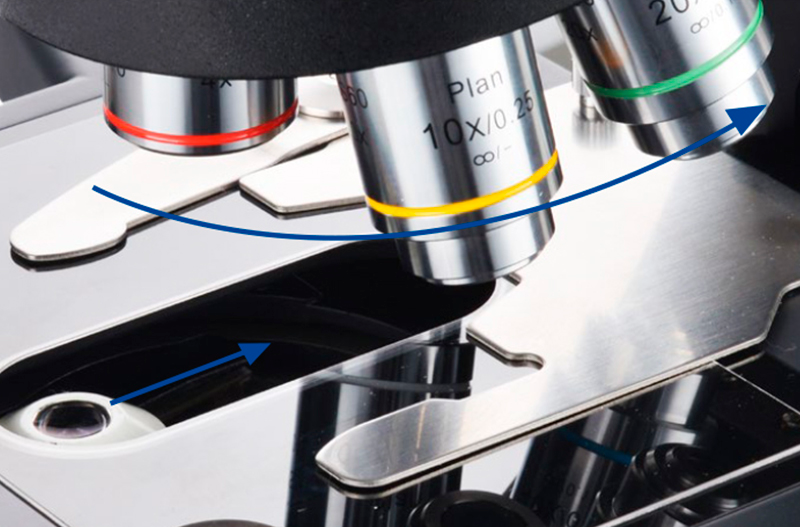

Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	YR0266C-op15	○	○	○
	Manual Nosepiece, Sextuple, Backward	YR0266C-op16	●	–	–
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust	YR0266C-op17	○	–	–
	Auto Coded Nosepiece, Sextuple, Backward,	YR0266C-op18	○	●	●
	Motorized Switch Objectives, Controlled By:
	1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly

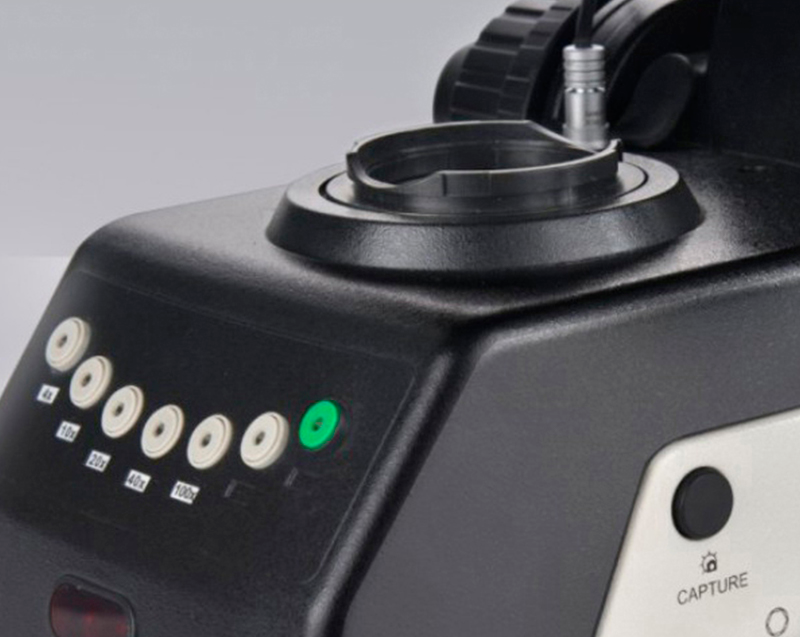

	2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objectives, Press Green Button Can Swap Between Them
	With Slot For Polarizing Compensator Slider Or DIC Slider		●	●	●
	Protect Cover For Nosepiece Holes	YR0266C-op19	●	●	●

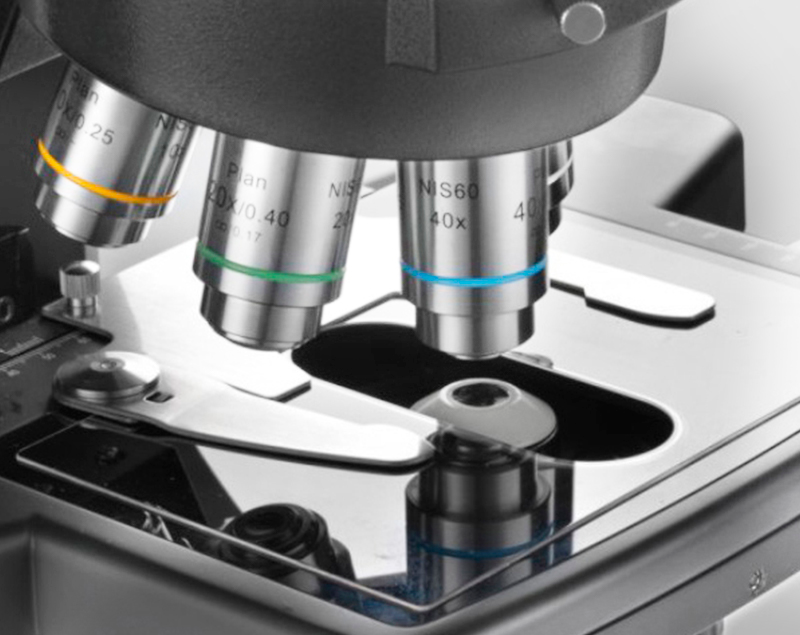

NIS60	2x/0.06, W.D.7.5mm, Cover Glass 0.17mm	YR0266C-op20	○	○	○
N-PLN	4x/0.10, W.D.30mm, Cover Glass 0.17mm	YR0266C-op21	●	●	●
Infinity Plan Objective	10x/0.25, W.D.10.2mm, Cover Glass 0.17mm	YR0266C-op22	●	●	●
	20x/0.40, W.D.12mm, Cover Glass 0.17mm	YR0266C-op23	●	●	●
	40x/0.65, W.D.0.7mm, Cover Glass 0.17mm	YR0266C-op24	●	●	●
	50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm	YR0266C-op25	○	○	○
	60x/0.8, W.D.0.3mm, Cover Glass 0.17mm	YR0266C-op26	○	○	○
	100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm	YR0266C-op27	●	●	●
NIS60APO Infinity Plan	20x/0.75, W.D.1.1mm, Cover Glass 0.17mm	YR0266C-op28	○	○	○
NIS60APO Infinity Plan	100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm	YR0266C-op29	○	○	○
Working Stage	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, LeftHandle	YR0266C-op30	○	–	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, RightHandle	YR0266C-op31	●	–	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle	YR0266C-op32	–	○	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle	YR0266C-op33	–	●	○

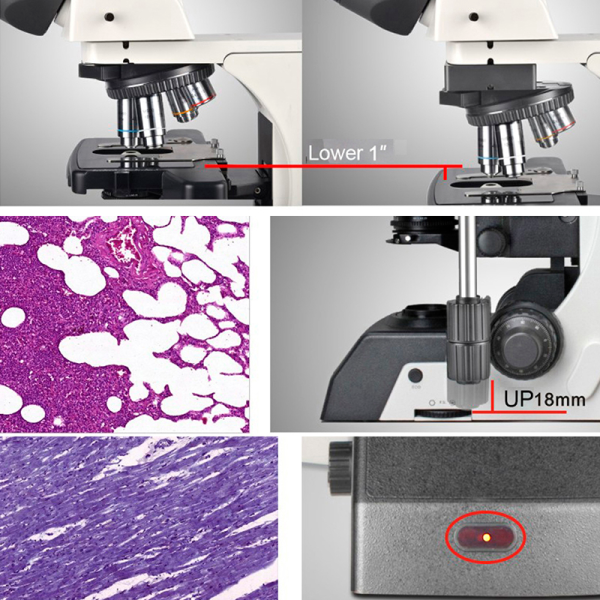

	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	–	●	●	–
	Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick,	YR0266C-op34	○	○	●
	–Travel Range X:125mm, Y:75mmm,
	–Minimum Step 0.1um
	–Re-Position Accurate +/-1.5um
	–Max Speed 25mm/s
	–Size: 275x239x44.5mm
	–Soft Stop, Mechanical Stop, Opto-Electro Switch Stop
	–Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um
	–Z Axis Max Speed 10r/s
	–3D Control Stick, 4 Speeds
	–Connection By USB2.0 & RS232
	–Communication Speed 9600 bits
	Z Axis Upgrade With Optical Grating Ruler	YR0266C-op35	○	○	○
Condenser	Swing-Out Condenser NA0.9/0.25	YR0266C-op36	●	–	–
Condenser	AutoSwing-Out Condenser NA0.9/0.25	YR0266C-op37		●	–

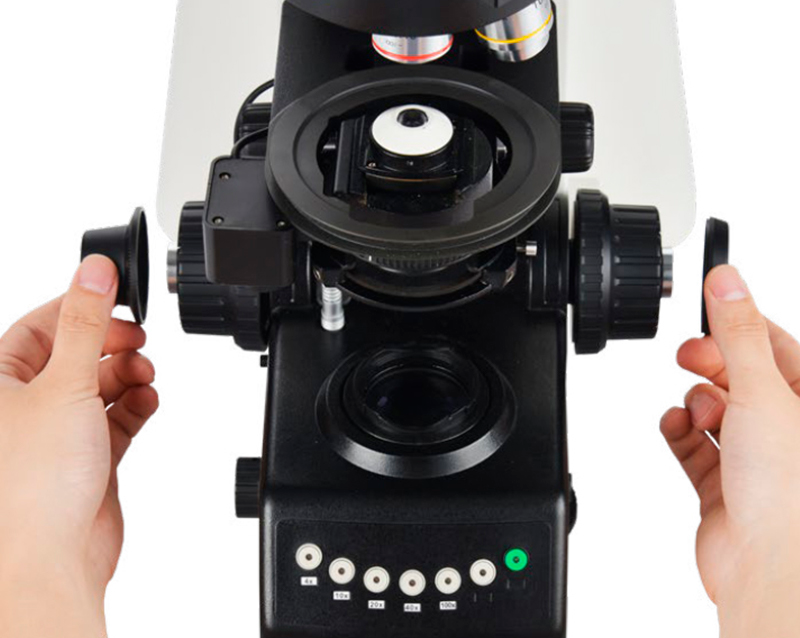

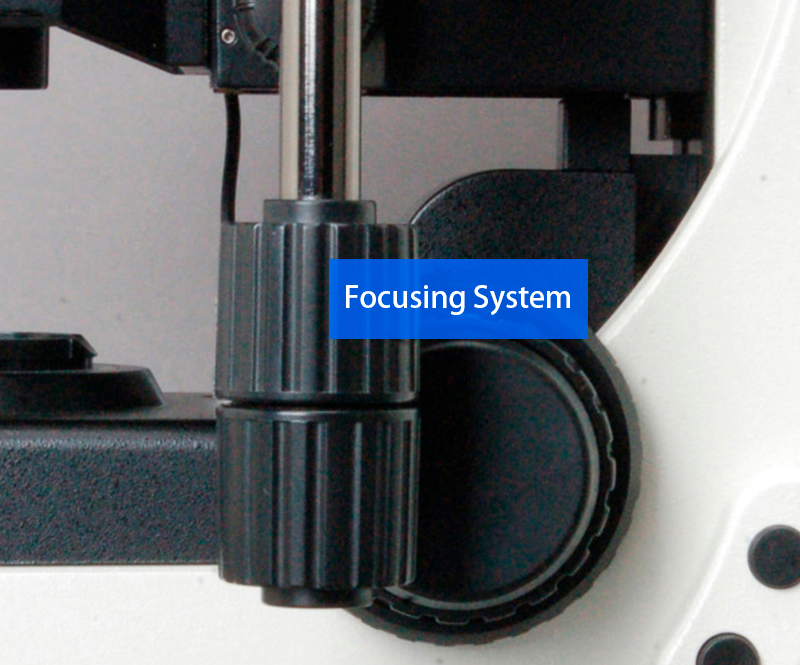

Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Right	–	●	●	●
Light Source	Transmit Kohler Illumination, Brightness Adjustable,	YR0266C-op38	●	●
	12V100W Halogen, External Lamp House	YR0266C-op38	●	●
	TransmitKohler Illumination, Brightness Adjustable,	YR0266C-op39			●
	3W S-LED, Built-in Main Body	YR0266C-op39			●
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	YR0266C-op40	●	●	●
	AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected	YR0266C-op41	○	●	●
	(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time)	YR0266C-op41	○	●	●
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	YR0266C-op42	●	●	●
	Filter LBD	YR0266C-op43	●	●	●
	Filter Green	YR0266C-op44	●	●	●
	Filter Yellow	YR0266C-op45	●	●	●
	Filter ND6	YR0266C-op46	●	●	●
	Filter ND25	YR0266C-op47	●	●	●
Adapter	Eyepiece Adapter Dia.23.2mm	YR0266C-op48	○	○	○
	C-Mount 1.0x	YR0266C-op49	○	○	○
	C-Mount 0.5x	YR0266C-op50	○	○	○
Software	NOMIS Basic Image Processing Software	YR0266C-op51	○	○	○
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	YR0266C-op52	○	○	○
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	YR0266C-op53	○	○	○
	Dark Field Objective, Infinity Plan 100X,	YR0266C-op54	○	○	○
	For Immersion Dark Field Observation	YR0266C-op54	○	○	○
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,	YR0266C-op55	○	○	○
	For Immersion Dark Field Observation	YR0266C-op55	○	○	○
Polarizing	Polarizer For Transmit Light Source, Swing-Out, On Collector	YR0266C-op56	○	○	○
	Analyzer For Transmit Light, Slide With Quartz Wedge Compensator	YR0266C-op57	○	○	○
	Professional Polarizing Microscope	YR0266C-op58	○		○
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	YR0266C-op59	○	○	○
	Centering Telescope 10x	YR0266C-op60	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	YR0266C-op61	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	YR0266C-op62	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	YR0266C-op63	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	YR0266C-op64	○	○	○
DIC	Polarizer For Transmit Light Source	YR0266C-op65	○	○	○
	Turret DIC Condenser	YR0266C-op66	○	○	○
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	YR0266C-op67	○	○	○
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	YR0266C-op68	○	○	○
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	YR0266C-op69	○	○	○
	DIC Slide With Analyzer 10x-20x	YR0266C-op70	○	○	○
	DIC Slide With Analyzer 40x-100x	YR0266C-op71	○	○	○
NIS60 N-PLFN	4x/0.13, W.D.16.5, Cover Glass 0.17mm	YR0266C-op72	○	○	○
Semi-APO	10x/0.3, W.D.8.1, Cover Glass 0.17mm	YR0266C-op73	○	○	○
Fluorescent	20x/0.5, W.D.2.1, Cover Glass 0.17mm	YR0266C-op74	○	○	○
Objective	40x/0.75, W.D.0.7, Cover Glass 0.17mm	YR0266C-op75	○	○	○
For DIC	100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil	YR0266C-op76	○	○	○
Fluorescent	Fluorescent Microscope	YR0266C-op77	–	○	○
Other Accessories	Working Stage Holder Bracket	YR0266C-op78	●	●	●
	Adapter To Adjust Eye Position	YR0266C-op79	○	○	○
	Adapter To Lower The Stage Position 1″	YR0266C-op80	○	○	○
	Immersion Oil	YR0266C-op81	●	●	●
	Allen Wrench	YR0266C-op82	●	●	●
	Power Cord	YR0266C-op83	●	●	●
	Short Eye Cover, For Eyepiece	YR0266C-op84	○	○	○
	Long Eye Cover, For Eyepiece	YR0266C-op85	○	○	○
	Eyepiece Micrometer, Cross	YR0266C-op86	○	○	○
	Adapter Ring To Install Eyepiece Micrometer	YR0266C-op87	○	○	○
	USB Cable	YR0266C-op88	○	○	○
Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable

Additional information

Weight	N/A
Model	YR0266A, YR0266B, YR0266C
