Low Price Vertical Pressure Steam Sterilizer YR05682 // YR05687

ManufacturerKalstein

Description

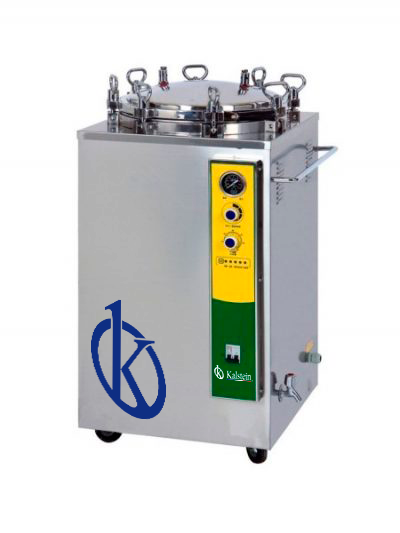

The Low Price Vertical Pressure Steam Sterilizer YR05682 // YR05687 is a state-of-the-art sterilization solution expertly crafted to meet the demands of modern laboratories, hospitals, and research facilities. Built entirely with robust stainless steel 304, this sterilizer ensures longevity and durability. Its microprocessor control system, complemented by indicator lights, provides clear and precise information about pressure, time, and temperature during sterilization. With features like automatic discharge of cool air and steam post-sterilization, coupled with enhanced safety mechanisms such as over-temperature and over-pressure protection, this device ensures reliability and user safety. Ideal for environments requiring rigorous sterilization, the sterilizer comes with two stainless steel baskets, offering ample space for various instruments, all while maintaining an efficient and safe operational process.

Market Pricing

Vertical pressure steam sterilizers often range between $4,000 to $4,900 in the market, driven by factors like capacity, advanced features, and brand reputation. This particular model offers competitive pricing while maintaining premium quality and efficiency, making it a preferred choice for many institutions seeking reliable sterilization solutions without breaking the bank.

Frequently Asked Questions

What are the safety features of this sterilizer? This sterilizer is equipped with multiple safety features, including automatic shut-off, over-temperature protection, and an emergency exhaust valve.

What capacity options are available? The YR series offers a range of models with chamber sizes from 35 liters to 150 liters, catering to various institutional needs.

Is maintenance complex for this device? Maintenance is straightforward, aided by the self-inflating type seal and easy-to-clean stainless steel structure.

Advantages and Disadvantages

The key advantages of this steam sterilizer include its durability, ease of use, and comprehensive safety mechanisms. However, some users may find the initial setup slightly complex due to the range of features and settings. Yet, this complexity underscores its customizable versatility, making it suitable for diverse sterilization requirements.

Field Use

In practical scenarios, the sterilizer is used extensively in hospitals for sterilizing surgical instruments, laboratory equipment, and bio-hazardous waste. Its dual sterilizing baskets allow for efficient handling of multiple items in a single cycle, optimizing workflow and ensuring that institutional protocols are maintained with precision and reliability.

Recommendations

To maximize the longevity and performance of the sterilizer, it is recommended to regularly inspect and maintain the water levels and seals. Always adhere to the manufacturer’s guidelines for cleaning and servicing to ensure optimal operational efficiency. Engaging in a routine maintenance program can extend the life of the sterilizer significantly.

Features

  • Fully stainless steel 304 structure for enhanced durability.
  • Microprocessor control with indicator lights for easy monitoring.
  • Automatic discharge of cool air and steam post-sterilization.
  • Comes with two stainless steel sterilizing baskets.
  • Incorporates standard PT/TT test interface for convenient testing.
  • Multiple safety features, including over-temperature and over-pressure protection.
  • Available in various capacities, suitable for a wide range of applications.

Technical Specifications

Model YR05682 YR05683 YR05684 YR05685 YR05686 YR05687
Max. working pressure 0.23Mpa
Working pressure 0.22Mpa
Working temperature 134℃
Working temperature range 105 – 134℃
Sterilization time 0 – 60 min
Heat average ≤± 1℃
Type Vertical Steam Sterilizer
Control  Microprocessor
Display Indicator light
Light Working status indicator light
Water level indicator light
Sterilization basket 2 PCS
Language English
Voltage 110/220V, 50/60Hz, single-phase
Chamber Size(mm) 35L / Ø318×450 50L / Ø340×550 75L / Ø400×600 100L / Ø440×650 120L / Ø480×660 150L / Ø510×740
Outer Size(mm) 450×450×1010 510×470×1130 560×560×1130 560×560×1250 600×640×1140 670×690×1130
Packing Size(mm) 570×570×1150 590×590×1280 650×650×1280 680×680×1370 730×730×1270 760×760×1270
G.W. / N.W. 72 kg / 56 kg 88 kg / 68 kg 100 kg / 80 kg 110 kg / 85 kg 125kg / 100kg 140kg / 110kg
Power 2.5 KW 3.0 KW 4.5 KW 4.5 KW 6.0 KW 6.0 KW

Additional information

Weight N/A
Model

YR05682, YR05683, YR05684, YR05685, YR05686, YR05687
