Description

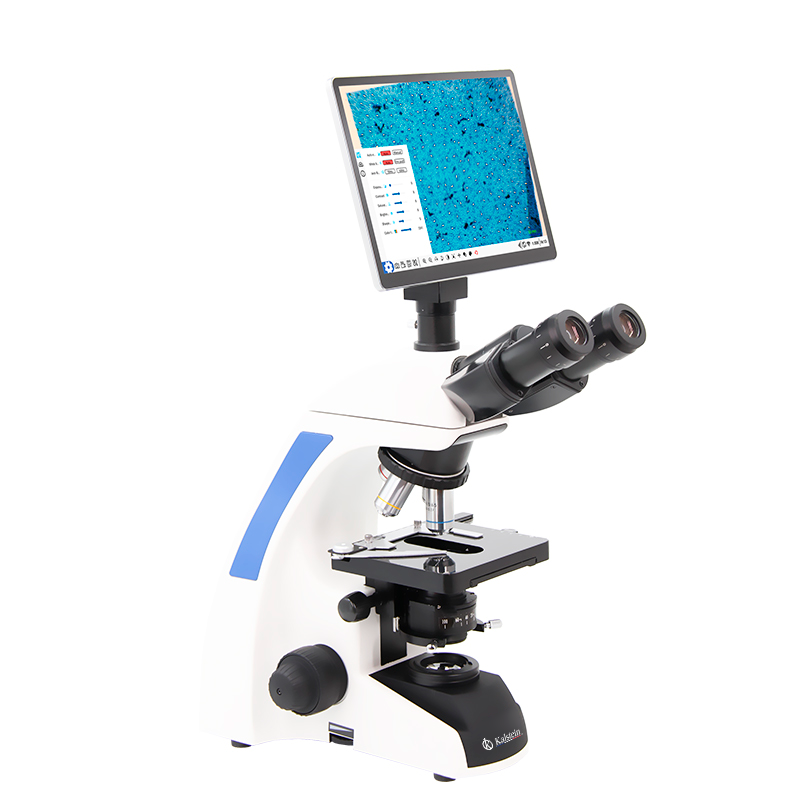

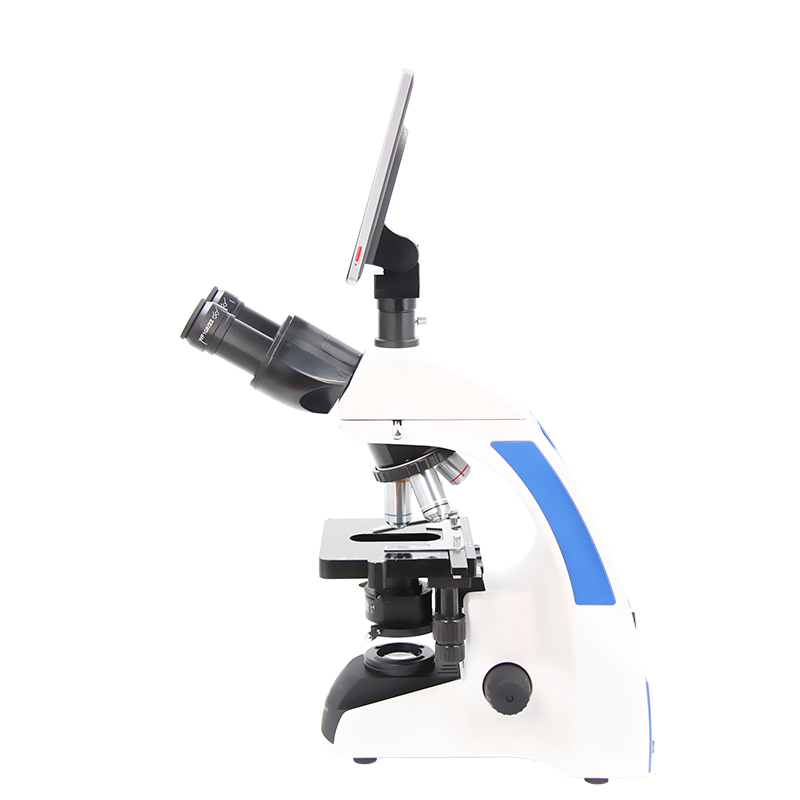

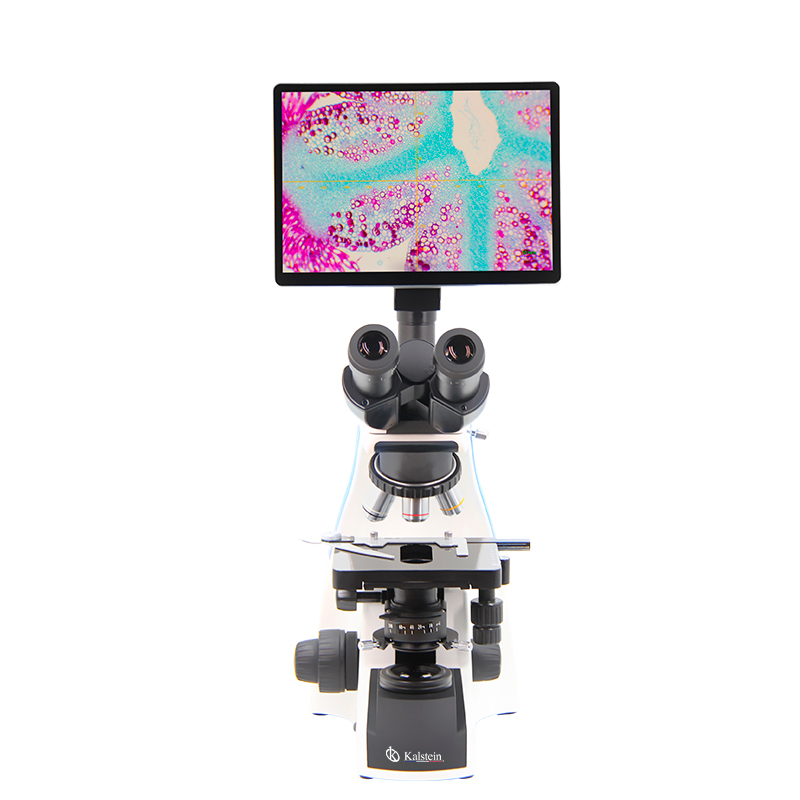

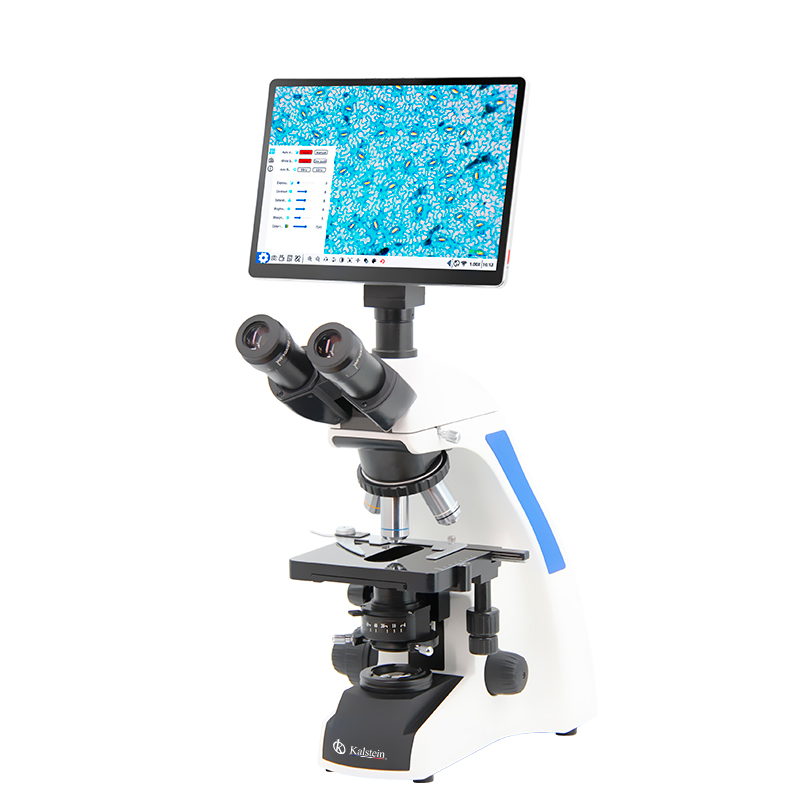

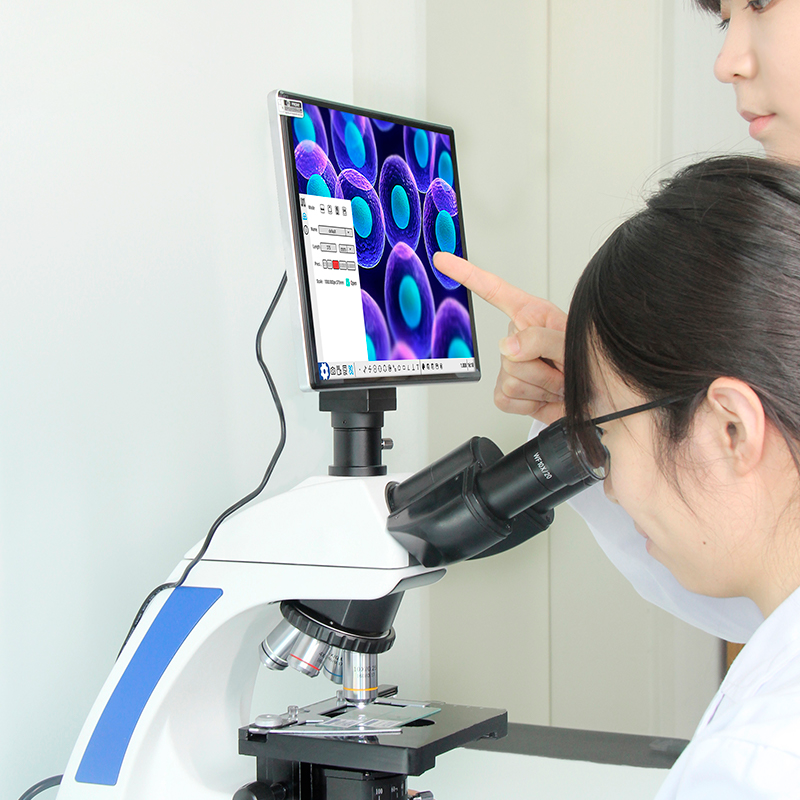

The LCD Touch Screen Digital Microscope YR05782 is a state-of-the-art laboratory instrument equipped with a 10.5″ LCD touch screen pad and running on an Android system, ideal for advanced scientific research and analysis. This digital microscope offers high-image clarity with its high eyepoint wide field eyepiece WF10x/20mm and can be upgraded to infinity, allowing for extensive magnification options. Featuring a durable double layer mechanical stage and Kohler illumination, this microscope is designed to meet the needs of different biological analysis tasks in research and educational institutions.
Price in the Market
The price for high-quality digital microscopes such as the LCD Touch Screen Digital Microscope YR05782 typically ranges between $1,300 and $2,000 in the market. This competitive pricing ensures accessibility for both small-scale and larger laboratories looking for reliable, cutting-edge microscopy solutions without compromising on quality.
Frequently Asked Questions
- What kind of applications is this microscope suitable for?
This microscope is suitable for a wide range of scientific applications, including biological research, educational purposes, and any field that requires detailed microscopic examination. - Does it support connectivity for data transfer?
Yes, the microscope supports dual-band WIFI, Bluetooth 5.0, and has multiple output options including USB and HDMI. - Is the measuring software user-friendly?
Yes, the installed S-Eye2.0 Measure Software on the Android system is intuitive and easy to operate even for beginners.
Advantages and Disadvantages
One major advantage of the LCD Touch Screen Digital Microscope YR05782 is its cutting-edge technology, offering unparalleled clarity and usability with its touch screen interface and extensive connectivity options. The main disadvantage could be its complex features that may be overwhelming for users not well-versed with digital microscopy technology.
Product Use in the Field
This microscope is extensively used in laboratories and educational institutions for precise measurements and observations. Its built-in S-Eye software allows for detailed geometric and area measurements, making it indispensable for tasks such as material science and biological research.
Recommendations
For optimal use, regularly clean the lenses and screen to maintain image clarity. Regular software updates will ensure you always have the latest features and improvements. Utilize the support of Kalstein Plus to request a quote or generate automatic quotes for budget planning.
Features
- 10.5″ LCD Touch Screen with Android System
- High Eyepoint Wide Field Eyepiece
- Upgradeable Chromatic Objectives
- Double Layer Mechanical Stage
- Removable LED Kohler Illumination
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

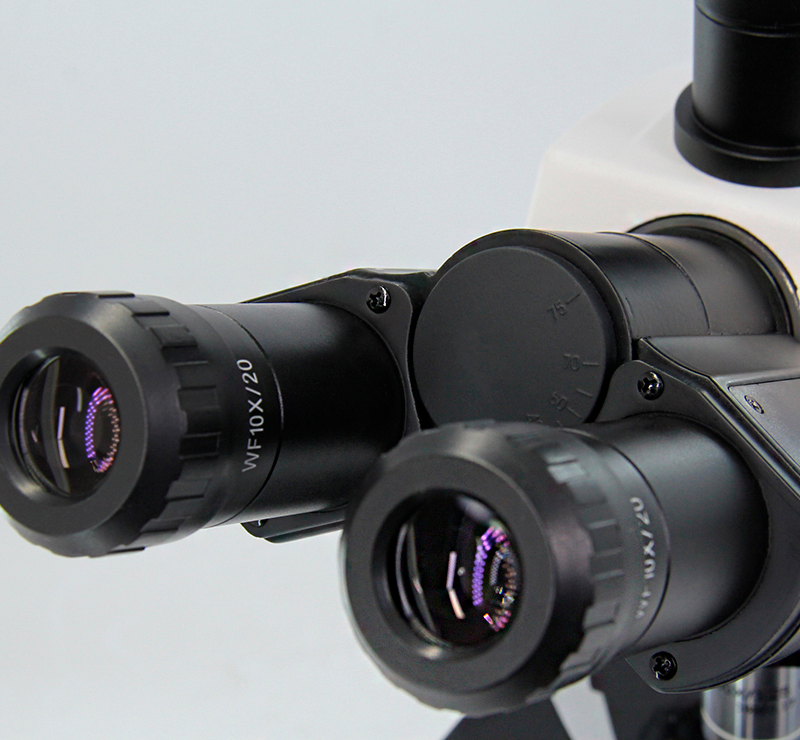

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |

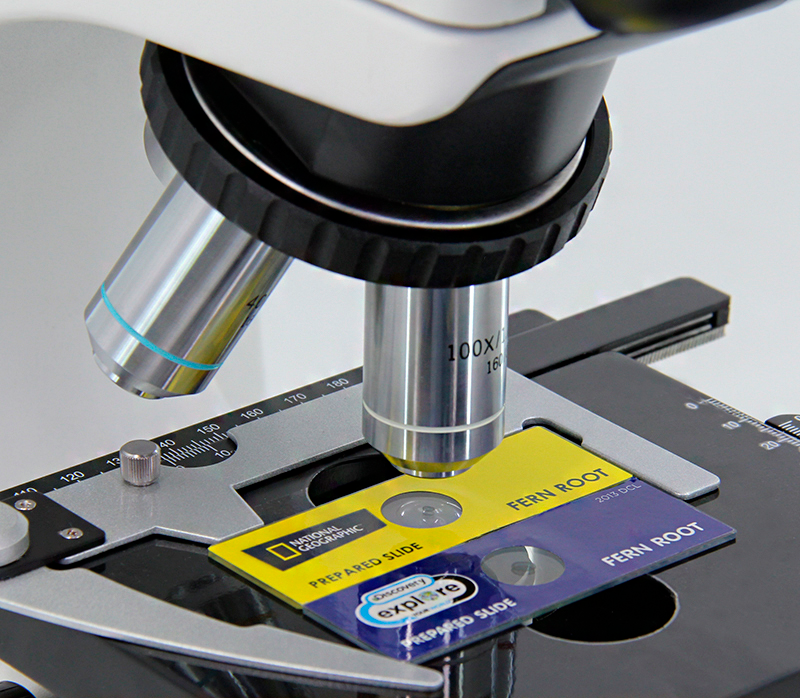

| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

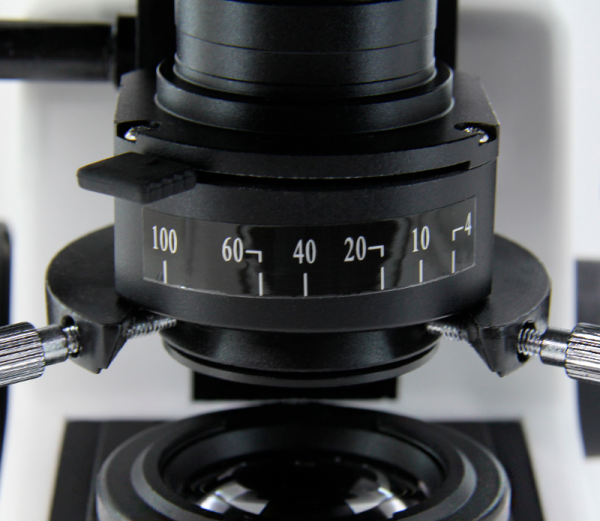

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |
| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
