Laboratory Microscope YR0239 - YR0240

Description

Laboratory Microscope YR0239 – YR0240 is an advanced microscope designed for precision and clarity in laboratory settings. Featuring a Seidentopf binocular viewing head inclined at 30° with an interpupillary distance of 47-78 mm, this microscope ensures comfortable and accurate adjustments. The finite optical system, along with a WF10X/18 eyepiece, provides exceptional imaging quality. With a robust coaxial fine and coarse adjustment system, you can achieve precise focusing with a fine division of 0.002 mm and a moving range of 25 mm. This microscope is ideal for a variety of applications, offering flexibility with its darkfield condenser (dry, oil) and S-LED illumination, promoting optimal visibility. Enhance your research efficiency by requesting a quote or generating an automatic quotation via the Kalstein Plus platform today.

Market Price

The Laboratory Microscope YR0239 – YR0240 is competitively priced within the laboratory equipment market. Similar microscopes typically range from $600 to $1200, depending on specifications and features. This price range makes it an attractive option for laboratories seeking quality and affordability.

Frequently Asked Questions

What types of research applications are best suited for this microscope?
This microscope is suitable for a wide range of applications, including biological research, medical laboratories, and educational settings.

Does this microscope support digital imaging?
Yes, certain models of this microscope are equipped with a digital viewing head that supports Wifi and includes a 5M pixels camera.

Advantages and Disadvantages

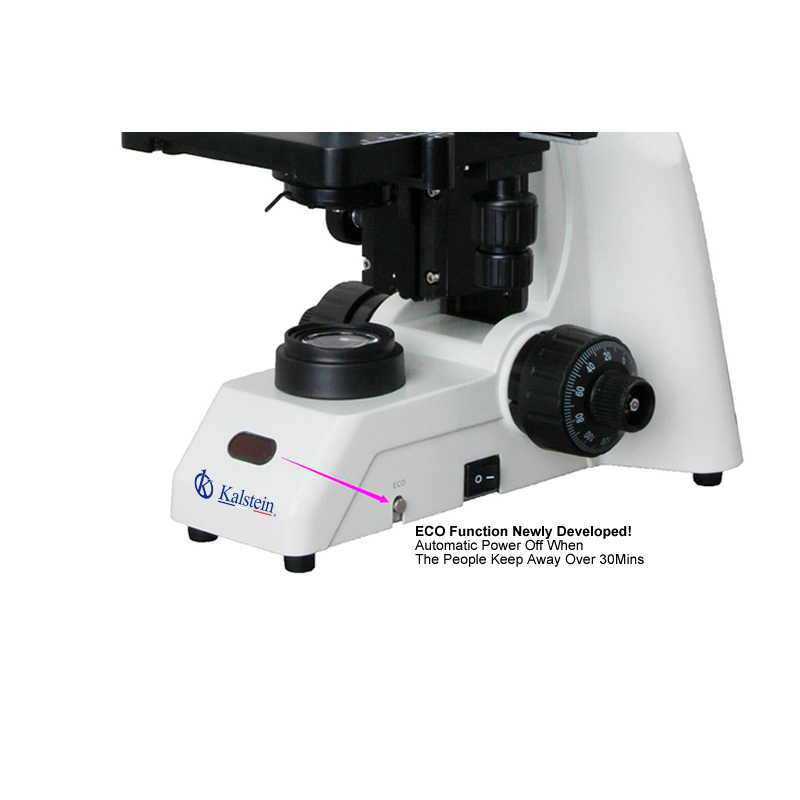

Advantages: The microscope offers a versatile viewing head, high-quality optics, and precise focusing capabilities. The S-LED illumination enhances image clarity, and the ECO function conserves energy.

Disadvantages: The digital features may not be necessary for all users, and the microscope’s advanced capabilities may require a learning curve for new users.

Use of the Product in the Field

This microscope can be utilized in both educational and professional laboratory environments. Its robust design and flexible features allow for comprehensive studies in cell biology, histology, and other scientific fields.

Recommendations

To maximize the performance of the Laboratory Microscope YR0239 – YR0240, it is recommended to regularly clean the optical components and ensure proper calibration of the focusing system. Additionally, familiarizing yourself with the digital features will enhance your research capabilities.

Features

Seidentopf binocular viewing head, 30° inclined
Coaxial fine and coarse adjustment
Darkfield condenser (dry, oil)
Finite optical system
WF10X/18 eyepiece
S-LED illumination

Technical Specifications

Model		YR0239	YR0239-1	YR0240	YR0240-1
Optical System	Finite Optical System
Eyepiece	WF10X/18
Viewing Head	Monocular Head Inclined at 30°	○	○	○	○
	Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm	●		●
	Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm		●		●
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi	○	○	○	○
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8″LCD. Android OS	○	○	○	○
Achromatic Objective	4X N.A=0.1 WD=37.5	●	●	●	●
	10X N.A=0.25 WD=7.316	●	●	●	●
	20X N.A=0.4 WD=13	○	○	○	○
	40X N.A=0.65 WD=0.632	●	●	●	●
	100X N.A=1.25 WD=0.198	●	●	●	●
Nosepiece	Backward Quadruple Nosepiece	●	●	●	●
Stage	Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm
Condenser	NA1.25 Abbe Condenser	●	●	●	●
Condenser	Dark Field Condenser (Dry, Oil)	○	○	○	○
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm
Illumination	Halogen Lamp 6V/20W	○	○	○	○
	S-LED Illumination	●	●	●	●
	S-LED Illumination with Recharger	○	○	○	○
	Kohler Illumination	○	○	○	○
	ECO Function (Auto Power Off After 30 Mins No Operation)	○	○	●	●
	Plane-concave Mirror	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, LED Lamp	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, 100W HBOLamp	○	○	○	○
Polarzation Set		○	○	○	○
Phase Contrast Kit		○	○	○	○

Additional information

Weight	N/A
Model	YR0239, YR0239-1, YR0240, YR0240-1
