Description

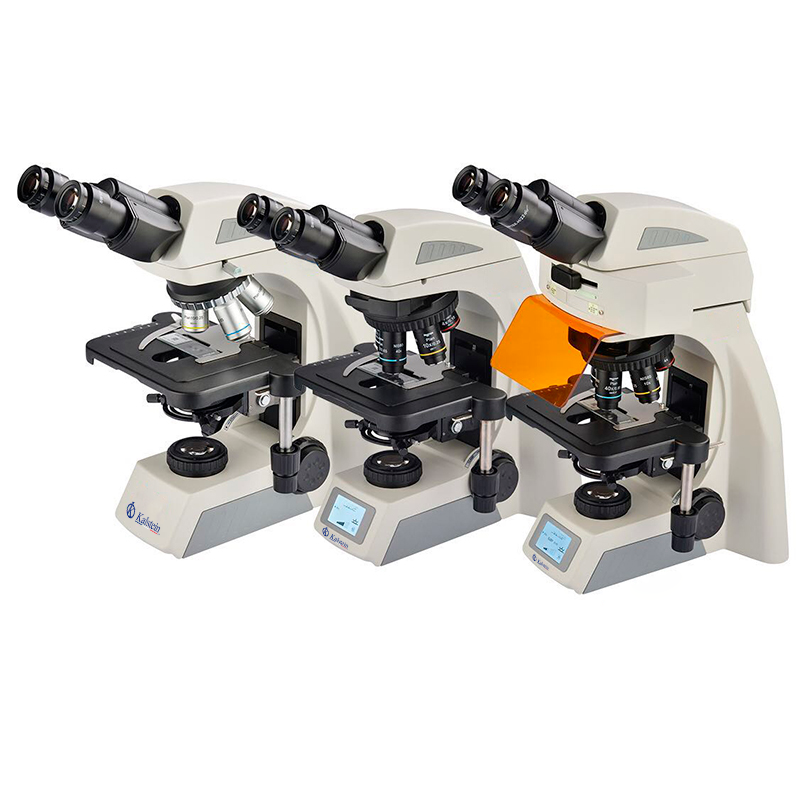

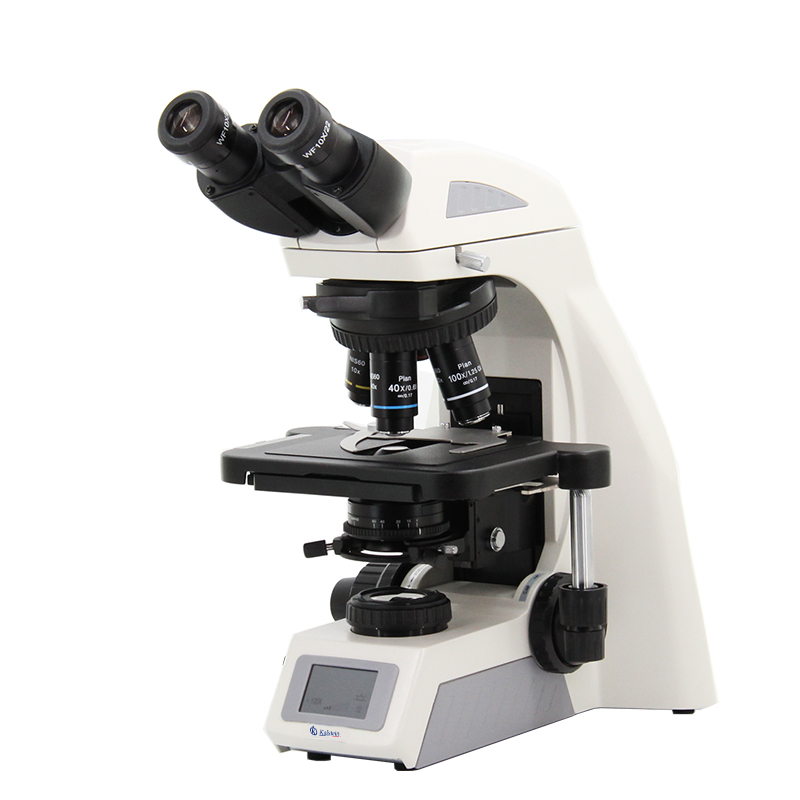

Discover the world of microscopic exploration with the Laboratory Biological Microscope YR0267A – YR0267B. Designed with cutting-edge NIS Infinity Optical System, this microscope ensures high contrast and a very flat image, making it perfect for precise biological research. Its wide field eyepieces, offering up to FN 22, guarantee sharp imaging with excellent resolution and a high signal-to-noise ratio. The coded nosepiece feature memorizes the illumination brightness when using each objective, automatically adjusting the light intensity as objectives are switched. This reduces visual fatigue and improves work efficiency significantly.
Market Price
In the market, microscopes of similar capabilities range from approximately $2,100 to $2,700. However, specific features and accessories can impact the final price. For detailed pricing, we recommend requesting a quote tailored to your specific requirements through Kalstein Plus.
Frequently Asked Questions
What are the main differences between models YR0267A and YR0267B? Both models share core features, but YR0267B offers additional head options for higher flexibility in microscopy techniques.
Can I upgrade the microscope with additional objectives? Yes, the microscope allows for optional accessories and objectives, enhancing your research capabilities.
Advantages and Disadvantages
Advantages of the YR0267A – YR0267B include state-of-the-art optics, automated light adjustment, and versatility in observation methods. A possible disadvantage is its premium pricing compared to basic models. However, the investment is justified by the enhanced accuracy and efficiency in laboratory settings.
Product Use in the Field
This microscope is ideal for laboratories requiring precise and detailed imaging. Its versatility in different observation methods such as Bright Field, Dark Field, and Phase Contrast makes it suitable for diverse biological studies and clinical diagnostics. Accurate measurements and reproducible results make it indispensable in research and teaching environments.
Recommendations
To maximize its performance, regularly calibrate the microscope and keep the optical lenses clean. Investing in quality objectives can further enhance your research results. We recommend consulting with a Kalstein Plus expert for tailored accessory options and maintenance advice.
Features
- NIS Infinity Optical System for high-resolution imaging.
- Coded nosepiece for automatic light intensity adjustment.
- Seidentopf head options with various configurations.
- Wide field eyepieces ensuring a large field of view.
- Flexible observation methods including Dark Field and Epi-Fluorescence.
Technical Specifications
| Model | Cata. No. | YR0267A | YR0267B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YR0267B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YR0267B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YR0267B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YR0267B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YR0267B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YR0267B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YR0267B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YR0267B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YR0267B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YR0267B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YR0267B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YR0267B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YR0267B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YR0267B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YR0267B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YR0267B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YR0267B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YR0267B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YR0267B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YR0267B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YR0267B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YR0267B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YR0267B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YR0267B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YR0267B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YR0267B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YR0267B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YR0267B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YR0267B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YR0267B-op31 | ○ | ○ |
| Phase Slider For 100x | YR0267B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YR0267B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YR0267B-op34 | ○ | ○ | |
| Filter V | YR0267B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YR0267B-op36 | ○ | ○ |
| 0.5x C-Mount | YR0267B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
