Description

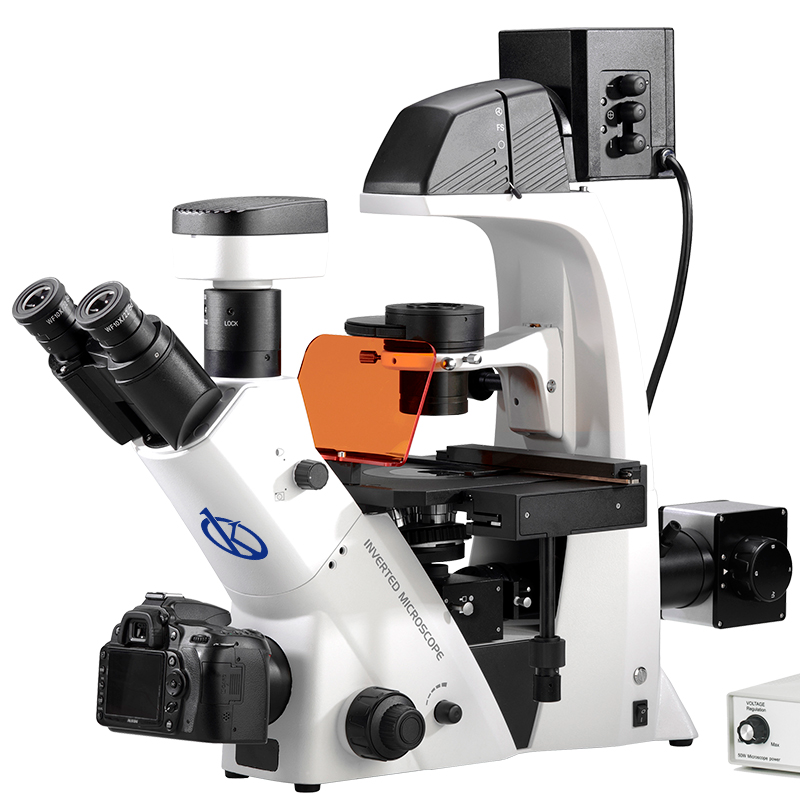

The Inverted LED Fluorescent Microscope YR05791 – YR05792 is an advanced optical device designed to meet the diverse needs of modern laboratories. Featuring a Seidentopf Trinocular Head inclined at 45° with an interpupillary distance ranging from 48 to 76mm, this microscope ensures ergonomic comfort and ease of use during extended observation periods. It comes equipped with a variety of lenses, including LWD Infinity Plan Phase Contrast Fluorescent Objectives with magnifications of 4x, 10x, 20x, and 40x, making it ideal for detailed specimen examination. The incorporation of Koehler Illumination Halogen 12V/50W, coupled with LED options, provides superior light quality and consistency, crucial for high-resolution imaging.

Market Price

In the highly competitive market of advanced microscopes, the price for a high-quality inverted LED fluorescent microscope generally ranges between $9,500 and $10,500. This range reflects the cutting-edge technology and superior optical performance offered by models like the YR05791 – YR05792. It’s essential to consider the long-term benefits and return on investment when choosing such an advanced piece of equipment.

Frequently Asked Questions

• What is the working distance of the microscope? The working distance is 72mm with the condenser and 195mm without the condenser.
• Does this model include an automatic power-off feature? Yes, it has an ECO automatic power-off system that switches off after 10 minutes of inactivity and powers back on when user presence is detected.
• Is this microscope compatible with digital cameras? Yes, it includes a photo adapter designed for Canon SLR digital cameras.

Advantages and Disadvantages

Advantages: This model’s main benefits include its high optical clarity, ergonomic design, versatile illumination options, and a powerful automatic power management system. Disadvantages: As a high-end product, its initial cost may be higher compared to entry-level microscopes, requiring a significant upfront investment.

Product Usage in the Field

The Inverted LED Fluorescent Microscope is ideal for research laboratories, universities, and medical facilities. Its precision and adaptability make it suitable for life sciences, material sciences, and education, offering unparalleled image quality and flexibility for various examination needs.

Recommendations

Ensure regular maintenance for optimal performance, including cleaning optical components with suitable cleaning solutions and checking the alignment of the optical path periodically. Utilize the ECO mode to save energy and prolong lamp life.

Features

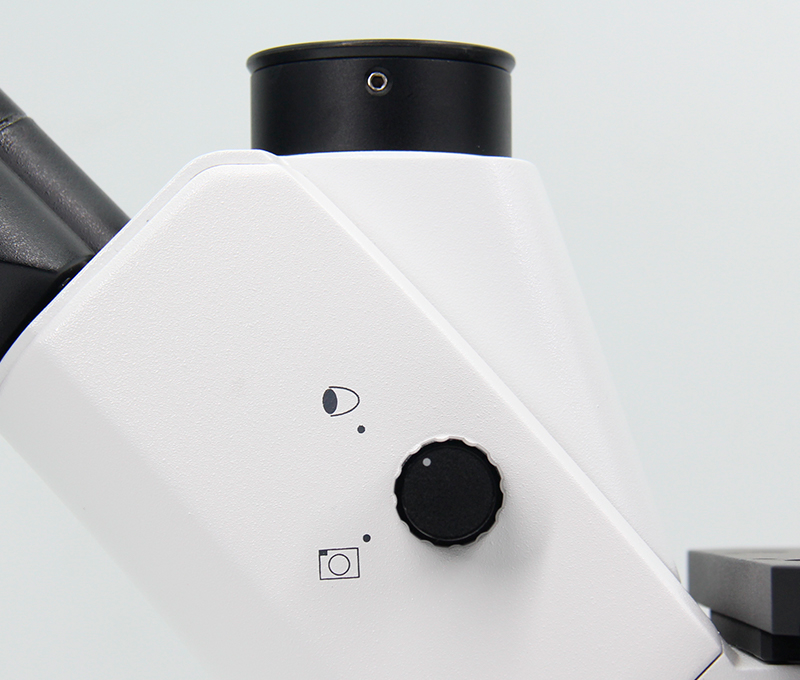

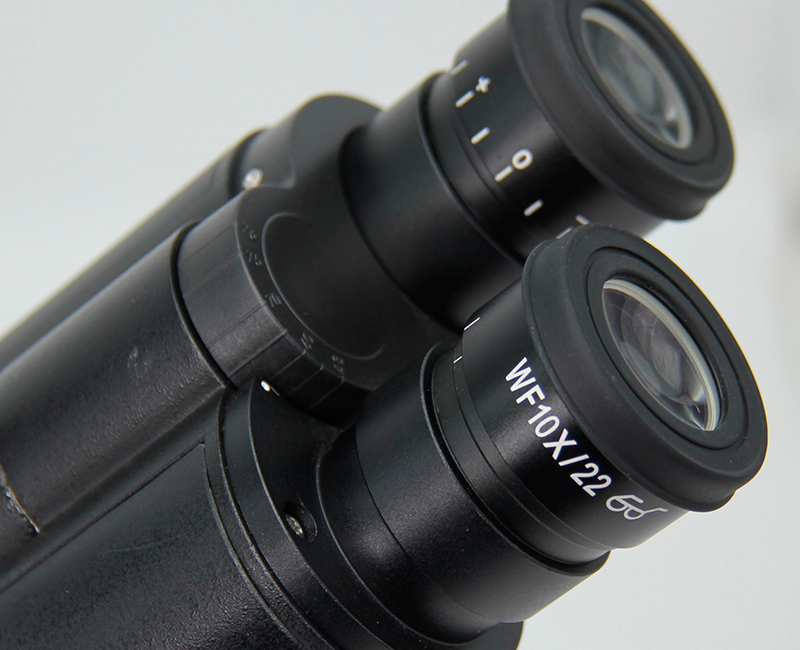

• Seidentopf Trinocular Head inclined at 45°

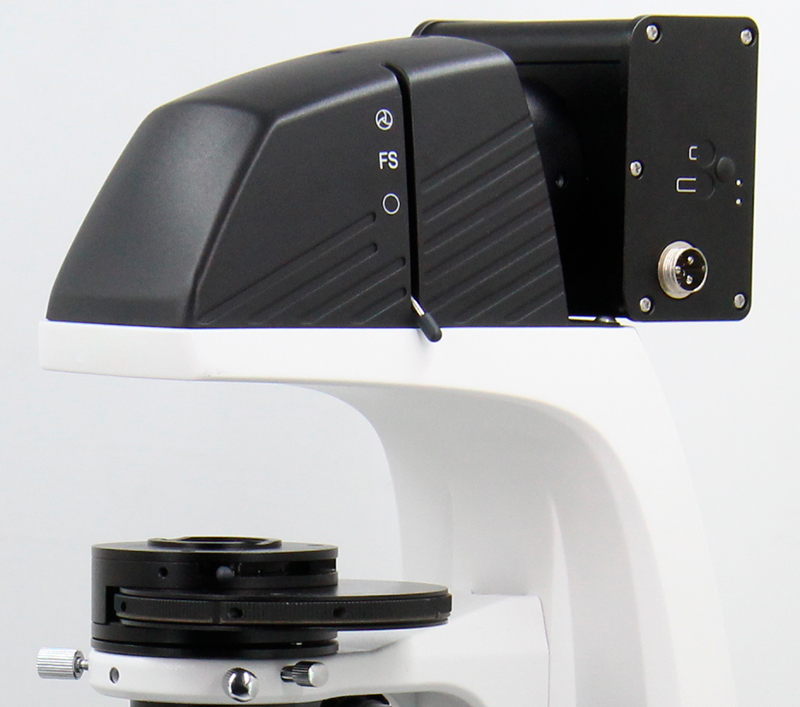

• Koehler Illumination Halogen 12V/50W and LED options

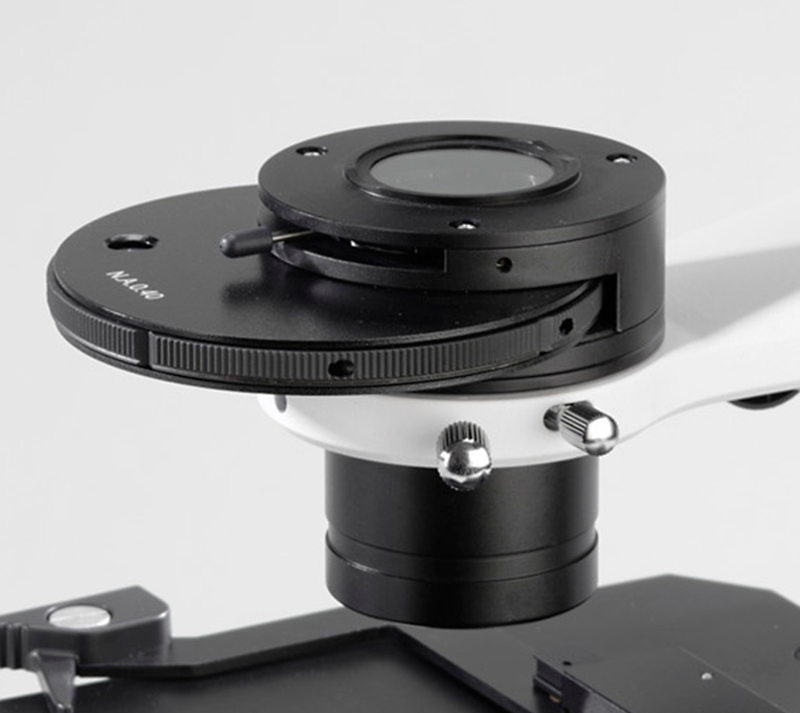

• Working distance: 72mm with condenser, 195mm without condenser
• LWD Infinity Plan Phase Contrast Fluorescent Objectives
• Mechanical Stage Size: 210x241mm
• ECO automatic power-off system
• Photo adapter for Canon SLR digital cameras
• China Fluorescent Filter and Ultraviolet Protection Barrier

Technical Specifications
