Description

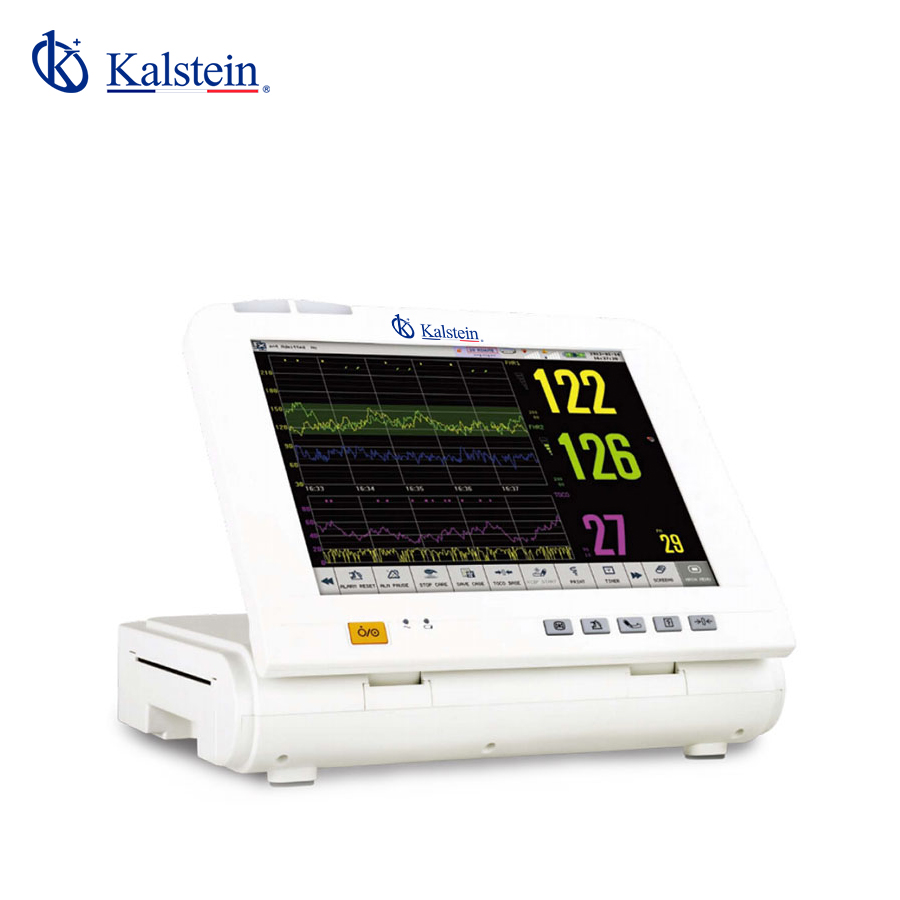

The Fetal Monitor YR02190C is an advanced diagnostic tool designed to provide accurate and reliable fetal monitoring for medical professionals. Featuring a 12.1-inch color TFT touchscreen with a resolution of 800×600, this compact yet powerful monitor supports up to six waveforms at a time, maximizing efficiency and accuracy during evaluations. Its special DSP system and modern signal recognition technology ensure high-quality data interpretation, while the built-in thermal array recorder enables seamless documentation. With a battery capacity of 4400mAh, it can continuously operate for up to four hours, making it a dependable choice for busy medical settings.
Market Price
In the competitive marketplace of medical devices, advanced fetal monitors can range in price, typically starting from approximately $2000 and reaching up to $2800. When considering an investment in reliable fetal monitoring solutions like the YR02190C, medical facilities can expect to find these devices within this price range, providing value and precision in patient care.
Frequently Asked Questions
- How long does the battery last? The rechargeable lithium-ion battery offers a backup of up to four hours for continuous operation.
- Is the monitor portable? Yes, its compact design and optional trolley accessory enhance its portability and adaptability in various environments.
- What configurations are included? The standard configuration includes FHR1, TOCO, FM, and a recorder, with options to include a fetal stimulator, FHR2, and trolley.
Advantages and Disadvantages
Among its advantages, the YR02190C boasts a high-resolution touchscreen, robust battery life, and precise signal processing capabilities. While the device is feature-rich, a potential downside could be the initial learning curve for users unfamiliar with its advanced features, although thorough training can quickly mitigate this.
Field Usage
The Fetal Monitor YR02190C is an essential tool in obstetric care, used extensively in hospitals and clinics for continuous monitoring of fetal health during labor. Its portability allows medical professionals to employ it in different healthcare settings, ensuring consistent care quality.
Recommendations
To maximize the benefits of the YR02190C, regular maintenance and software updates are recommended to keep the device functioning optimally. Training sessions for new users will also ensure that healthcare providers can fully utilize all the features available.
Features
- 12.1-inch color TFT touchscreen
- Six waveform capability
- Special DSP system
- Rechargeable lithium-ion battery
- Optional accessories available
Technical Specifications
| Model | YR02190C |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| TOCO Range | 0-100% |
| Resolution | 1% |
| Zero Mode | Auto/Manual |
| Non-linear error | ±8% |
| AUTO FETAL MOVEMENT (AFM) | |
| Technique | Pluse Doppler ultrasound |
| Measurement range | 0%-100% |
| Resolution | 1% |
| RECORDER | |
| Type | Built-in; thermal array |
| Channel | 6 channel waveforms |
| Mode | Fast, real time |
| Speed | 1/2/3cm/min selectable, 25mm/s(review) |
| Record width | 150mm |
| ENVIRONMENT | |
| Working Temperature | 0-40°C |
| Humidity | 15%-80% |
| Power Supply | 100-240V~, 50/60Hz±1Hz |
| Battery Type: | Rechargeable & Lithium-ion battery |
| Battery Capacity | 4400mAh |
| Battery Recharging Time | Maximum 5.5 hours for charging; |
| Battery backup | 4 hours for continuous working |
| Display | 12.1″ color TFT touch screen |
| Resolution | 800*600 |
| Trace | 6 Waveforms (Max) |
