Description

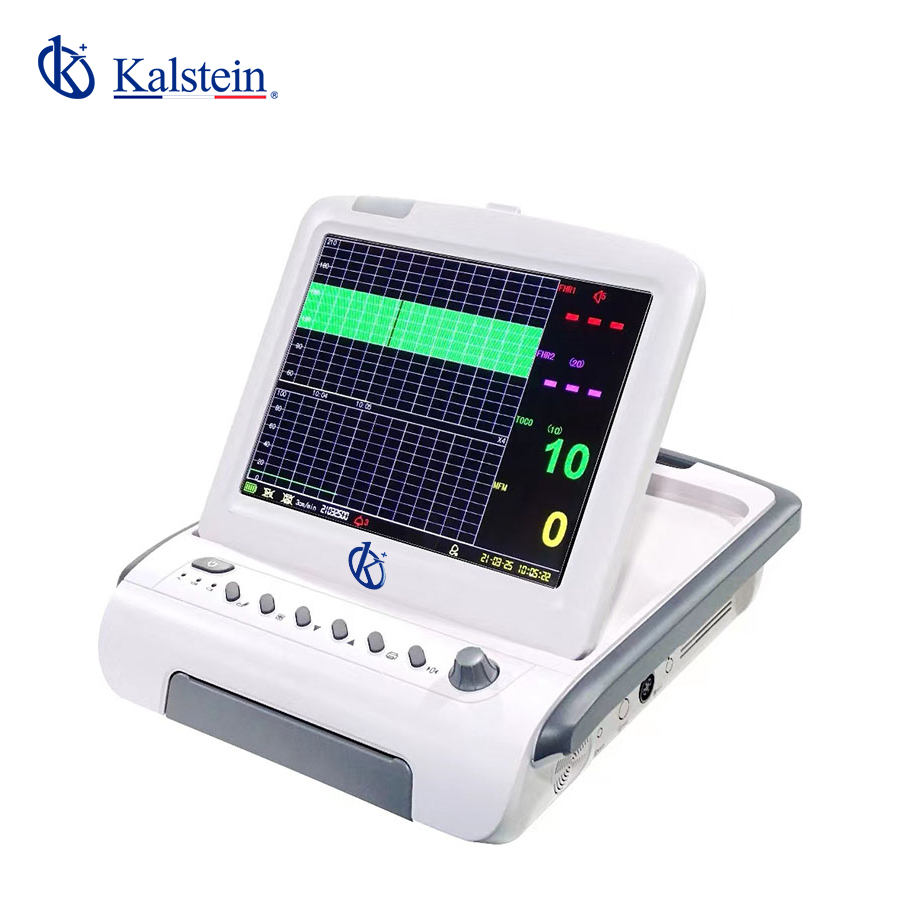

The Fetal Monitor YR02190A is a state-of-the-art device designed to ensure the safety and wellbeing of both mother and child during pregnancy. This advanced fetal monitor features a 12.1-inch color TFT display that folds 90 degrees for easy viewing. With a maximum of six waveforms, it provides comprehensive monitoring capabilities including SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, and FM. Additionally, optional configurations such as Fetal Stimulator and FHR2 are available, allowing for customized monitoring solutions. This device operates with a special DSP system for modern recognition and signal processing, making it a reliable and essential tool for healthcare professionals.
Market Price
Fetal monitors like the YR02190A are crucial tools in prenatal care, which is reflected in their market prices. Currently, such devices average between $2200 and $3000, based on features and additional configurations. The cost is justified by the innovative technology and high-quality monitoring it provides.
Frequently Asked Questions
What makes the YR02190A different from other fetal monitors? This monitor offers advanced signal processing with a modern DSP system, ensuring accurate and reliable monitoring.
Is the device easy to use? Yes, with its user-friendly interface and 12.1-inch display, the YR02190A is designed for ease of use in clinical settings.
Can this monitor be customized? Yes, optional additions like the Fetal Stimulator and FHR2 allow customization to meet specific monitoring needs.
Advantages and Disadvantages
The Fetal Monitor YR02190A offers numerous advantages, including a high-resolution display and comprehensive monitoring capabilities. It provides accurate results, crucial for fetal health assessment. However, its sophisticated technology may require some training for optimal use.
Product Use in the Field
In real-world clinical settings, the YR02190A is used to monitor fetal heart rate (FHR) and uterine contractions, ensuring timely interventions. Its comprehensive data display allows medical professionals to make informed decisions regarding maternal and fetal health.
Recommendations
To maximize the use of the Fetal Monitor YR02190A, regular calibration and maintenance are advised. Ensure to undergo adequate training to take full advantage of its advanced features. For purchasing or more detailed information, consider reaching out for a quote through our platform, Kalstein Plus.
Key Features
- 12.1 inches color TFT screen, folding 90 degrees
- Resolution: 800*600
- Trace: 6 Waveforms (Max)
- Standard Configuration: SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, Recorder
- Optional Configuration: Fetal Stimulator, FHR2, Trolley
Technical Specifications
| Model | YR02190A |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| Measurement Range | 0-100 units |
| SpO2 | |
| Measurement Range | 70%～99% |
| Measure Accuracy | ±3% error |
| HR | |
| Measurement Range | 30bpm～240bpm |
| Measure Accuracy | ±2 bpm |
| NIBP | |
| Measurement Range | SYS 6.7～32.0kPa(50～240mmHg) MEAN: 3.4～26.6kPa(25～200mmHg) DIA: 2.0～24.0ka(15～180mmHg) |
| NIBP Accuracy | ±1.1kPa（±8mmHg）or ±5% of results, taking the bigger one |
| HR Measurement Range | 40bpm～240bpm |
| HR Measure Accuracy | ±2 bpm or ±5% of the results, taking the bigger one. |
| Measure Mode | Manual to start/stop NIBP measurement |
| Temperature | |
| Arrange | 0~50 ℃ |
| Resolution | 0.1 ℃ |
| Accuracy | 0.1 ℃( excluded the error caused by transducer) |
| ENVIRONMENT | |
| Working Environment | Temperature: +5℃ ～ +40℃ |
| Atmospheric Pressure | 86kPa ～ 106kPa |
| Transport and Storage Temperature | Humidity: < 93％ Atmospheric Pressure: 86kPa ～ 106kPa |
