Description

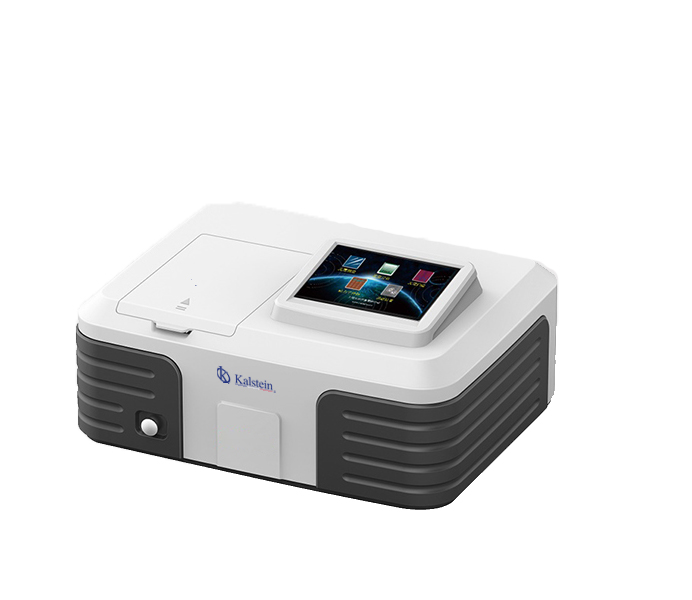

The Double Beam UV/Vis Spectrophotometer – YR01862 is a state-of-the-art instrument designed for superior accuracy and reliability. With its dual optical path and dual detector system, coupled with an imported high-performance grating, this spectrophotometer ensures lower stray light and higher stability for precise analysis. It features a 10″ touch screen and built-in 32G memory, supporting Bluetooth connectivity for seamless data transfer. Its dynamic functionalities include DNA/protein testing, multi-wavelength testing, and convenient data printing, making it an ideal choice for laboratories aiming for excellence in spectrophotometry.
Market Price
When considering the purchase of a premium spectrophotometer like the Double Beam UV/Vis, it is essential to understand the market pricing landscape. Typically, such advanced spectrophotometers range between $7,000 and $8,000. While actual prices can vary depending on additional features or promotions, investing in this spectrophotometer ensures long-term value and accuracy.
Frequently Asked Questions
What is the wavelength range of this spectrophotometer? The Double Beam UV/Vis Spectrophotometer operates within a wavelength range of 190-1100nm.
Is the device compatible with external printers? Yes, the instrument can connect directly to external printers for A4 format data and graphic printing.
Advantages and Disadvantages
The primary advantages of this spectrophotometer include its high precision, stability, and user-friendly interface. It is highly reliable for various tests, including DNA/protein analysis. However, a possible disadvantage could be its initial investment cost, which is reflective of its advanced capabilities and performance.
Product Use in the Field
In practical applications, the Double Beam UV/Vis Spectrophotometer is instrumental in research and diagnostic laboratories for precise measurement of sample absorbance. Its robust design ensures that vibration does not impact the optical system, thereby maintaining accuracy even in demanding conditions.
Recommendations
To maximize the lifespan and performance of your spectrophotometer, ensure regular maintenance and calibration. Utilize the suspension design feature to prevent vibrations from affecting measurements and harness the built-in memory and connectivity options for efficient data management. For more details or to request a quote, explore our Kalstein Plus platform for an automated quotation experience.
Features
- Dual optical path and detector system
- 10″ touch screen interface
- Bluetooth connectivity and 32G built-in memory
- Multi-wavelength and DNA/protein testing capability
- Advanced suspension design for vibration resistance
- USB port for data and printing output
Technical Specifications
| Model | YR01862 | YR01862-1 | |
| Wavelength Range | 190-1100nm | ||
| Spectral bandwidth | 1.8 nm | 0.5, 1.0 2.0, 4.0nm | |
| Wavelength Accuracy | ±0.1nm(D2 656.1nm),±0.3nm at full range | ||
| Stray light | 0.03% T @ 220 nm, 360 nm | ||
| Wavelength Repeatability | ≤0.1nm | ||
| Photometric Accuracy | 士0.2%T(0-100%T)
±0.002Abs(0-0.5Abs) ±0.004Abs(0.5-1.0Abs） |
||
| Photometric Repeatability | ≤0.1%T(0-100%T)
0.001Abs(0-0.5Abs) 0.002Abs(0.5-1.0Abs) |
||
| Stability | 士0.0004A/h@500nm | ||
| Photometric Range | 0-200%T, -0.3-3.0A, 0-9999C | ||
| Baseline flatness | 士0.001A | ||
| Noise | 士0.0004A | ||
| Display | 800*480 touch screen | ||
| Data Output Port | USB | ||
| Print Port | USB Port | ||
| Light source | Tungsten Lamp & Deuterium Lamp | ||
| Power Requirements | AC 220V/50Hz or AC 110v/60Hz | ||
| Detector | Silicon Photodiode | ||
| Dimension | 630*430*210nm | ||
| Weight | 28KG | ||
