Description

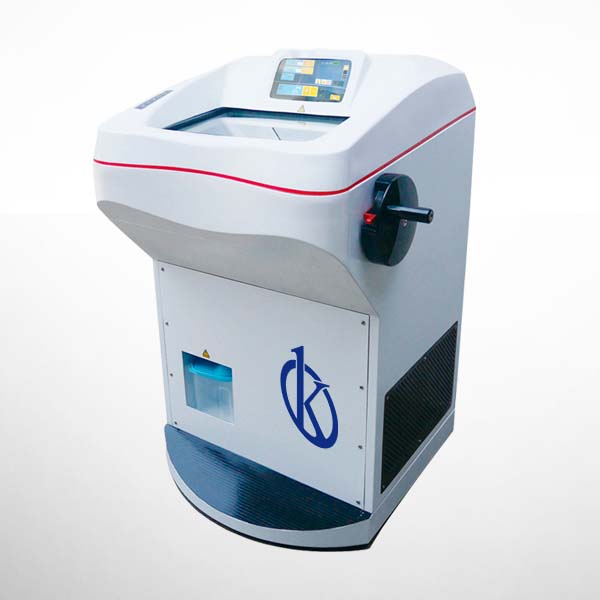

The Cryostat Microtome YR426-1 is a state-of-the-art class one medical equipment designed for rapid pathological section analysis of human, animal, and plant tissues. Widely utilized in hospitals, medical schools, forensic laboratories, and research units, this device plays a crucial role in pathological diagnosis, analysis, and research. With its advanced microcomputer control panel, quick-freezing capabilities, and robust mechanical design, the YR426-1 is engineered to meet the highest standards of efficiency and precision. Contact us today to request a quote or use our Kalstein Plus platform for an instant quotation!
Market Price
The Cryostat Microtome YR426-1 is priced competitively within the market. On average, similar products can range from $20,300 to $21,100 depending on the supplier and any additional features or services provided. For a specific quote tailored to your needs, please contact us directly or generate an automatic quotation through Kalstein Plus.
Frequently Asked Questions
- What are the main uses of the Cryostat Microtome YR426-1? The device is used for rapid freezing and thin sectioning of biopsy tissues for pathological examinations.
- Is the Cryostat Microtome easy to operate? Yes, it features a user-friendly touch screen interface and supports both Chinese and English languages, making it accessible for users worldwide.
- What is the safety mechanism for users? The device includes a blade guard to ensure user safety during operations.
Advantages and Disadvantages
Advantages: The Cryostat Microtome YR426-1 offers precise temperature control from 10℃ to -50℃ and additional semiconductor refrigeration down to -60℃. It supports up to 36 freezing stations, enhancing throughput and efficiency.
Disadvantages: The complexity of the machine may require initial training for optimal use, and its size may not be suitable for smaller labs with space constraints.
Product Usage in the Field
In practical applications, the YR426-1 is instrumental in quickly preparing tissue samples for microscopic examination. Researchers and medical professionals rely on this device for its speed and accuracy, significantly reducing the time between specimen collection and analysis, which is critical in clinical and research settings.
Recommendations
To maximize the longevity and performance of the Cryostat Microtome YR426-1, ensure regular maintenance according to the manufacturer’s guidelines. Proper cleaning, especially of the freezing chamber and knife holder, will help maintain hygiene and operational efficiency. Utilizing the hibernation function can also conserve energy when the device is not in immediate use.
Characteristics
- 10-inch color LCD touch screen for intuitive operation
- Humanized hibernation function for energy saving
- Secure knife holder with blade guard
- 360° locking handwheel for safety in any position
- X-axis 360°, Y-axis 12° universal rotation for versatility
- Enhanced temperature control and monitoring
- Anti-adhesive tissue flattening device
- UV disinfection method for enhanced hygiene
- Imported dual compressors for efficient refrigeration
Technical Specifications
| Model | YR426-1 |
| Chamber Temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
| Section thickness range | 0.5μm～100μm Adjustable
0.5μm～5μm Increment0.5μm 5μm～20μm Increment1μm 20μm～40μm Increment2μm |
| Trimming thickness range | 10μm～600μm Adjustable
10μm～50μm Increment5μm 50μm～100μm Increment10μm 100μm～600μm Increment50μm |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
| Extra Advantages | |
| The 10-inch color LCD touch screen can separately display the total number of slices and the
total slice thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and English operation interface, which is convenient for different users all over the world to operate. |
|
| Humanized hibernation function: After selecting the hibernation state, the temperature of the
freezer compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the sectioning temperature can be reached within 15 minutes. |
|
| Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively. | |
| Equipped with rubber instrument rack and waste box | |
| X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the organization | |
| The knife holder is equipped with a blade thruster and a knife guard to cover the full length of
the blade, which protects the user safely. |
|
| Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°, which is convenient for freezing the tissue and saving operation time | |
| The temperature sensor self-checking function can automatically detect the working status of
the sensor |
|
| Hand wheel positioning 360° locking function at any point | |
| Single-layer heated glass door, effectively preventing water mist condensation | |
| The sample chuck travels to the limit position and automatically returns to the starting position function | |
| Dimension size(mm) | 700×760×1160mm |
| Weight | 135 KGS |
