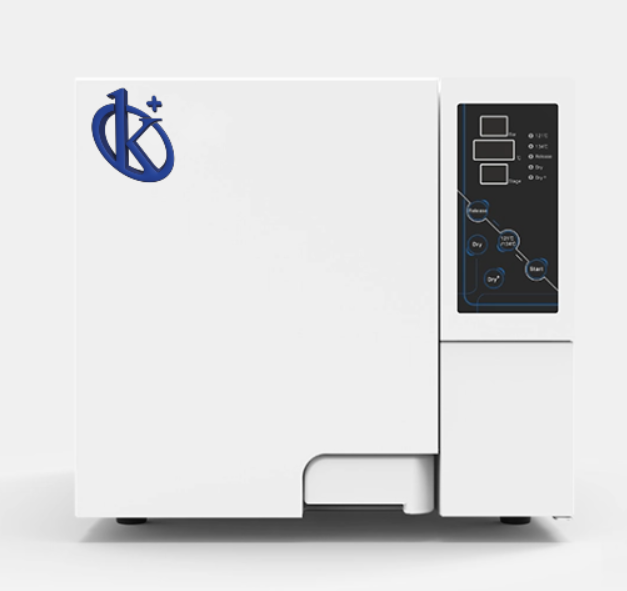

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 is a compact and efficient sterilization solution tailored for medical, dental, and laboratory environments. Operating with pre-programmed cycles at 134°C and 121°C, this autoclave effectively disinfects solid, cavity-free instruments. Void of an internal steam generator or water tank, users have the autonomy to manually fill the chamber, granting complete control over each phase. Its LED screen ensures transparent communication regarding temperature, pressure, and cycle status, accompanied by safety alerts for smooth and secure operation. This model is particularly adopted in settings requiring regular sterilization with minimal space usage and cost constraints.

Market Price Overview

In the market, benchtop autoclaves similar to the Class N models generally range between $1,100 and $1,800 USD. These figures reflect the blend of functionality and reliability that such devices offer, providing excellent value for money without compromising on performance.

Frequently Asked Questions

How often should the autoclave be filled with water? It’s recommended to refill the chamber before every cycle to ensure effective sterilization.

Is the autoclave suitable for all types of instruments? This model is best for solid instruments without cavities or wrappings.

What kind of maintenance does the autoclave require? Regular cleaning and the exclusive use of distilled water are advised to extend its lifespan.

Advantages and Disadvantages

The Class N Benchtop Autoclave emerges as a reliable choice due to its compact size, user-friendly interface, and low maintenance costs. It features a vital safety system with automatic locks for pressurized chambers. On the flip side, the requirement for manual filling can be cumbersome for high-frequency users, necessitating vigilance and limiting unattended operations.

Field Usage

This autoclave model proves invaluable in dental clinics, veterinary settings, and small labs. It supports frequent sterilization cycles needed to maintain high biosecurity standards, without demanding significant space. Its versatile structure accommodates frequent use with straightforward instruments, proving indispensable in maintaining hygiene without overstretching budgets or spatial limitations.

Recommendations

To prolong the operational life of your autoclave, always use distilled water, conduct regular internal cleaning sessions, and avoid overloading. Verify all parameters before initiating each cycle to ensure accurate and efficient sterilization. For further cost efficiency and convenience, consider generating an instant estimate via the Kalstein Plus platform to explore comprehensive benefits for your medical or laboratory setting.

Features

  • Compact and efficient design
  • Standard pre-programmed cycles
  • User manual filling for complete process control
  • LED screen for real-time updates
  • Automatic safety lock system

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60z
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L), 192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
