Description

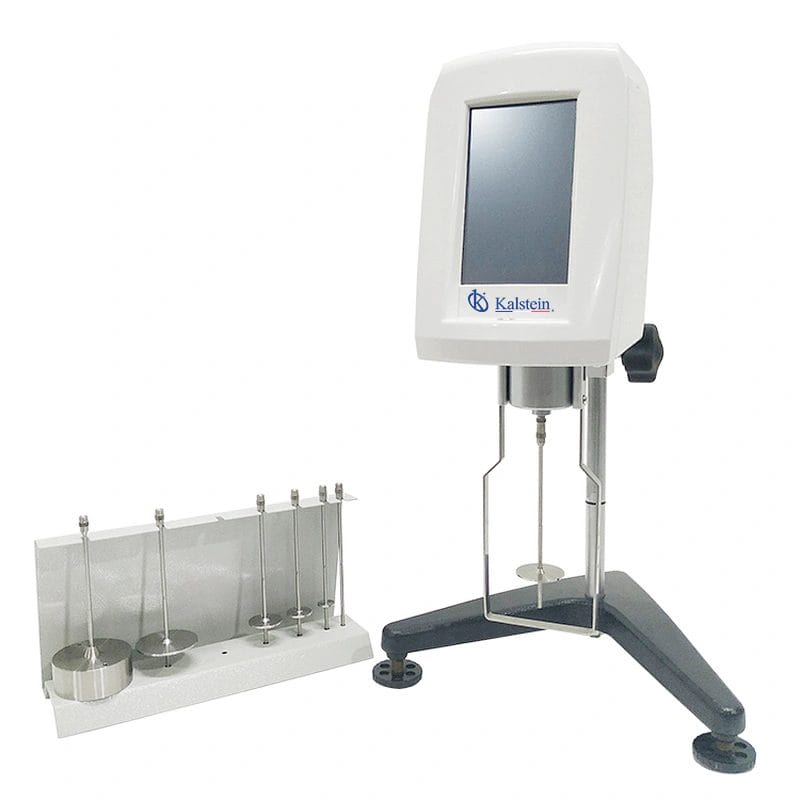

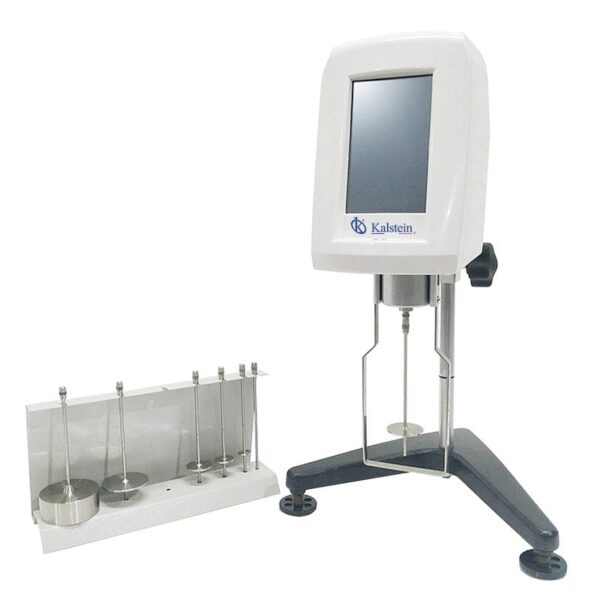

The Brookfield Viscosity Tester YR05860 // YR05864 offers an advanced blend of touch-screen technology and precise viscosity measurements. Known for its high accuracy and robust anti-interference performance, this device can handle both dynamic and kinematic viscosity, displaying vital parameters like temperature, shear rate, and shear stress on its 5-inch color touch screen. Ideal for industries such as paint, cosmetics, and food processing, the tester’s extensive measuring range and intuitive operation make it a go-to tool for professionals seeking dependable and detailed data.
Market Price
Viscosity testers like the Brookfield series often range in price due to their advanced technological features and high precision measurements. Typically, the market price for this type of equipment can be found between $6,500 and $7,350, offering excellent value for laboratories and industrial applications looking for reliability and versatility in their viscosity testing.
FAQs
What materials can the Brookfield Viscosity Tester measure? The tester is suitable for high viscosity materials, including paints, cosmetics, inks, and other industrial products.
Is the device easy to operate? Yes, its touch-screen interface and intuitive operation make it user-friendly, even for those new to viscosity testing.
Advantages and Disadvantages
The Brookfield Viscosity Tester stands out for its precise measurements and extensive parameter display. Its advantages include high measurement precision, user-friendly interface, and versatility in material measurement. However, the comprehensive functionality may be more advanced than necessary for basic laboratory needs, potentially overwhelming novices without proper training.
Product Use in the Field
In practical scenarios, the Brookfield Viscosity Tester is employed to assess product stability and performance. Industries can leverage its data for quality control, ensuring consistency in production processes. With features like automatic calibration and real-time viscosity curve display, it empowers technicians to make informed decisions swiftly.
Recommendations
To maximize the lifespan and accuracy of your viscosity tester, periodic calibration is recommended. Additionally, keeping the touchscreen and sensor components clean will ensure optimal performance. Consider integrating the device with a computer to take full advantage of its real-time data analysis capabilities.
Features
The Brookfield Viscosity Tester is packed with features including ARM technology, built-in Linux OS, automatic computer calibration, and a diverse measurement range. Its display not only shows viscosity but also temperature, shear rate, and other critical parameters for comprehensive analysis.
Technical Specifications
| Model | YR05860 | YR05861 | YR05862 | YR05863 | YR05863-1 | YR05864 |
| Display | 5-inch color touch screen | |||||
| Test range (mPa.s) | 100-13,000,000 | 200-26,000,000 | 800-104,000,000 | 100-40,000,000 | 200-80,000,000 | 800-320,000,000 |
| Speed (r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options |
0.1–200 infinitely variable speed, a total of 2000 speed options | ||||
| Rotor | R2 – R7(6 rotors, Standard), ULR(Optional for low viscosity material) | |||||
| Sample volume | 500 ml | |||||
| Test error | ±1% (Newtonian liquid) | |||||
| Repetitive error | ±0.5% (Newtonian liquid) | |||||
| Interface | Two RS232 interface | |||||
| Power | Wide voltage work (110V / 60Hz or 220V / 50Hz) | |||||
| Packing | 580*350*350mm & 440*380*450mm | |||||
| Function | Show shear response / shear rate; Timing function Show curve: Time-viscosity curve Show curve: Temperature-viscosity curve(should optional temperature probe) Show curve: shear rate and viscosity curves(should optional PC software) kinematic viscosity: Density of samples to be entered Automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity Self-built Measuring Procedures: Save 30 groups (including rotor, speed, temperature, time, etc.) Preservation of measurements: Save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress,time, density, kinematic viscosity, etc.) |
|||||
