Description

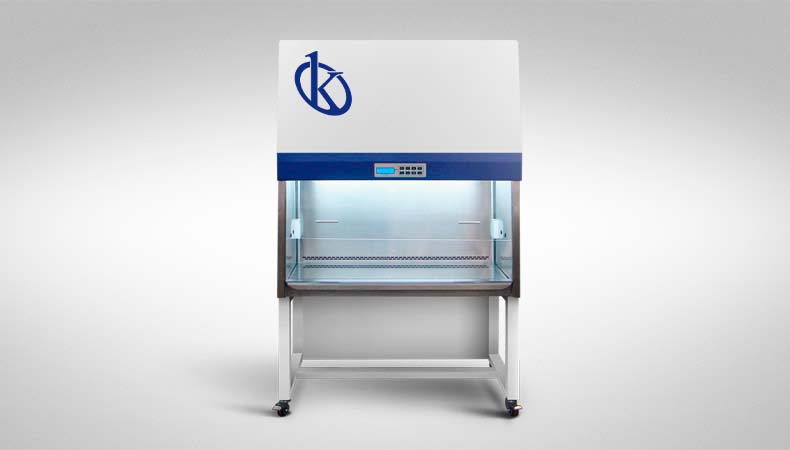

The Biological Safety Cabinet YR05270-1 and YR05271-1 are top-notch microbiological safety cabinets designed to provide a safe and controlled environment for handling materials that may be contaminated with pathogens. Equipped with the advanced CLEANFLOW™ technology, these cabinets ensure optimal air cleanliness and minimal noise operation thanks to their German EBM high airflow and low energy consumption fans. Their ergonomic design not only increases user comfort but also includes features like explosion-proof tempered glass for enhanced safety. With a focus on durability, precision, and ease of maintenance, these cabinets are ideal for laboratories aiming for superior safety and performance.
Market Price
The price for high-quality biological safety cabinets like the YR05270-1 and YR05271-1 can generally range between 6,500 USD to 7,300 USD. This price range reflects a commitment to advanced technology and superior safety features, ensuring great value for laboratories that require reliable protection and efficiency.
Frequently Asked Questions
- What is the main purpose of the Biological Safety Cabinet?
The cabinet is designed to provide a sterile and safe environment for handling hazardous pathogens. - How easy is it to clean the cabinet?
The cabinet features a seamless stainless-steel working surface that is corrosion-resistant and easy to clean. - Can I adjust the fan speed?
Yes, the fan speed is adjustable, allowing you to tailor the airflow according to your requirements.
Advantages and Disadvantages
- Advantages: Advanced air filtration system, user-friendly interface with an LCD screen, ergonomic design, easy maintenance, and reliable safety alerts.
- Disadvantages: The initial investment is higher compared to basic models, but it is justified given the advanced features and safety guarantees.
Product Use in the Field
The Biological Safety Cabinet YR05270-1 and YR05271-1 are commonly used in microbiological labs, pharmaceutical testing environments, and other biomedical applications. They ensure a controlled and contaminant-free area for sensitive experiments and handling of infectious materials.
Recommendations
To maximize the lifespan and efficiency of your safety cabinet, it is recommended to regularly check and replace HEPA filters, monitor sensor alerts, and ensure that the cabinet is used within the specified environmental conditions.

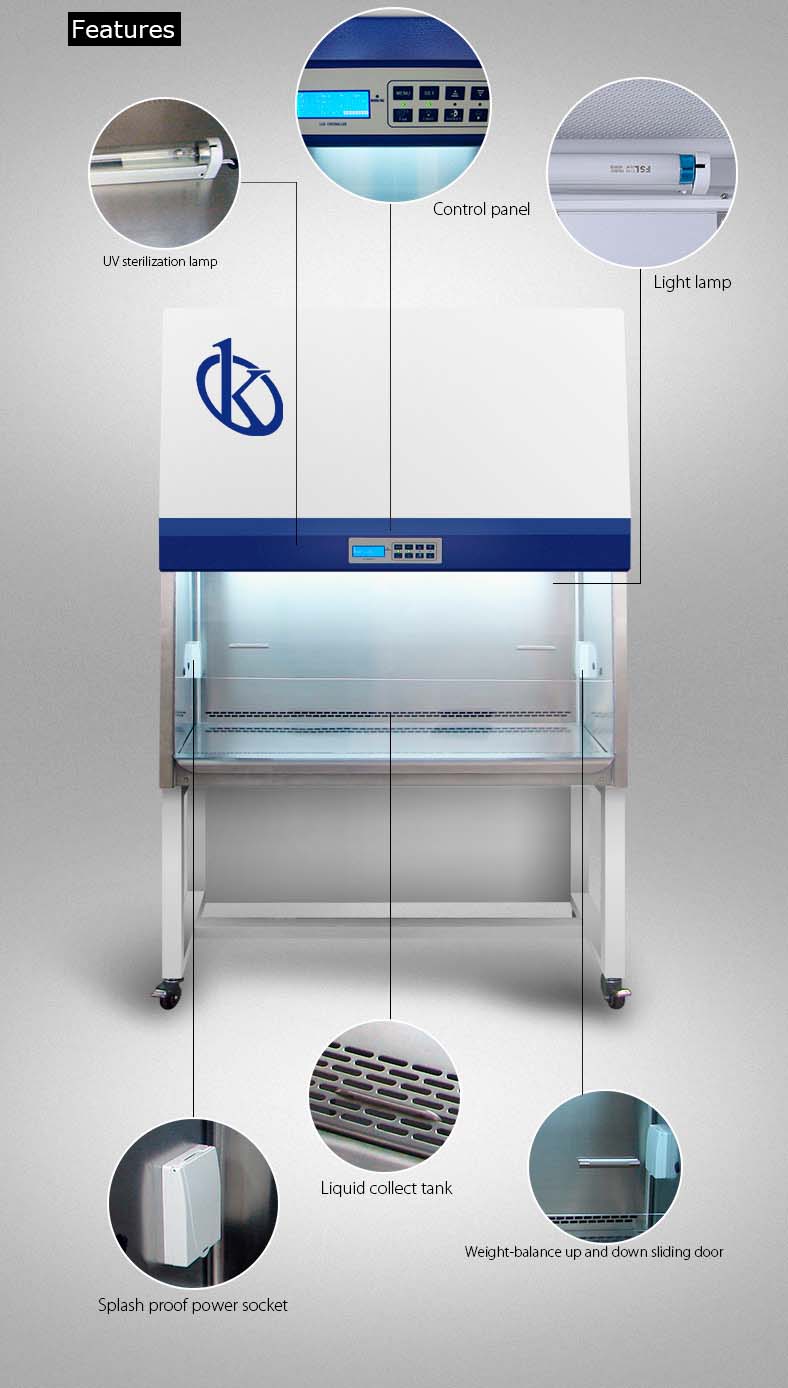

Features

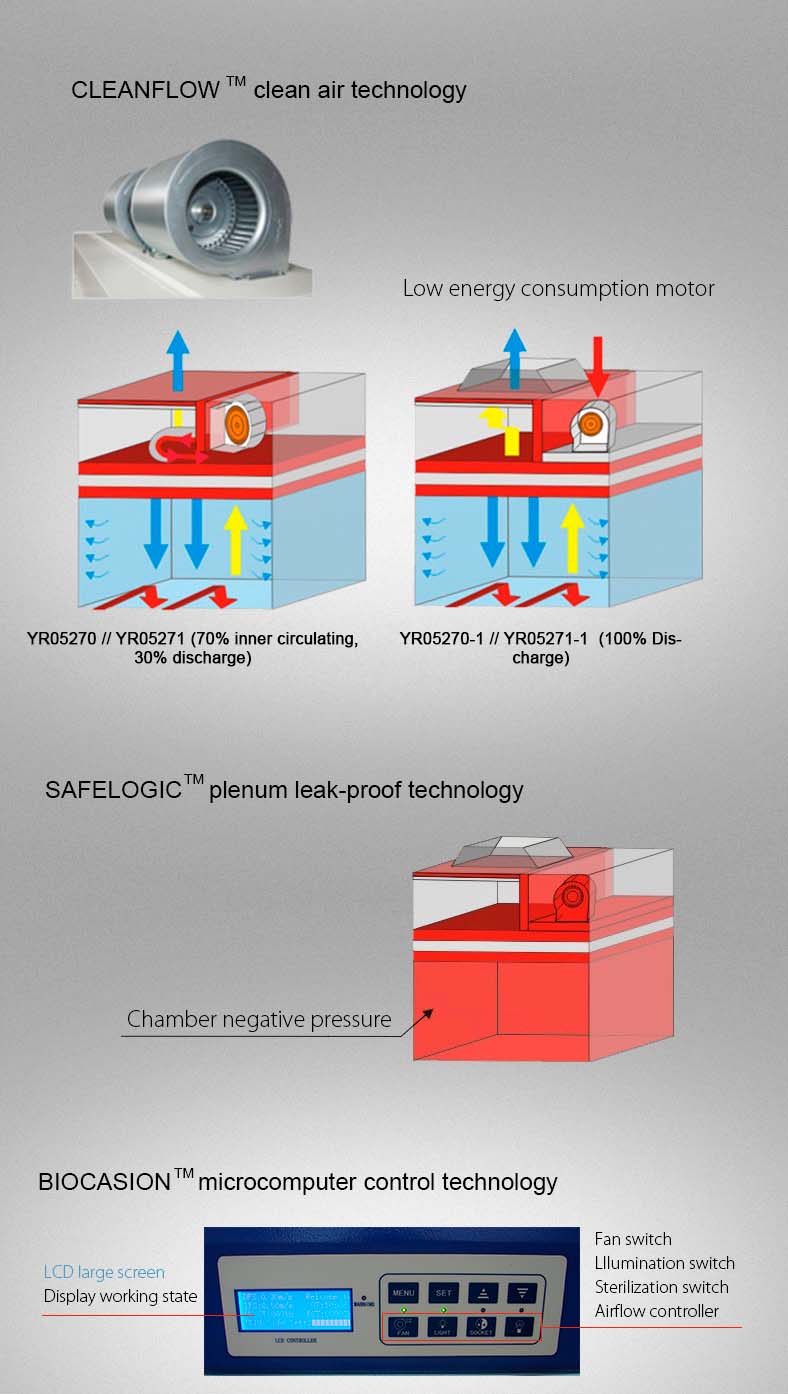

- Equipped with CLEANFLOW™ air technology to ensure low noise and high air quality.
- SAFELOGIC™ technology for leak-proof operation.
- User-friendly controller system with an integrated LCD screen.

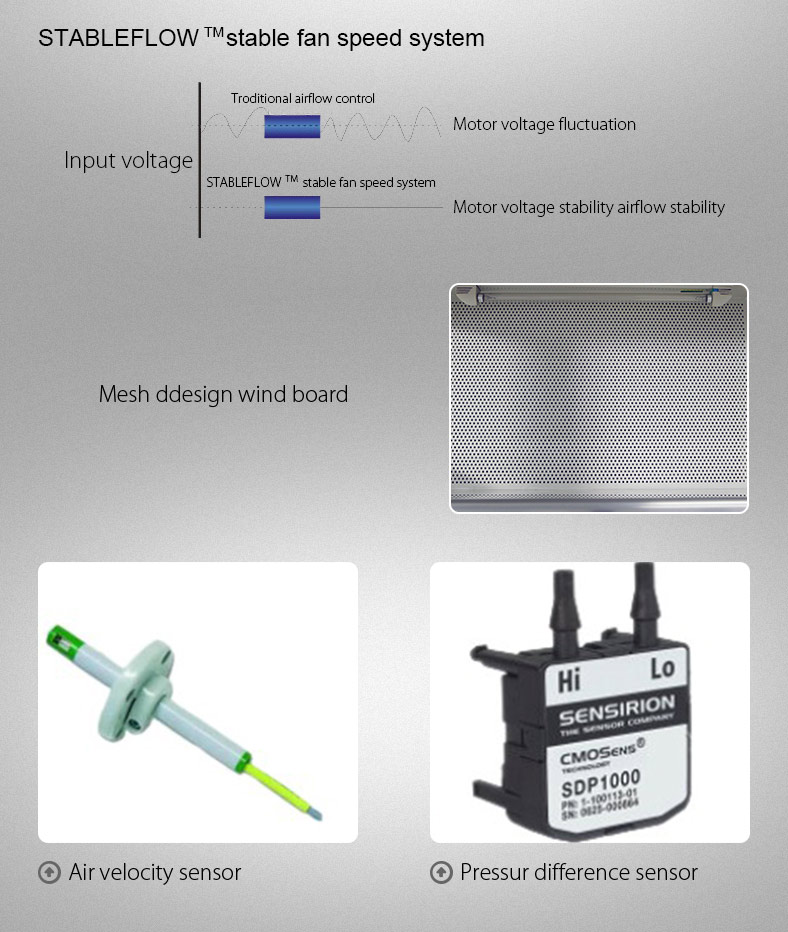

- Adjustable fan speed based on operational requirements.

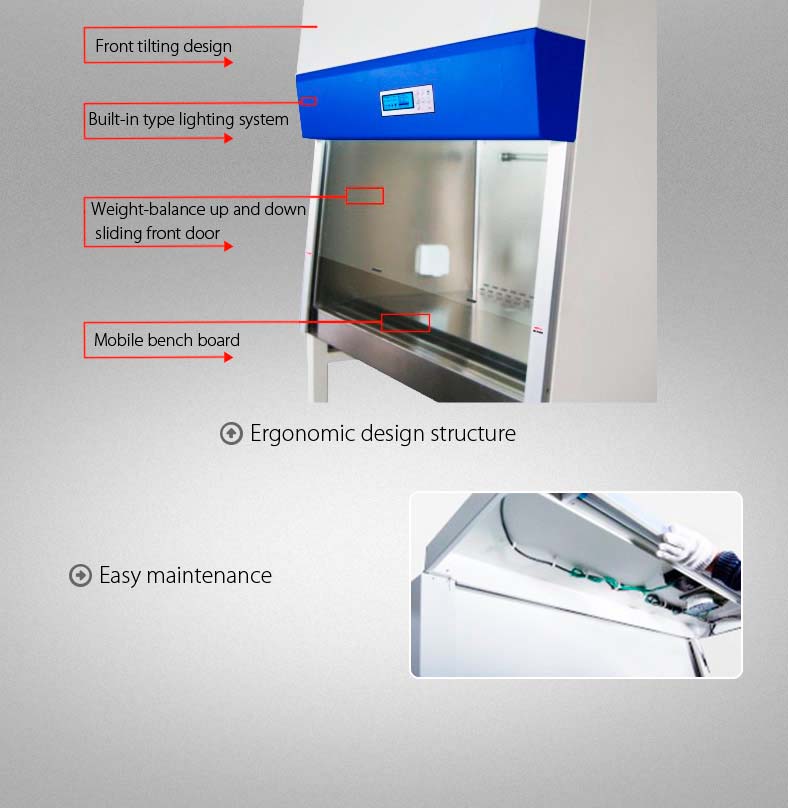

- Ergonomically designed for operator comfort with anti-UV tempered glass protection.
- Composed of durable materials with modern manufacturing processes for longevity.
Technical Specifications
| Model | YR05270-1 | YR05271-1 |
| Clean Rating | International standard ISO14644.1 CLASS 5(US209E,CLASS 100) | |
| Inflow Velocity | 0.53m/s | |
| Down Flow Velocity | 0.35m/s | |
| Down Flow Velocity Precision | ±0.015m/s | |
| Noise Level(dB) | ≤65 | |
| Vibration | ≤3μm(X、Y、Z direction) | |
| HEPA | Efficiency 99.995% | |
| Light Intensity(LX) | ≥650 | |
| Pressure Difference Range (Pa) | 0~500 | |
| Operate Environment | environment temp.10-30℃,relative humidity under 70%, no obvious vibration and dust | |
| External Dimensions (H*W*D) (mm) | 2120×1035×740 | 2120×1340×740 |
| Dimension of Working Zone (H*W*D) (mm) | 670×965×560 | 670×1260×560 |
| Power Supply | ||
| Power(W) | 300 | 350 |
| Net Weight (KG) | 175 | 210 |
| Gross Weight (KG) | 195 | 235 |
| Package Size (H*W*D) (mm) | 1710×1205×910 | 1710×1510×910 |
