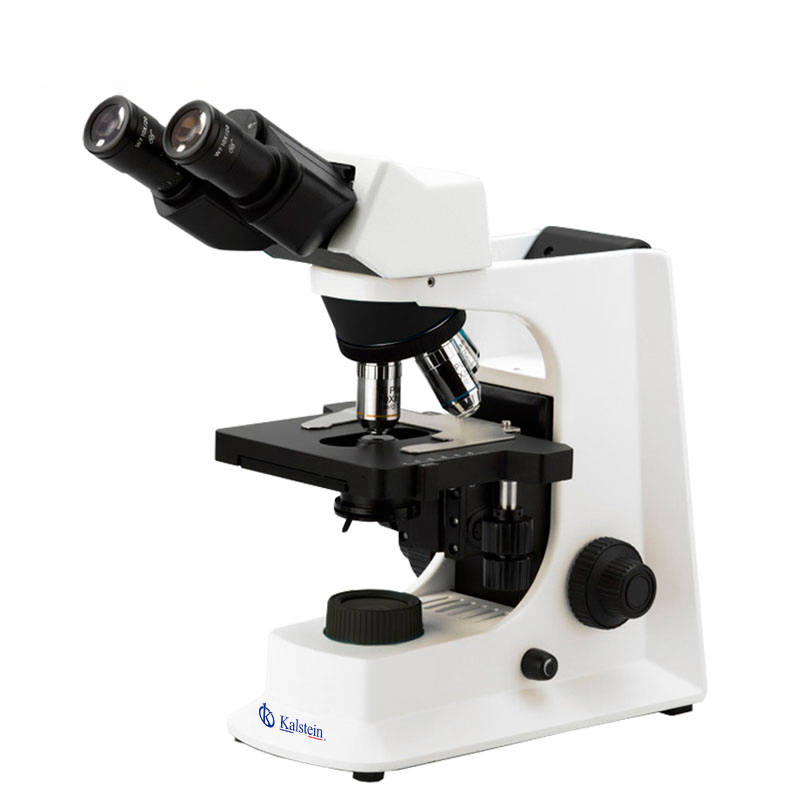

Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788

Description

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788 is an advanced microscopy instrument designed for precision in biological research. This model features a 30° inclined and 360° rotatable head, providing adaptability for diverse research needs. Its high eyepoint eyepiece accommodates users with varying sitting heights, enhancing comfort during extended use. The integration of the eyepiece lens barrel minimizes contamination risk and improves efficiency. With options for achromatic, plan, infinity e-plan, and infinity plan objectives, this microscope is designed to meet the demands of various laboratory applications. The mechanical stage and Abbe condenser with LED illumination systems offer precise control and accurate focusing, essential for detailed analysis.

Market Price

The Binocular Infinity Plan Laboratory Biological Microscope typically falls within a price range of $900 to $1,700 in the market. This competitive range reflects the advanced features and robust design suitable for research and educational purposes. For exact pricing, we recommend our users to obtain a quote directly through our platform.

Frequently Asked Questions

What type of objectives does this microscope support? This model supports achromatic, plan, infinity e-plan, and infinity plan objectives, providing versatility for various imaging needs.

Can this microscope be used for outdoor research? Yes, with its LED illumination system powered by a safety low voltage charger, it supports power bank supply for outdoor use.

Advantages and Disadvantages

Advantages: This microscope offers excellent versatility with its variety of objectives and mechanical precision. The eyepiece design enhances user comfort, making it ideal for prolonged use. Its LED illumination system ensures clear and bright images.

Disadvantages: Some users might find the wide range of features overwhelming if they require only basic microscopy functions.

Field Use

In real-world applications, this microscope excels in detailed examination and analysis. Whether in a laboratory or field setting, its robust design and versatile objectives allow for in-depth study of various specimens, making it an invaluable tool for biological and medical research.

Recommendations

To maximize the lifespan and functionality of this microscope, regular cleaning and proper storage are recommended. Utilizing its full range of objectives can enhance study results significantly. Always ensure that the microscope is calibrated before use.

Features

30° Inclined, 360° Rotatable Head
High Eyepoint Eyepiece
Variety of Objectives: Achromatic, Plan, Infinity E-Plan, Infinity Plan
Mechanical Stage 145 mm×140mm with 76mmX52mm Travel
Abbe Condenser with Iris Diaphragm
3W-LED Illumination Systems

Technical Specifications

Model		Cata. No.	YR05787	YR05788

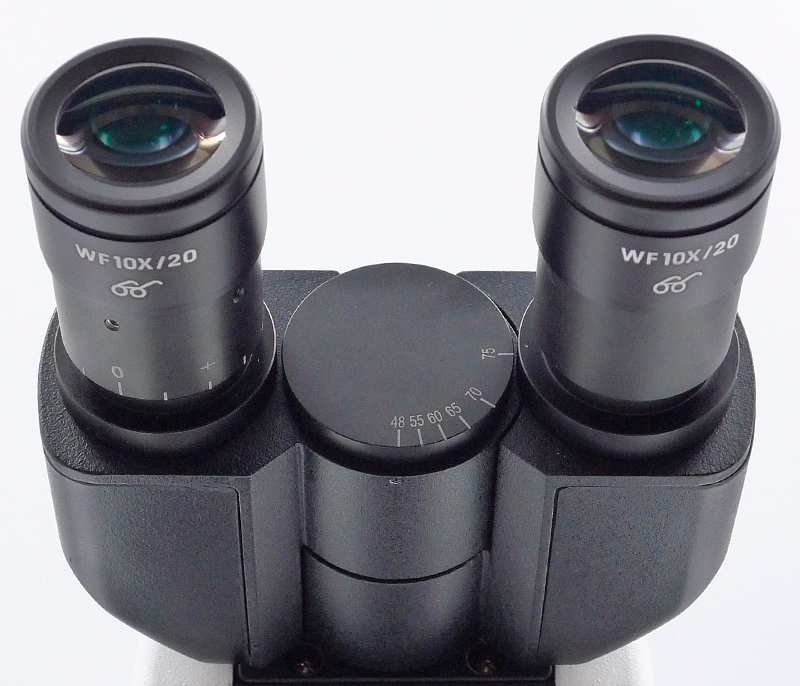

Head	Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm	YR05788-op1	●	○
	Seidentopf Trinocular Head Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Light Split Fixed P20:E80	YR05788-op2	○	●
	WF10X/20mm (High Eyepoint)	YR05788-op3	●●	●●
Nosepiece	Quadruple, Backward	YR05788-op4	●	●
Nosepiece	Quintuple, Backward	YR05788-op5	○	○

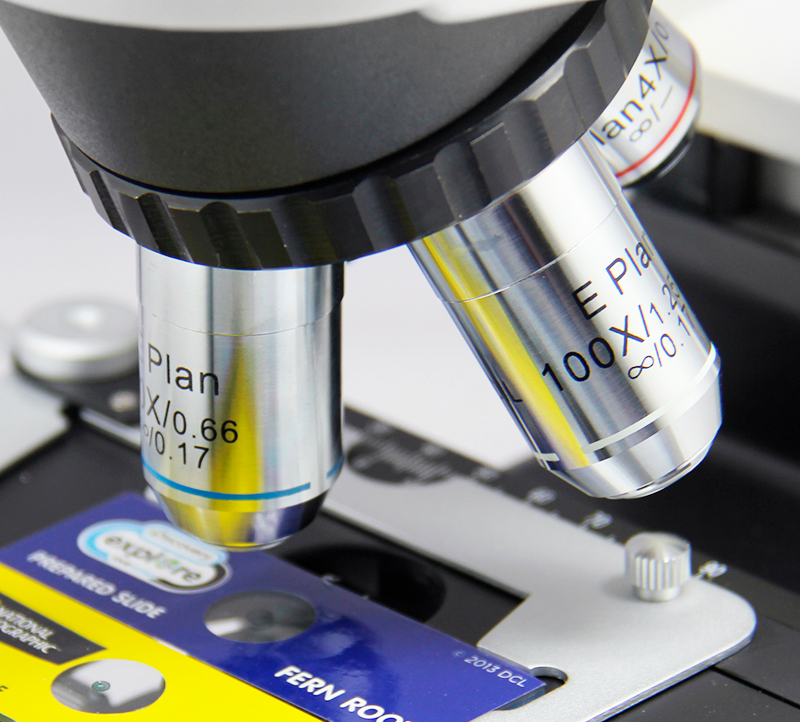

Infinity Plan Objectives	PLAN 2.5x/0.07,W.D.=8.47mm	YR05788-op6	○	○
	PLAN 4X/0.10.W.D.=12.1mm	YR05788-op7	●	●
	PLAN 10X/0.25.W.D.=4.64mm	YR05788-op8	●	●
	PLAN 20X/0.40(S).W.D.=2.41mm	YR05788-op9	○	○
	PLAN 40X/0.66(S).W.D.=0.65mm	YR05788-op10	●	●
	PLAN 60X/0.80(S).W.D.=0.33mm	YR05788-op11	○	○
	PLAN 100X/1.25(S,Oil).W.D.=0.12mm	YR05788-op12	●	●
	PLAN 100X/1.15(S,Water).W.D.=0.19mm	YR05788-op13	○	○

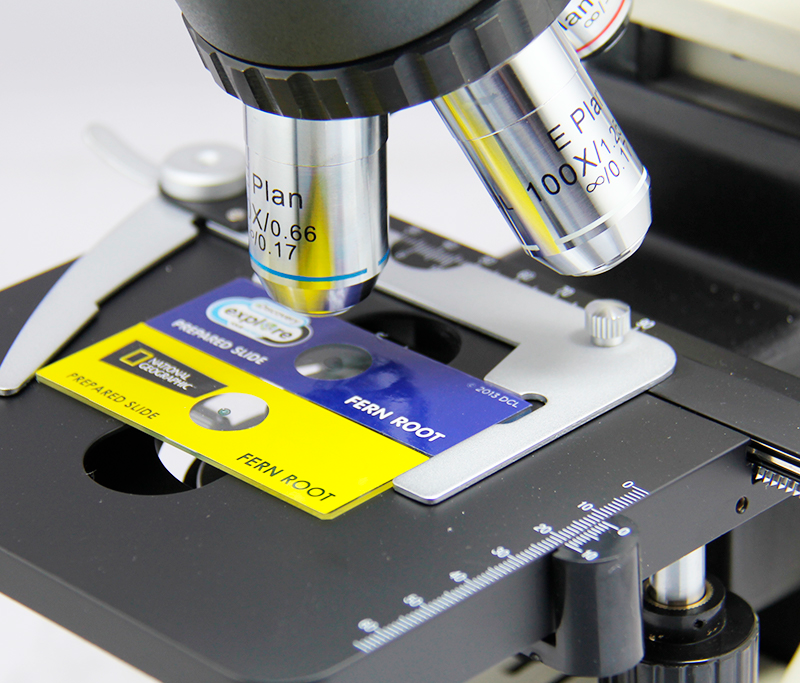

Working Stage	Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder	YR05788-op14	●	●
	Rackless (Integrated) Stage, Size 140×135mm,	YR05788-op15	○	○
	Travel Range 75×35mm, Double Slide Holder		○	–

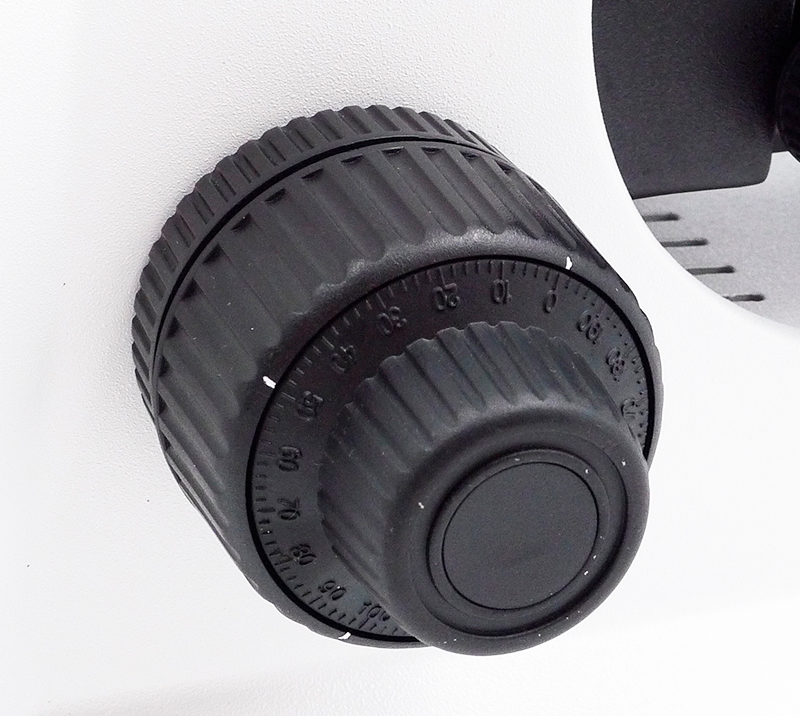

Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division	YR05788-op16	●	●

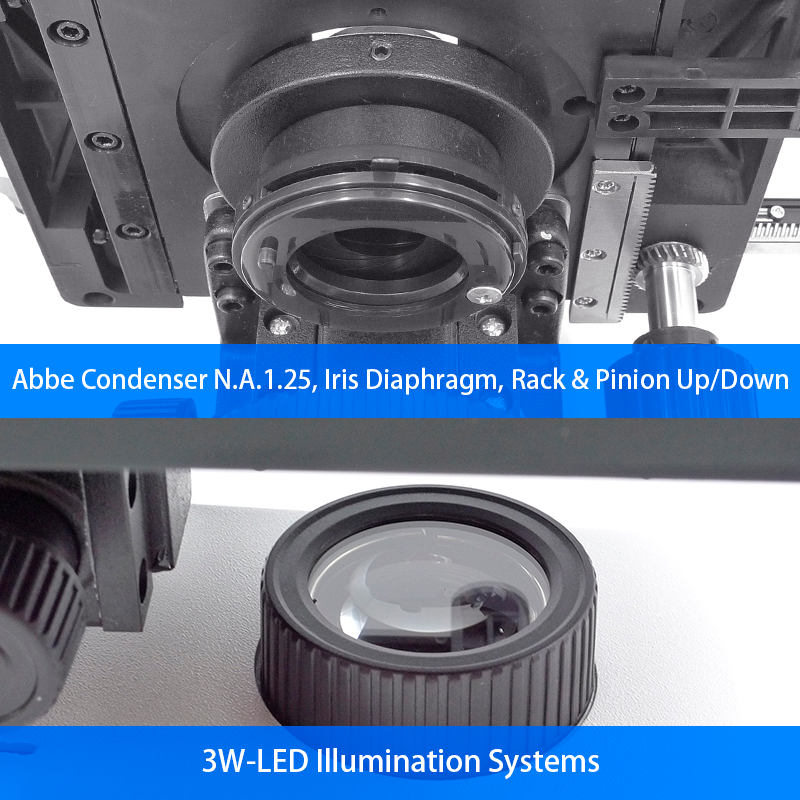

Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder	YR05788-op17	●	●
Illumination	3W-LED Illumination Systems	YR05788-op18	●	●

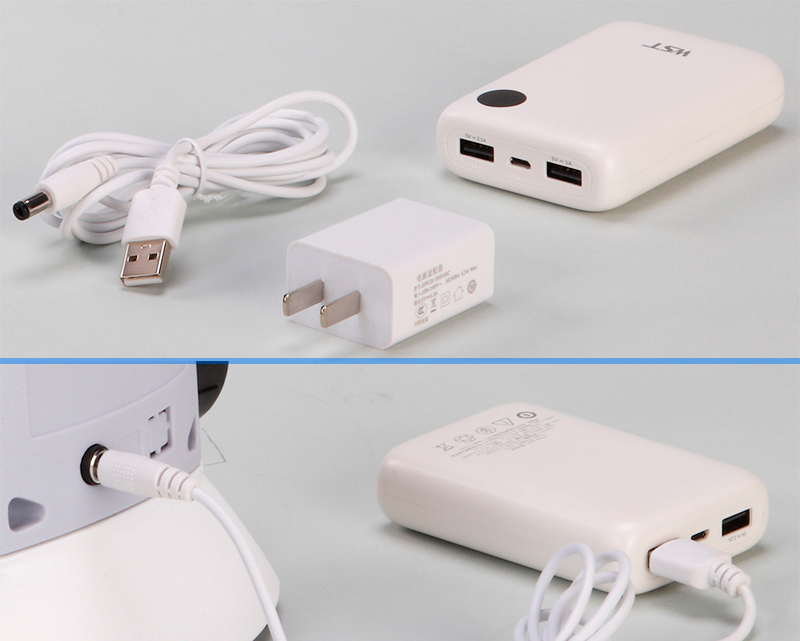

	Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		●	–
	12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V	YR05788-op20	○	○
	6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V	YR05788-op21	○	○
Field Diaphragm	Upgrade To Kohler Illumnation	YR05788-op22	○	○
Filter	Dia.45mm, Blue	YR05788-op23	○	○
	Dia.45mm, Green	YR05788-op24	○	○
	Dia.45mm, Yellow	YR05788-op25	○	○
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	YR05788-op26	○	○
Polarizing	Analyzer + Polarizer Set	YR05788-op27	○	○
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	YR05788-op28	○	○
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	YR05788-op29	○	○
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	YR05788-op30	○	○
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	YR05788-op31	○	○
	Turret Phase Contrast Attachment	YR05788-op32	○	○
	Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter		○	–
Adapter	C-Mount 0.5x, Focus Adjustable	YR05788-op33	○	○
Adapter	C-Mount 0.75x, Focus Adjustable	YR05788-op34	○	○
Mirror	Reflecting Mirror & Holder	YR05788-op35	○	○
Attachment	Wire Winding Device	YR05788-op36	○	○
Package	Carton Size 390×280×450mm, 1 Unit/Ctn
Weight	Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs
Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories

Additional information

Weight	8,5 kg
Model	YR05787, YR05788
