Description

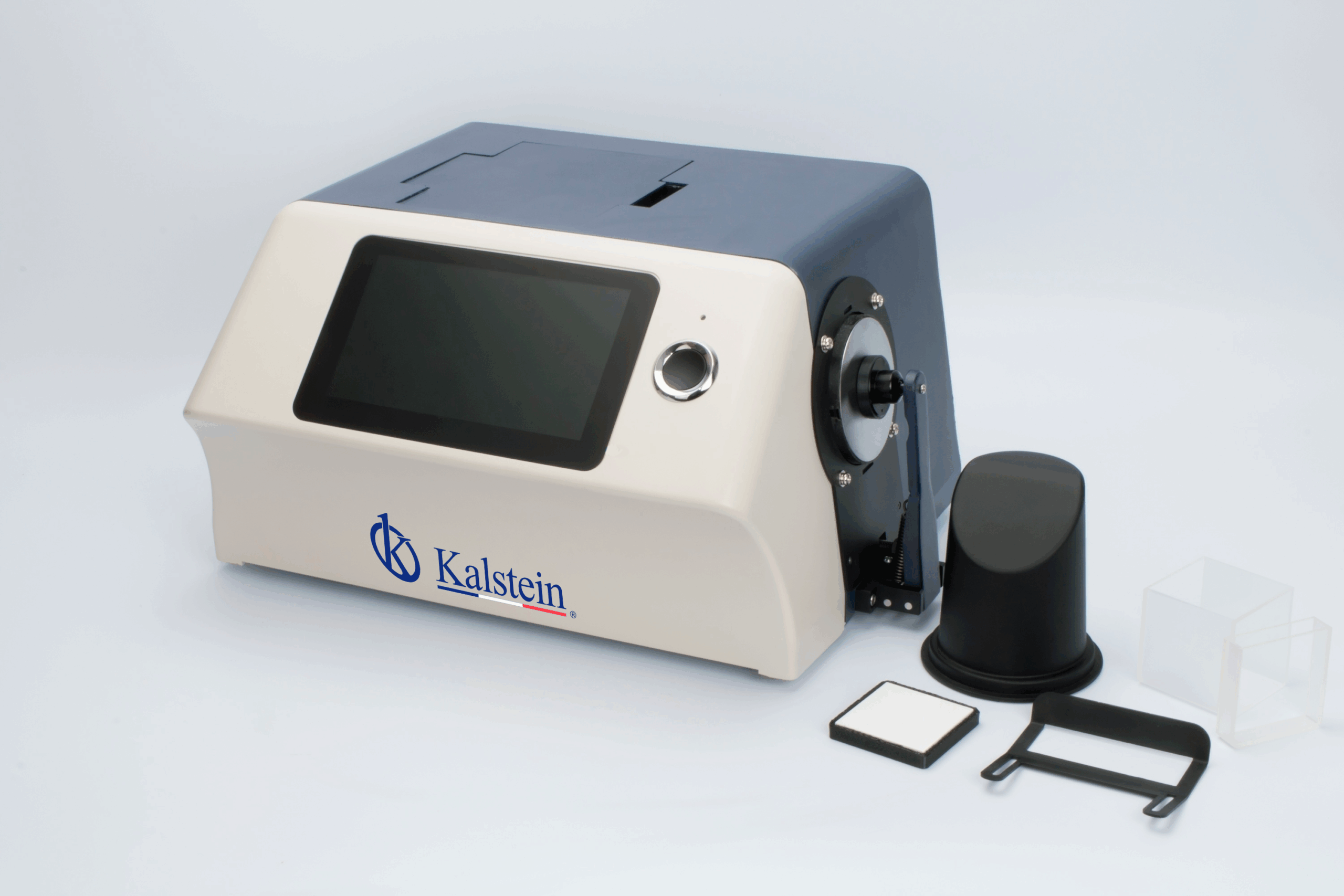

The Benchtop Spectrophotometer YR05478 is a cutting-edge instrument designed to deliver precise color measurement in various color spaces. Equipped with a robust 7-inch TFT Color Capacitive Touch-screen Display, Bluetooth 2.1, and a high-sensitivity Double Array 256 Image Element CMOS Sensor, it measures and expresses diverse color difference formulas with unparalleled accuracy. This spectrophotometer is particularly useful in industries such as plastics, electronics, paints and inks, textiles, garment printing, and other sectors where color transfer and quality control are critical. It features a built-in temperature sensor that monitors and compensates the environment, ensuring impeccable measurement results every time.
Market Price
Spectrophotometers in the market typically range from approximately $9,500 to $10,600 USD, depending on the features and capabilities offered. Our YR05478 spectrophotometer provides high-end specifications at a competitive price, making it a valuable investment for professionals seeking accuracy and reliability in color measurement.
Frequently Asked Questions
- What is the wavelength range for this spectrophotometer? The wavelength range is 360 nm to 780 nm, allowing for comprehensive color analysis, including fluorescent samples.
- Can the device store measurement data? Yes, the spectrophotometer has a large data storage capacity, capable of holding up to 20,000 test results.
- Is there a software to accompany this device? Yes, it comes with a PC software that enhances its functionality, enabling detailed data management and analysis.
- Does it support multiple languages? Yes, the device supports Simplified Chinese, Traditional Chinese, and English.
Advantages and Disadvantages
Advantages: The YR05478 model offers high precision in color measurement thanks to its advanced optical geometry and sensor technology. It is user-friendly with its capacitive touch screen interface and provides versatility with multiple measurement modes.
Disadvantages: While it offers a range of sophisticated functions, it might require some time for users unfamiliar with spectrophotometry to fully utilize all its capabilities. Additionally, its price might be an initial hurdle for smaller businesses.
Product Use in the Field
This spectrophotometer is widely used in quality control labs to ensure products meet exact color specifications. It is particularly beneficial in industries such as textiles and paints where color accuracy is paramount. Operators use it to conduct color differentiation analysis and monitor consistency in product batches, thereby maintaining high quality standards.
Recommendations
For optimal performance, it’s important to follow proper maintenance protocols. Ensure the device is calibrated regularly and stored within recommended environmental conditions. Utilizing the built-in temperature sensor can help avoid discrepancies in measurements due to environmental changes.
Features
- 7-inch TFT Color Capacitive Touch-screen
- Bluetooth 2.1 Connectivity
- 256 Image Element Double Array CMOS Sensor
- Three Measuring Apertures
- Reflective and Transmissive Spectrum
- Built-in Temperature Sensor
- Wavelength Range: 360 nm – 780 nm
- Quality Management and Sample Modes
- Extended Functions via PC Software
Technical Specifications
| Model | YR05478 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle); SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source. Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing); Haze(ASTM D1003), Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | Used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing industries for color transfer and quality control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light (5 million life span) |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective: Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive: Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter) |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration). Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessory | Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. YS6003 quality management software can only be used for data management | |
