Description

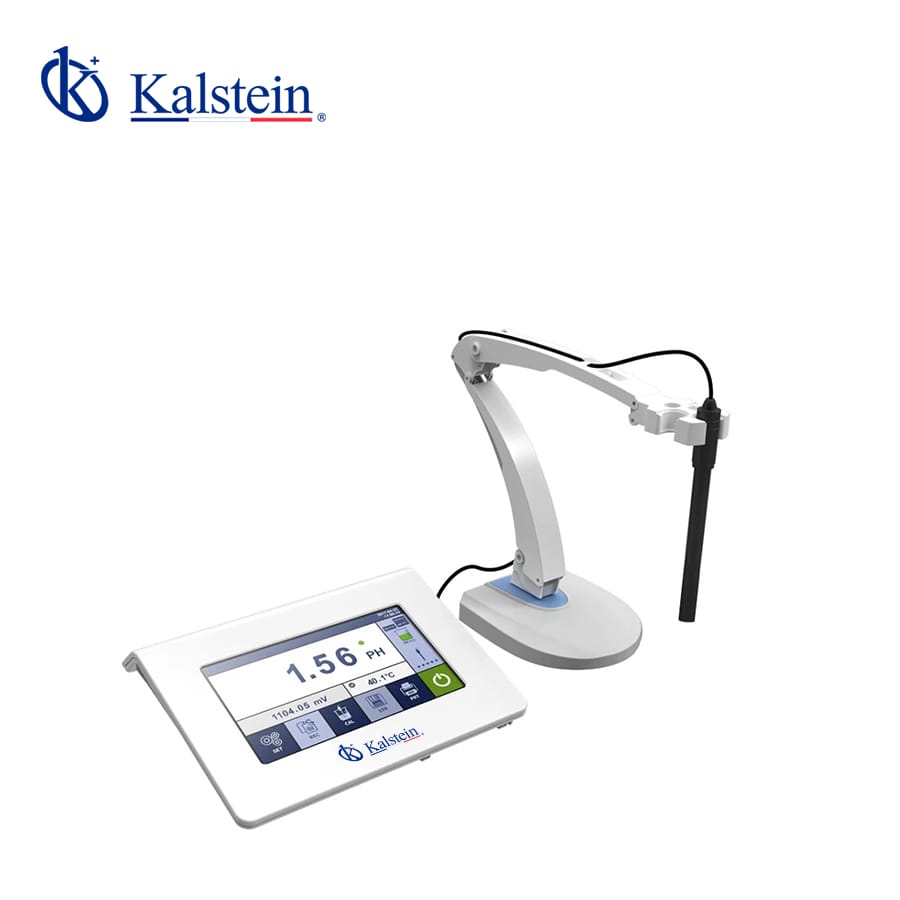

The Benchtop pH/Conductivity/DO Meter YR06385 is a state-of-the-art instrument designed for precision measurement in various laboratory settings. Featuring a vibrant 7-inch colored capacitive touch screen, this device ensures ease of use with high sensitivity and resolution (1024*600). It integrates advanced functionalities like automatic calibration and data storage, facilitated by a built-in microprocessor chip. Whether you are switching between pH, conductivity, or dissolved oxygen (DO) modes, this meter provides accurate and reliable results, making it indispensable for professionals in research and quality control.
Market Price
Understanding the price dynamics of laboratory equipment, the Benchtop pH/Conductivity/DO Meter is positioned competitively within the market. Typically, such devices range from $1,500 to $2,300 USD, offering premium features such as Bluetooth connectivity and USB data transfer that can be directly integrated into your workflow. For precise pricing, we invite you to request a quote or generate an automated quotation via the Kalstein Plus platform.
Frequently Asked Questions
- How does the automatic calibration work? The device supports automatic recognition and calibration for various standard solutions, which enhances accuracy and convenience.
- Is the device easy to use for beginners? Yes, with its intuitive touch screen and straightforward interface, even those new to the equipment can operate it effectively after minimal training.
- Can I connect the meter to my computer? Absolutely, it supports USB and Bluetooth connections for seamless data transfer and analysis.
Advantages and Disadvantages
Advantages:
- High-resolution touch screen for efficient operation.
- Versatile measurement capabilities (pH, Conductivity, DO).
- Comprehensive data storage and transfer options.
- Automatic calibration and compensation features.
Disadvantages:
- Initial setup may require technical understanding.
- Premium pricing compared to basic models.
Field Usage
The YR06385 meter is ideal for laboratories conducting water quality analyses, environmental testing, and chemical research. Its robust design and precise measurement capabilities ensure it meets the demands of various real-world applications, from academic research to industrial compliance monitoring.
Recommendations
To extend the longevity of your Benchtop pH/Conductivity/DO Meter, regular maintenance and calibration are recommended. Ensure electrodes are kept clean and dry when not in use, and always use the specified standard solutions for calibration to maintain accuracy.
Features
- 7-inch colored capacitive touch screen.
- Automatic calibration and intelligent data storage.
- Bluetooth and USB connectivity for data transfer.
- Real-time data transfer to mobile devices.
- Automatic temperature, salinity, and pressure compensation.
- High precision and stability in measurements.
Technical Specifications
| Model | YR06385 | |
| pH | Measurement range | (-1.999 ~ 19.999)pH |
| Resolution | 0.1/0.01/0.001 pH | |
| Accuracy | Electrode: ±0.002 pH, Meter: ±0.01 pH | |
| Input current | ≤1×10-12 A | |
| Input impedance | ≥3×1012 Ω | |
| Stability | ±0.002 pH/3h | |
| Temperature compensation | (0 ~ 100)ºC, auto or manual | |
| mV | Measurement range | -1999.9mV ~ 0 ~ 1999.9mV |
| Resolution | 0.1 mV | |
| Accuracy | ±0.03% FS | |
| Conductivity | Measuring range | Conductivity: |
| (0.00~20.00)μS/cm | ||
| (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm | ||
| (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| (200~2000)mS/cm(K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation range | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
| DO | Measuring range | (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC (automatic) | |
| Salinity compensation | (0 ~ 45) ppt (automatic) | |
| Pressure compensation | (80 ~ 105) kPa (automatic) | |
| Automatic calibration | Air saturated by water; water saturated by air | |
| Electrode type | Polarographic | |
| Temperature | Range | (-10 ~ 110)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
| Other Parameters | Display | 7-inch colored capacitive touch screen |
| Data storage | 2000 sets | |
| Power | 12V (110-220, 50-60Hz adapter) | |
| Communication interface | USB, RS232, Bluetooth | |
| Dimensions&Weight | 240×170×70mm/600g | |
| Working Conditions | Temperature | 15 ~ 30 ºC |
| Humidity | ≤85% | |
| IP grade | IP54 | |
