Description

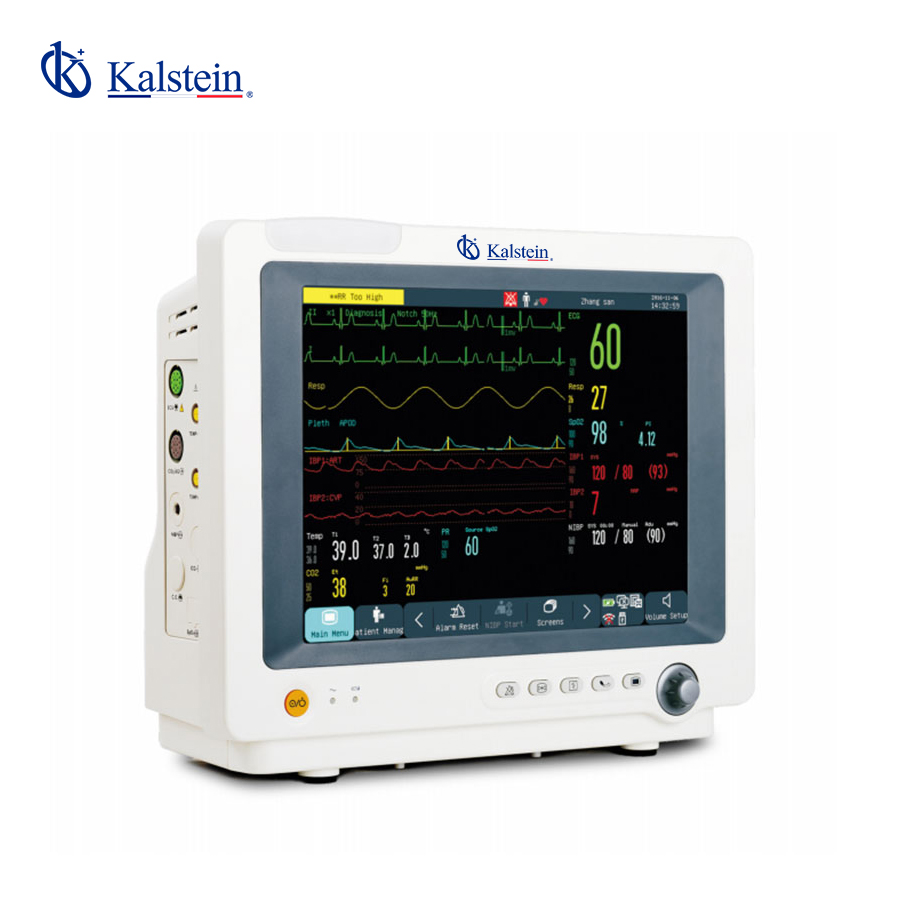

The Bedside Monitor YR02173 is an advanced medical monitoring solution designed to provide accurate and reliable patient data at your fingertips. Equipped with a 12.1-inch touch screen, it offers seamless navigation for healthcare professionals. Featuring a comprehensive range of parameters, including 5-lead ECG, RESP, Temperature Monitoring (Single Channel), compeN SpO2, Non-Invasive Blood Pressure (NIBP), and Heart Rate (HR), this bedside monitor ensures precision in patient care. Enhanced with Dual-IBP, EtCO2, Anaesthesia Gas monitoring, ICG, Cardiac Output (C.O.), BIS, and advanced SpO2 options (Nellcor/Masimo), along with a thermal recorder and dual temperature readings, it is adaptable for varied clinical requirements. To top it off, it provides flexible installation with options for a trolley or a wall mount.
Market Price
The Bedside Monitor YR02173, with its sophisticated features, is priced competitively in the market. Typically, similar high-end patient monitors are available in the price range of $2000 to $2800, offering comprehensive multi-parameter monitoring solutions suitable for diverse medical settings.
Frequently Asked Questions
What is the screen size of the Bedside Monitor YR02173?
The monitor features a 12.1-inch touch screen for easy operation and data display.
Can the monitor be mounted on a wall?
Yes, the monitor can be mounted on a wall, and it also comes with a trolley option for increased portability.
Does it support dual temperature monitoring?
Yes, the device is capable of monitoring dual temperature channels, enhancing its versatility in patient monitoring.
Advantages and Disadvantages
The Bedside Monitor YR02173 stands out for its user-friendly touch screen display and a wide range of monitoring capabilities, making it ideal for critical care environments. Its adaptability with various SpO2 technologies and comprehensive parameter coverage provides an edge over simpler models. However, the extensive feature set may present a learning curve for users unfamiliar with advanced medical equipment.
Product Use in the Field
This bedside monitor is ideal for use in intensive care units, emergency rooms, and operating theaters where constant patient monitoring is critical. Its portable design, with options for a trolley or wall mounting, allows for flexibility and convenience in different clinical settings.
Recommendations
It is recommended to ensure regular calibration of the device and to perform routine checks on all sensors and connections to maintain optimal performance. Utilizing the Kalstein Plus platform can help streamline procurement and ensure prompt maintenance services.
Features
- 12.1-inch touchscreen for easy navigation
- 5-lead ECG and comprehensive parameter coverage
- Advanced SpO2 options (Nellcor/Masimo)
- Dual temperature and Dual-IBP monitoring
- EtCO2 and Anaesthesia Gas monitoring
- Flexible installation: Trolley and Wall mount options
Technical Specifications
| Model | YR02173 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 15~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | About 1 Second. | |
| Average Time Constant | <10 Second. | |
